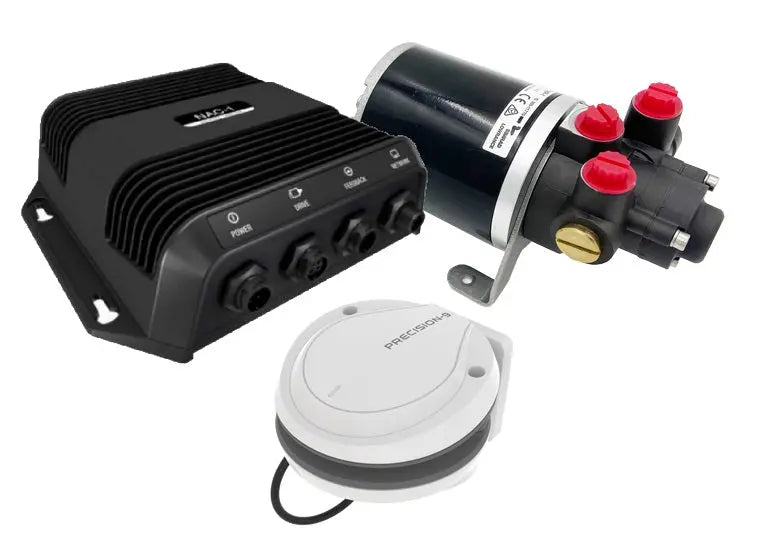

Simrad NAC-1 Outboard Pilot Hydraulic Pack, MKII PUMP-1 Includes Precision-9

Comprehensive Overview of the Simrad NAC-1 Outboard Pilot Hydraulic Pack

Simrad NAC-1 Outboard Pilot Hydraulic Pack, MKII PUMP-1 Includes Precision-9

Simrad Outboard Pilot Hydraulic Pack with MKII Pump-1 AND Precision-9 Heading Sensor

Model: 000-15951-001

• Easy to Install
• Dash-mount button for one-touch Auto/Standby activation
• Steer to Heading, Course or Route
• Automatic Turn Patters
• NAC-1 Plug & Socket connectors - no screw terminals or wire stripping necessary
• High efficiency, super-quiet 0.8L hydraulic gear pump (Pump-1 MKII)
• Add a second Helm station to a boat using the MFD Power steer commands - no need for additional hydraulics + steering wheel.

Outboard Pilot is an MFD Autopilot add-on system designed for boats up to 30ft with single outboard motor. System packs contain everything you need to fit an Autopilot to Hydraulic or Cable steer outboard motors.

Specifications

Supply Voltag12vDC

Max Drive output
8A continuous, 16 Amp peak

Interfaces

Network
1xMicroC

Feedback
Variable voltage from HELM -1 drive unit

Drive output
To PUMP-1 or HELM-1

What's in the Box:

• NAC-1 AUTOPILOT COMPUTER
• PUMP-1 - 12V 0.8L For outboard pilot
• Autopilot pump fitting kit for ORB steering system
• Auto-Stby Button - Metal
• N2KEXT-2RD - 0.61 m (2-ft) NMEA 2000(R) cable
• N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000(R) cable
• N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000(R) cable
• TR-120-KIT - Set of 1 male and 1 female NMEA 2000(R) terminators
• MICRO-C Power cable only
• Low loss NMEA2000 4-way joiner
• Precision-9 Compass

Advanced Hydraulic Control with the Simrad NAC-1

The Simrad NAC-1 is a state-of-the-art outboard pilot hydraulic pack designed to deliver precise steering control for marine vessels. Featuring the MKII PUMP-1, this system enhances the responsiveness and reliability of steering even in challenging sea conditions. The hydraulic pump ensures smooth operation by providing consistent pressure and flow, which improves vessel handling and safety. Integrating seamlessly with Simrad’s advanced navigation systems, the NAC-1 represents a robust solution for professional and recreational sailors seeking superior performance from their outboard steering mechanisms.

Integration of Precision-9 for Enhanced Autopilot Accuracy

Included with the Simrad NAC-1 hydraulic pack is the Precision-9 compass sensor, known for its exceptional accuracy and reliability. The Precision-9 ensures that the autopilot system maintains an exact heading with minimal deviation, allowing captains to trust the system even during long passages. Its advanced reference technology compensates effectively for magnetic interference and vessel movement, leading to optimized navigation precision. This integration makes the Simrad NAC-1 package an all-encompassing solution for vessel control and safety, reducing the need for constant manual steering adjustments.

Durability and Ease of Installation for Marine Conditions

Simrad has engineered the NAC-1 Outboard Pilot Hydraulic Pack to withstand harsh marine environments with durable materials and waterproof housing. The MKII PUMP-1 is built for longevity, reducing maintenance needs while performing reliably in both saltwater and freshwater applications. Installation is user-friendly, as the system is compatible with various outboard engines and can be integrated smoothly into existing hydraulic steering configurations. With detailed instructions and professional support, vessel owners benefit from minimized downtime and rapid deployment of this essential autopilot component.
