Simrad NAC-1 Outboard Pilot Hydraulic Pack with MKII Pump and Point-1 GPS Sensor

Simrad NAC-1 Outboard Pilot Hydraulic Pack, MKII PUMP-1 Includes Point-1 AP

The Simrad NAC-1 Outboard Pilot Hydraulic Pack with MKII Pump (Part Number 000-15952-001) offers a comprehensive autopilot solution designed for boats up to 30 feet with a single outboard motor. This system simplifies installation and operation, featuring a dash-mount button for easy one-touch Auto/Standby activation. The autopilot enables steer-to-heading, course, or route modes, providing versatile navigation options for various sailing conditions. Automatic turn patterns facilitate smooth and precise navigation, making it ideal for both recreational and fishing vessels.
Built with user convenience in mind, the system uses NAC-1 plug & socket connectors that eliminate the need for screw terminals or wire stripping, streamlining setup and maintenance. The core component, the high-efficiency, super-quiet 0.8L hydraulic gear pump (Pump-1 MKII), ensures reliable hydraulic operation while maintaining minimal noise levels. Additionally, the system supports adding a second helm station via MFD power steer commands—no additional hydraulics or steering wheel modifications are necessary—allowing for flexible steering configurations.

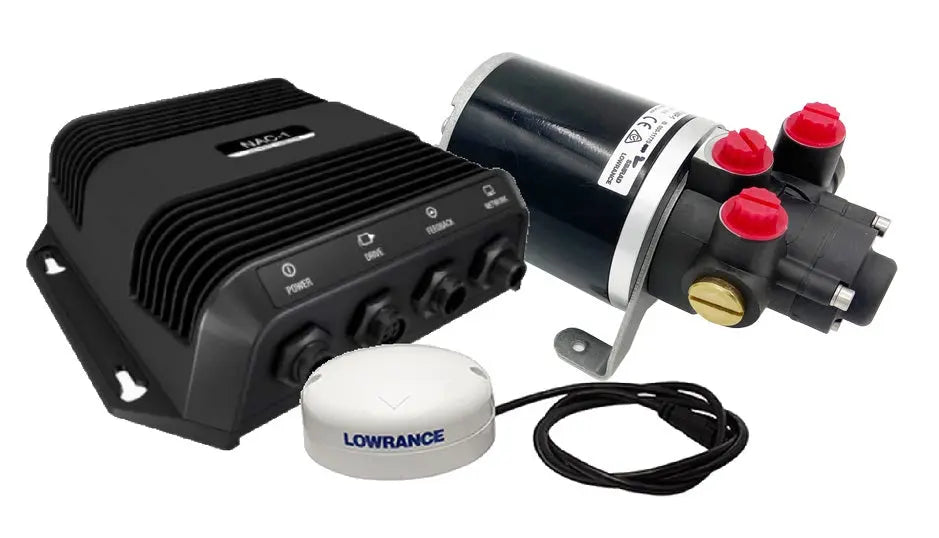

The system is powered by a 12V DC supply and delivers up to 8A continuous drive output, with peak output reaching 16A. Interfaces include a MicroC network for seamless integration with existing electronics, and feedback is managed through variable voltage from the helm or drive unit. The package includes all necessary components, such as the NAC-1 autopilot computer, Pump-1 hydraulic pump, autopilot fitting kit for outboard steering systems, auto-standby button, NMEA 2000 cables of various lengths, NMEA 2000 terminators, a power cable, low-loss NMEA 2000 joiner, and the Point-1 autopilot heading and GPS sensor.
Designed for ease of installation and operation, the Simrad NAC-1 Outboard Pilot Hydraulic Pack ensures precise navigation and control for small outboard-powered boats. Its compact design, robust components, and integrated features make it an excellent choice for boaters seeking advanced autopilot capabilities with minimal hassle. The system is compliant with Prop 65 standards, with an expected availability date of May 21, 2026, ensuring safety and regulatory adherence for users in California and beyond.

Features:

• Easy to install with plug & socket connectors, eliminating the need for wire stripping or screw terminals

• Dash-mount button allows quick activation of Auto/Standby modes for convenient operation

• Supports steer-to-heading, course, or route navigation modes for versatile control

• Automatic turn patterns facilitate smooth and accurate navigation turns

• High-efficiency, super-quiet 0.8L hydraulic gear pump (Pump-1 MKII) ensures reliable performance

• Add a second helm station using MFD power steer commands without additional hydraulics or steering wheel modifications

• Includes comprehensive components: autopilot computer, hydraulic pump, fitting kit, cables, and GPS sensor

• Compatible with single outboard motors up to 30 feet, ideal for recreational and fishing boats

• Network interface via MicroC for seamless integration with existing marine electronics

• Power supply: 12V DC with up to 8A continuous drive output
