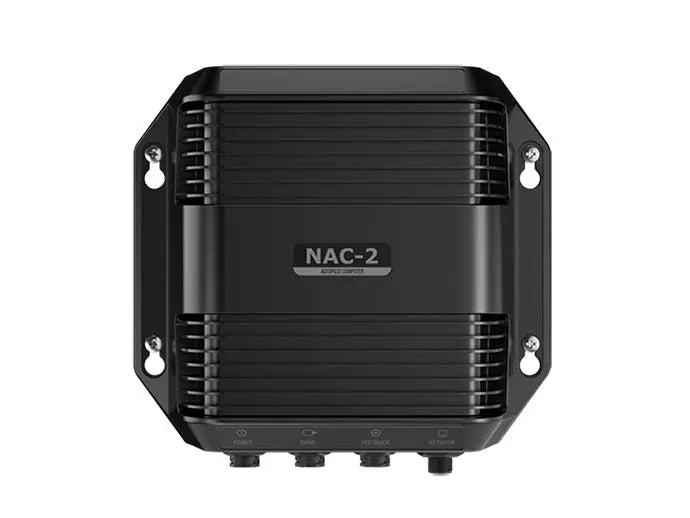

Simrad NAC-2 Low Current Autopilot Computer

Simrad NAC-2 Low Current Autopilot Computer

Model: 000-13249-001
UPC: 9420024154380

• Recommended for boats up to 10 metres (33 feet) in length
• Plug & Play installation
• Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
• 12 or 24 V DC input 8A continuous output, 12A peak
• Solenoid output capable
• 3 A clutch output
• Optional Auto/Standby Switch
• Drive & Processing circuitry and components identical to commercial autopilots
• Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
• Rudder feedback options: NMEA2000 Rudder Feedback (RF25), Resistive Rudder -Feedback. New SD10 Mechanical Drive plugs straight in to drive and RFU connectors

The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).

Specifications

Waterproof rating
Splashproof, IPx5

Power
9-31.2 vDC

Power consumption
140mA Plus drive load

Performance
Drive 8 amps, 12 Amps fo r1 second
Interfaces
Network
1 Micro C NMEA2000

Feedback
Variable voltage/resistive 0-5V

Drive Output
To PUMP-1 or HELM-1

Powersupply
9-31.2 V DC

Solenoid
12/24V DC, common, load range 10mA to 10A, off current <1mA

Clutch
12/24V DC, min 10mA, max 3A

What's in the Box:

• NAC-2
• N2KEXT-2RD - 0.61 m (2-ft) NMEA
• N2K-T-RD T
