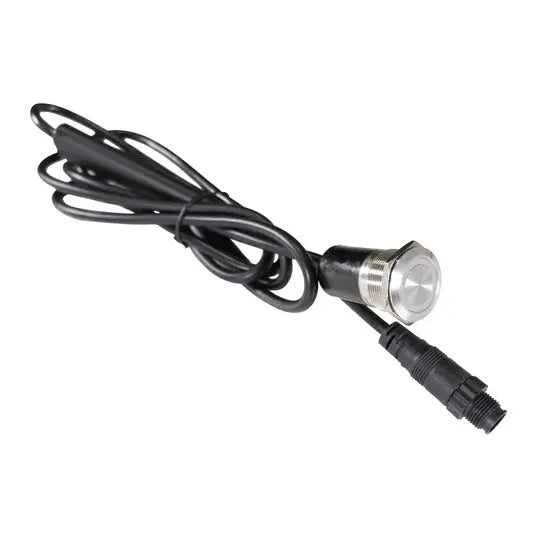

Simrad NMEA2000 Remote MOB Button Model 000-15940-001 for Emergency Safety and Navigation

The Simrad NMEA2000 Remote MOB Button (Part Number 000-15940-001) is an essential safety device designed for quick and reliable man-overboard (MOB) response on marine vessels. This plug 'n play device simplifies installation and seamlessly integrates with NMEA2000(R) networks, supporting PGN 127233 for MOB notifications. Compatible with a variety of multifunction displays and chartplotters including Lowrance HDS(R) series, Simrad(R), and B&G(R), it ensures broad compatibility across popular marine electronics brands. Once activated, the MOB button automatically creates a waypoint at the MOB location and transmits relevant navigation data to assist in quick rescue efforts. For vessels equipped with H5000 CPUs, the system can calculate a dead reckoned position of the MOB, enhancing safety measures and rescue accuracy. The device features dedicated graphical MOB pages on TritonTM 2, H5000, and Nemesis(R) displays, providing clear visual cues during emergencies. Its IP67 waterproof rating and operating temperature range of -15°C to +55°C (-5°F to 131°F) make it suitable for harsh marine environments. The device operates on 12 V DC power, consuming minimal energy, and includes reverse polarity protection to prevent electrical issues. The package contains the MOB button and a Micro-C T-connector (N2K-T-RD), ensuring a straightforward installation process. Conforming to World Sailing Offshore Safety requirements, the Simrad MOB button is a reliable addition to any safety-conscious vessel, facilitating rapid response in man-overboard situations and enhancing onboard safety protocols.

Features:

• Easy to install with plug 'n play setup

• Supports NMEA2000(R) MOB notification standard PGN 127233

• Compatible with Lowrance HDS(R), Simrad(R), and B&G(R) multifunction displays

• Automatically creates MOB waypoint and transmits navigation data

• Dedicated graphical MOB pages on TritonTM 2, H5000, and Nemesis(R) displays

• When used with an H5000 CPU, calculates dead reckoned MOB position

• Waterproof rating: IP67 for durability in marine environments

• Operates on 12 V DC power with low power consumption

• Includes reverse polarity protection for electrical safety

• Conforms with World Sailing Offshore Safety requirements
