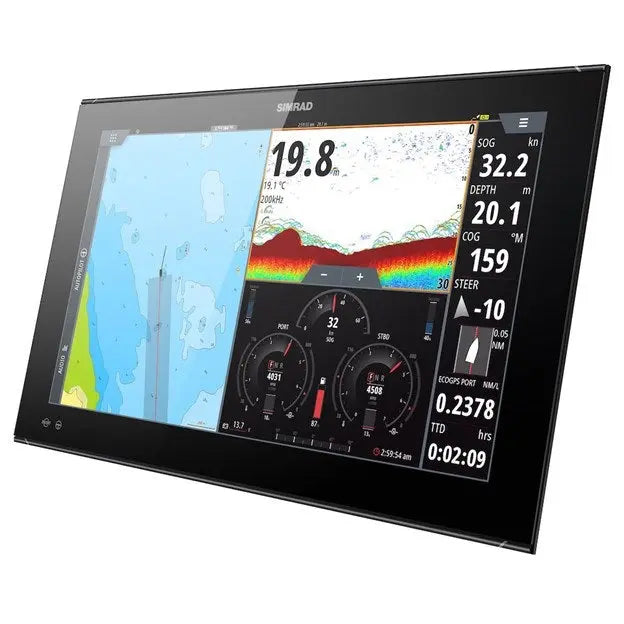

Simrad NSO evo3S 24in MFD System Pack

Simrad NSO evo3S 24in MFD System Pack

Simrad NSO evo3S 24" MFD System Pack

Model: 000-15128-001

• iMX 8 Integrated six-core processor for superior performance


• Ultra-sharp, Full HD display


• Seamless touchscreen control of your entire connected SIMRAD® system


• Low-profile glass helm styling


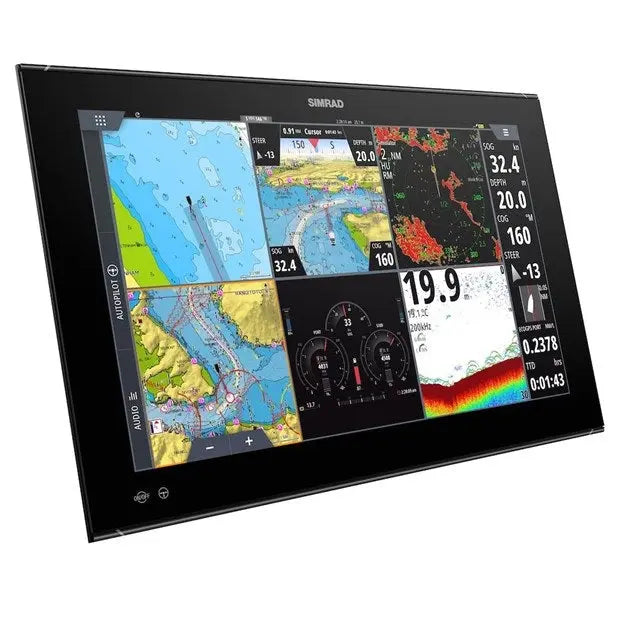

• Extended visibility with six-panel split screen option


• Connect with smartphones, tablets, and internet hotspots


• Integrate with an extensive range of 3rd party technologies

Every NSO evo3S display features a iMX 8 integrated six-core processor delivering category leading response times for incredibly smooth screen transitions. With up to twice the CPU performance, you have instant access to the information you need, as you need it, no matter the conditions. Create your own custom helm layouts to suit any activity, and switch seamlessly between layouts in an instant. Low-profile glass helm styling conceals and protects NSO evo3’s powerful core, and complements any helm design from ultra-modern to timeless classic.

NSO evo3S delivers the ultimate view with an ultra-bright display, available in 16, 19, or 24-inch widescreen sizes. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. Experience stunning clarity with Full HD resolution, and the option to combine up to six panels in a split-screen layout. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar at a touch.

Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, and integration with an extensive range of 3rd party technologies.

Specifications

Physical

Dimensions 24" WxHxD
625.1 x 386 x 83 mm (24.61 x 15.29 x 3.27") With bracket: 648.9 x 388.5 x 212.5 mm (25.55 x 15.29 x 8.37")

Weight 24"
7.8 kg (17.2 lbs.)

Compass safe distance
50 cm (19.7")

Mounting options
Panel or bracket mount (use optional heavy duty bracket (000-13547-001)

Environmental

Operating temperature range
-15°C to +55°C (5° F to 131° F)

Storage temperature range
-20°C to +60°C (4°F to 140°F)

Waterproof rating
IPX6 on the font (when panel mounted correctly with only the front exposed). Rear not waterproof Shock-CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Electrical

Supply Voltage
12/24 V DC (10 - 31.2 V DC min - max)

Power consumption (max) 24"
80 W +- 4 W

Fuse rating 24
10 A @ 12 V DC

Connectivity

Ethernet
3 x RJ 45, 1 Mbit ports. Adapt to 5 pin yellow using Adapter cable 000-11246-001

Wireless
Internal 802.11b/g/n

NMEA2000
1 x NMEA 2000 Micro-C port, 1 LEN

J1939
1 x J1939 Micro-C port

NMEA 0183
2x NMEA0183 (IEC61162-1), 2x NMEA0183-HS (IEC61162-2)

Composite Video In
2x composite video (BNC)

HDMI In
1x high definition video (1080p, HDCP 1.4, HDMI-A) (Note: will not pass through HDMI, HDCP from HDMI input port)

Internal GPS
NO

Storage

External storage
1 x Micro SD card slot or use optional USB dash mount card reader with 2 x Micro SD slots. Max. card size 32GB. Larger if formatted to NTFS

Internal storage
16GB

Display

Screen resolution (all sizes)
1920x1080

Brightness
1200 nits

Screen size and type 24
MVA 24" optically bonded TFT

Viewing angles
80° top/bottom, 80° left/right

Control
Full touch screen (multi-touch), OP50 remote controllers

Applications

Cartography
Compatible with C-MAP (MAX N, MAX N+), Insight, Navionics (Gold, NAV+ Platinum+) , NV Digital (Raster US Charts): CMAP enhanced of U.S.A built in (Rest of world charts required. world base map only)

Radar
Compatible with Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar

Sonar
Compatible with: SonarHub, S5100, StructureScan3D network echo sounder modules

Autopilot Integration
Full auto pilot control and commissioning

Autopilot steering modes
Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)

Autopilot manoeuvres turn patterns
U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking

Weather
SiriusXM via WM-3 (USA only), GRIB

AIS
Receive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K)

Multimedia
via SonicHub2, FusionLink, *Sirius, **JL Audio. (*USA only, **AUST. & NZ only)

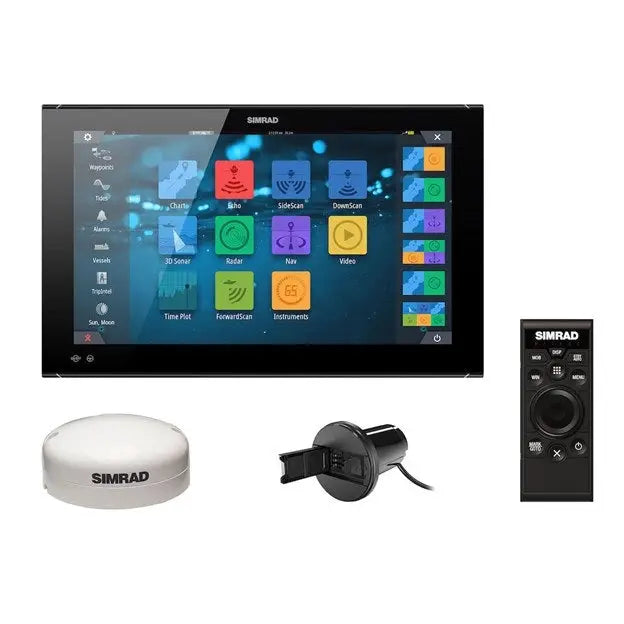

What's in the Box:

• NSO evo3S MFD 24"


• OP50 Remote - Portrait


• MI10 MicroSD Card Reader


• GS25 GPS Antenna
