Simrad NSS9 evo3s Combo MFD With C-Map US Enhanced Map

Discover the Advanced Features of the Simrad NSS9 evo3s Combo MFD

Simrad NSS9 evo3s Combo MFD With C-Map US Enhanced Map

Simrad NSS evo3S 9in Display

Model: 000-15402-001

• High Resolution, High Bright, SolarMax IPS Displays
• Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
• Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images
• Take another step forward with Simrad's premium network modules for the ultimate offshore performance
• Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control
• Low profile glass dash styling
• Built in Wi-Fi connectivity
• Next Generation Processor
• SolarMAX IPS Display Technology
• Multi-touch screen and keypad hybrid control
• Built-in Advanced Echosounder

NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved

Specifications

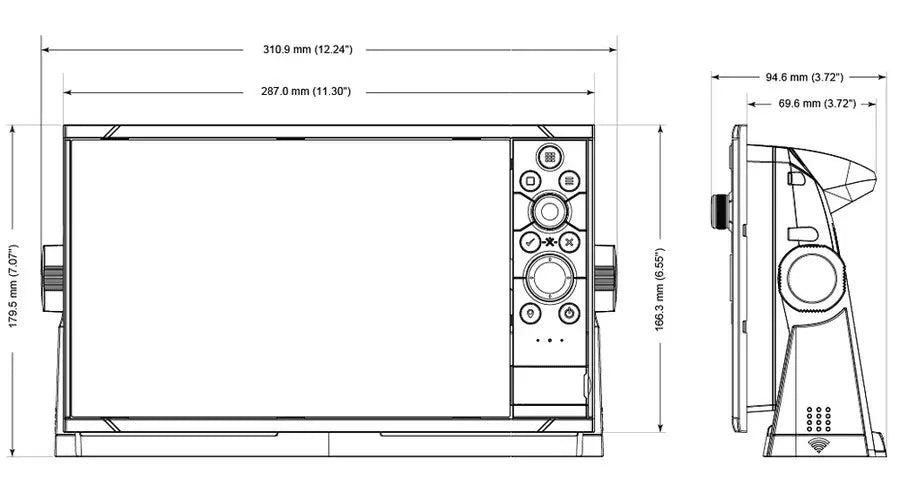

Dimensions287 x 166 x 90 mm (11.30 x 6.55 x 3.50)with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72)

Weight
1.41kg/3.11lb

Environmental

Operating temperature range
-15 degC to +55 degC (5 deg F to 131 deg F)

Environment Shock Vibration
100

High-Performance Simrad Multifunction Display

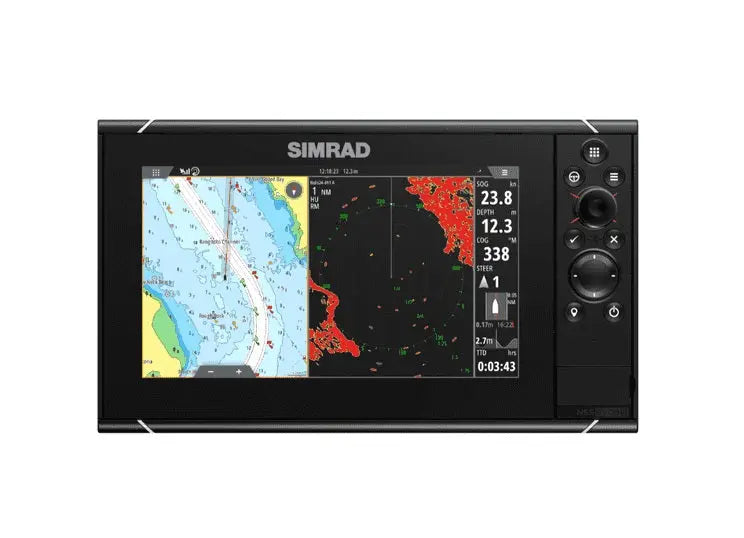

The Simrad NSS9 evo3s Combo MFD is designed to deliver exceptional marine navigation capabilities with a 9-inch touchscreen display. Combining speed and clarity, it integrates advanced sonar technologies and radar compatibility for comprehensive situational awareness. The intuitive interface allows effortless control of boat systems and charts, making it an indispensable tool for both recreational and professional boaters. Simrad's robust hardware ensures durability and reliability even in the harshest marine environments.

Seamless Integration With C-Map US Enhanced Maps

This Simrad model comes preloaded with C-Map US Enhanced Maps, offering detailed and precise cartography for US waters. The maps feature high-resolution bathymetry, depth contours, and critical navigation aids, ensuring safe and efficient route planning. With features like seamless auto-routing and real-time chart updates, users gain better insight and control over their voyage, enhancing safety and confidence while exploring unfamiliar waters.

Advanced Connectivity and Expandability Options

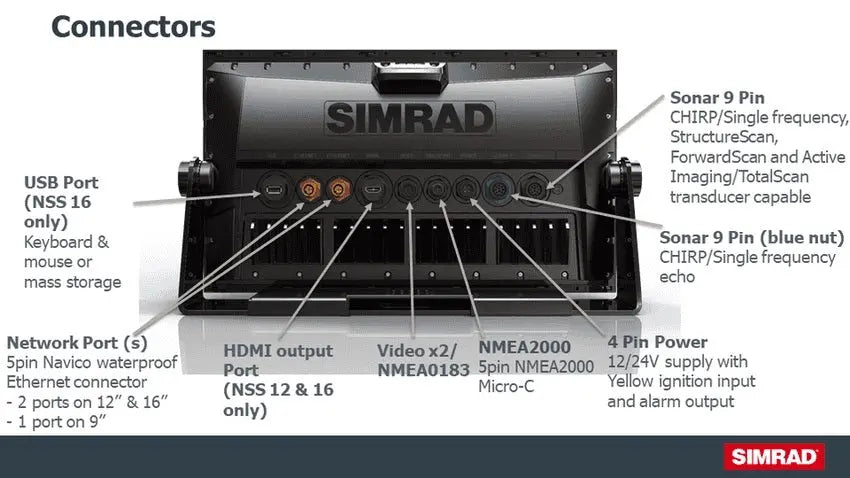

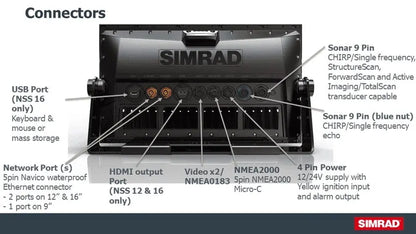

The Simrad NSS9 evo3s offers multiple connectivity options including NMEA 2000, Ethernet, and Wi-Fi, enabling easy integration with other onboard electronics such as radar, autopilots, and sonar modules. This versatility allows users to customize and expand their navigation system as needs evolve. Additionally, built-in Bluetooth and smartphone app compatibility provide convenient remote access and monitoring, making the NSS9 evo3s a future-proof choice for sophisticated boat electronics setup.
