Screw the jam nut onto the 1-inch pole, then screw the pole mount bracket onto the pole. Do not tighten the pole mount to more than 5.4 Nm (4 lbs-ft).
Feed the cable either through the hollow pole or through the opening in the pole mount bracket.
Connect the NMEA 2000 drop cable to the HS75, then secure the pole mount bracket to the HS75 using the supplied mounting hardware. Tighten to a torque of 11 - 13 Nm (8 - 10 lbs-ft). The maximum thread depth engagement must be no more than 12 mm (0.50").
Verify the orientation of the HS75, then tighten the jam nut to the bottom of the pole mount

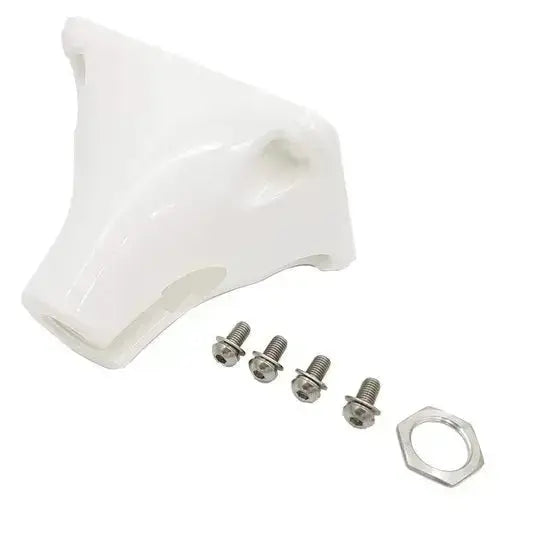

Pole Mount Bracket for HS75 - Standard 1'' 14TPI threads.
