Simrad PUMP-5 MKII 24v Reversible Hydraulic Pump 17.7 - 58.5cui

Simrad PUMP-5 MKII 24v Reversible Hydraulic Pump Overview

Simrad PUMP-5 MKII 24v Reversible Hydraulic Pump 17.7 - 58.5cui

Sirmad Pump-5 MKII 24v Hydraulic 3.0L Pumpset

Model: 000-15447-002

• Reversible Pump
• High Flow Rate
• 24V DC
• 290-960 cc
• 17.7 - 58.5 cu. in.
• SteadySteer compatible.

PUMP-5: 24V DC: Reversible hydraulic gear pump. 3.0L (183 cui) / min. For cylinder displacement of 290 - 960 cc (17.7 - 58.5 cu. in.). O-Ring Boss (ORB) connections. Includes 3 x ORB-5 to 9/16 UNF fittings. SteadySteer compatible. (NAC-3 / AC42 required).

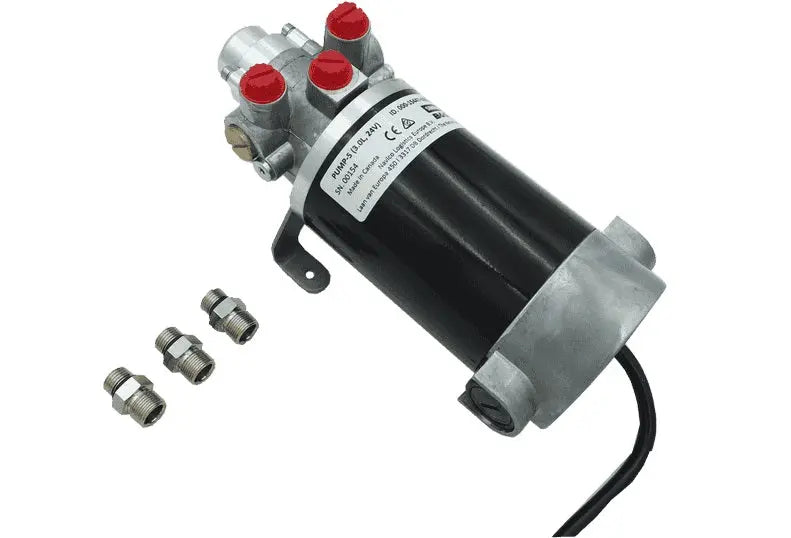

What's in the Box:

• Pump-5 24v
• 3 x ORB-5 to 9/16 UNF fittings

Advanced Performance and Reliability

The Simrad PUMP-5 MKII 24v reversible hydraulic pump offers advanced performance tailored for marine and industrial hydraulic applications. With a displacement range from 17.7 to 58.5 cubic inches per revolution (cui), this pump can handle diverse operational demands while maintaining efficient power consumption. Its reversible motor design enhances operational flexibility, allowing it to change direction seamlessly. Manufactured with durable materials to withstand harsh environments, the Simrad PUMP-5 MKII ensures longevity and reliable performance even under continuous heavy-duty use.

Versatile 24v Electrical System Compatibility

Designed for 24v electrical systems, the Simrad PUMP-5 MKII fits perfectly with modern marine and industrial power supplies. This compatibility allows easy integration into existing setups, making it a versatile solution for hydraulic power needs. The reversible operation improves control over hydraulic functions, useful in steering systems, winches, or other equipment demanding precision and strength. Its efficient electrical design optimizes energy use, lowering operational costs while boosting system responsiveness.

Precision Engineering for Enhanced Control

Simrad's engineering expertise is evident in the PUMP-5 MKII's precise hydraulic flow control, critical for sensitive hydraulic systems. The pump’s displacement range (17.7 - 58.5 cui) allows operators to achieve the desired flow and pressure levels, ensuring smooth and responsive operation. Its compact size combined with robust performance makes it ideal for applications where space and power efficiency are paramount. The pump’s reversible function simplifies hydraulic circuit design by providing effortless directional control, ultimately enhancing overall system performance.
