SKU:SIM00014470001

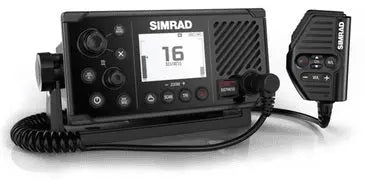

Simrad RS40 VHF AIS-RX
Model: 000-14470-001
Specifications
Temperature range
-15 to +55°C (+5 to +131°F)
Waterproof
IPX7
Normal Working Voltage
+13.6 V DC
Minimum operating Voltage
≤10 V DC
Low battery detect Voltage
10.5 ± 0.5 V DC
Over Voltage Protection
>15.8 ± 0.5 V DC
Hailer Audio Power Out
30 W
Current Drain RX Max Audio Power
≤1.5 A
Current Drain Stand-By RX
≤0.45 A
Current Drain At 12V DC : Hi Power TX
≤6 A
Current Drain At 12V DC : Lo Power TX
≤1.5 A
Frequency Range: Transmit
156.025 ~ 157.425 MHz
Frequency Range: Receive
156.050 ~ 163.275 MHz
Channels
PLL
Modulation
FM(16KOG3E) DSC(16K0G2B)
Channel Spacing
25 KHz
Frequency Stability
± 5 PPM
Digital Selectivity Calling (DSC)
Class D
LCD Display
FSTN 256x160 Pixels
AIS Max Targets
150
Intermediate Frequency : 1st
38.85/21.7 MHz
Intermediate Frequency : 2nd
450 KHz
Sensitivity : 12dB SINAD
≤-6 dBuV(EMF)
Squelch Sensitivity: at tight
≤ 6 dBuV(EMF)
Spurious Response Rejection Ratio
≥70 Db
Adjacent Channel Selectivity
≥70 dB
Intermodulation Response
≥68 dB
S/N at 3KHz Dev.
≥40 dB
Audio Output Power At THD 10%
≥2.5 W
Audio Distortion
≤10 %
Audio Response
+1 to -3dB of 6dB/octave from 300hz to 3kHz
Current Drain Max Audio Power
≤1.5 A
Current Drain Stand-By
≤0.45 A
2ND RX Sensitivity For 12dB SINAD
≤ 0 dBuV(EMF)
2ND RX bit error ratio@-107dBm
≤ 10-2
Frequency error
≤±1.5KHz KHz
RF Power : Hi
23 ± 2 W
RF Power : Lo
0.8 ± 0.2 W
Maximum Deviation
≤± 5 KHz
S/N at 3KHz Dev.
≥40 dB
Modulation Distortion
±3KHz ≤10 %
Audio Response at 1KHz Dev.
+1 to -3dB of 6dB/octave from 300hz to 3KHz dB
Spurious/Harmonic Emissions: Hi/LO
≤0.25 uW
Modulation Sensitivity
≤15 mV
DSC TX deviation at 1.3K
2.6±0.26 KHz
DSC TX deviation at 2.1K
4.2±0.42 KHz
ATIS TX deviation at 1.3 KHz
1.3±0.13 KHz
ATIS TX deviation at 2.1 KHz
2.1±0.21 KHz
The Simrad RS40 is a high-performance VHF radio designed for marine communication, offering crystal-clear voice transmission critical for both leisure and professional boating. Its ease of use and robust build make it ideal for various maritime environments, ensuring that users maintain reliable contact with other vessels and shore stations. The RS40 supports digital selective calling (DSC) for fast emergency alerts and individual calling, enhancing safety on the water. Its intuitive interface and ergonomic controls mean that even novice users can operate it efficiently, making the Simrad RS40 a trusted choice for dependable maritime communication.
One of the standout features of the Simrad RS40 is its built-in AIS receiver, enabling real-time tracking of nearby vessels equipped with AIS transmitters. This capability dramatically improves situational awareness and collision avoidance by displaying pertinent AIS target information directly on your compatible chart plotter or multifunction display. Mariners gain critical insights into vessel positions, headings, and speeds, allowing safer navigation in busy waterways or poor visibility conditions. By combining VHF radio and AIS receiver functions in one device, the Simrad RS40 offers a streamlined solution that reduces the need for additional equipment onboard.
Engineered to endure harsh marine environments, the Simrad RS40 features a rugged, weather-resistant construction suitable for extended use at sea. Its compact form factor allows easy installation in limited spaces while maintaining excellent accessibility to controls and the large, high-visibility display. The radio’s backlit keys enhance usability during nighttime or low-light conditions, ensuring reliable operation around the clock. Additionally, the unit’s power-efficient design helps preserve vessel battery life without compromising performance, making the Simrad RS40 an ideal communication partner for extended voyages and daily boating adventures.
