Simrad SS75M 12DEG 80-130KHZ 9-PIN Thru Hull

Simrad SS75M 12DEG 80-130KHZ 9-PIN Thru Hull

Simrad SS75M 12 Degree Tilt

• CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures.
• Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.
• CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.
• Provides extremely accurate data.
• The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.
• The low profile housing minimizes drag with just 5mm extending outside of the hull.
• Easily connect to NSSevo3

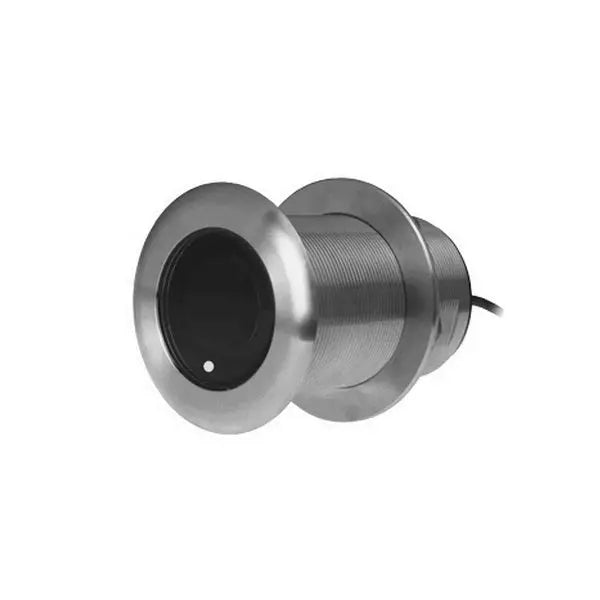

The SS75M is a bronze, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Frequency
Medium CHIRP (80-130kHz)

Power rating
600 watts

Speed sensor
No

Temperature sensor
Yes

Mounting style
Stainless Steel Thru-hull

Elements
1

Beamwidth @ -3db
24° to 16°

Cable length
10 meter
