Sitex MDA5H Class B AIS No Wifi

Comprehensive Overview of Sitex MDA5H Class B AIS No Wifi

Sitex MDA5H Class B AIS No Wifi

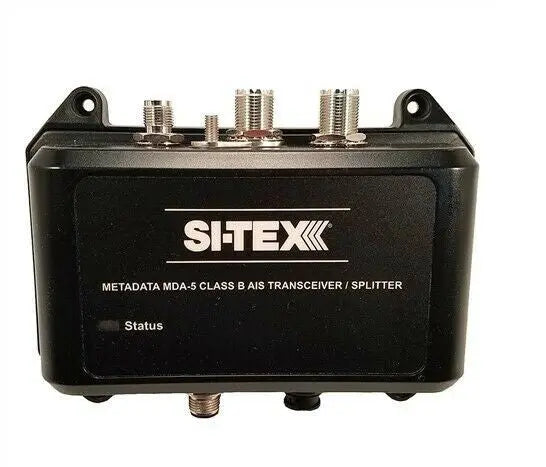

Sitex MDA-5 Class B+ SOTDMA AIS Transceiver NO Wifi

Model: MDA-5H

• The MDA-5 is the world's most sophisticated fully certified 5-Watt SOTDMA Class B AIS Module on the market
• 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
• SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don't have network priority.
• Integrated zero loss VHF antenna splitter - no second antenna needed
• Water Proof certified to IPX7
• NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
• Built-In GPS & GLONASS satellite navigation receiver
• 2 Year Warranty
• Dual Receivers decodes all DSC & AIS messages, including MOB & SART
• Ultra-power efficient
• IEC-62287-2, FCC and USCG certified

Specifications

Transmitter Output Power5 Watts

VHF Antenna Connector
SO-239 UHF

GPS Antenna Connector
TNC

Frequency Range
156.025 - 162.025 Mhz

Input Voltage
9.6-31.2 Vdc

Current Draw
220mA Average Power Consumption

Operating Temperature Range
-25 degC - +55 degC

Ingress Protection
IP67

Dimensions - Transceiver
6.8 W x 5.0 in H x 2.0 in D

What's in the Box:

• MDA-5H Transceiver
• Commercial Grade External GPS Antenna with Coax Cable
• Mounting hardware
• Power & Data Interface cable
• VHF Radio Connection cable
• Product information DVD

Advanced Features of Sitex MDA5H

The Sitex MDA5H is a Class B AIS transponder that enhances marine navigation safety with reliable Automatic Identification System technology. Designed for vessels requiring basic AIS functionality without the need for WiFi connectivity, this device provides essential ship tracking and identification. Its robust construction ensures performance in harsh maritime environments, making it suitable for commercial and recreational vessels alike. The Sitex MDA5H supports secure communication of vessel information, including position, course, and speed, which helps prevent collisions and improves situational awareness for nearby ships.

Benefits of No Wifi Functionality

Unlike other AIS units with wireless capabilities, the Sitex MDA5H operates without built-in WiFi, delivering a focused and interference-free experience. This design choice reduces vulnerability to unauthorized access or signal disruptions, providing a higher level of security and reliability. Additionally, the absence of WiFi simplifies the installation process and minimizes maintenance requirements, ensuring that vessel operators can depend on consistent AIS performance without dealing with complex networking setups or firmware updates related to wireless connectivity.

Installation and Compatibility

The Sitex MDA5H is engineered for straightforward integration with existing marine navigation systems. Its compact size and standard interface make installation efficient, whether on smaller pleasure crafts or larger commercial vessels. The AIS unit complies with key maritime standards and is compatible with most chart plotters and marine displays, facilitating seamless data sharing. This compatibility helps vessel operators maximize navigational safety and regulatory compliance, making the Sitex MDA5H an ideal choice for those who prioritize reliable vessel tracking without additional wireless features.
