Sitex NAVPRO1200F 12in Combo

Sitex NAVPRO1200F 12in Combo

Sitex NAVPRO1200F 12" Plotter

Model: NAVPRO1200F

• 12" Hi-Res. Hybrid Touch Screen Display


• Heavy Duty Yoke mount for Bulkhead or Overhead Mounting


• NMEA-0183 & NMEA2000 Interfacing


• WIFI Interface


• Automatic Software Updates when in WIFI Coverage


• Captain Cloud automatically backs up all User Data to a Free Cloud Based Data backup Service for Waypoints, Marks, Events, and Track memories when in WIFI coverage.


• Mirror Screen Capability via Bluetooth connection allows user to download mirror app to his Android based smart phone and view and control the NavPro 900 from Smart Phone.


• Optional dedicated Remote Control Available


• Designed for easy flush mount without any special kit needed


• New CHIRP Sounder with selectable 300w, 600w, & 1kW outputs (NavPro-900F version) CHIRP Sounder has scroll back screen memory that allows user to quickly scroll back and pickoff a location to mark on Nav Chart.


• Uses the popular AIrmar CHIRP Transducers with TX ID will automatically setup the Sounder transducer interconnect


• Adapters available to allow the unit to be installed on older non-CHIRP transducers. Like 50/200 kHz Dual Frequency transducers and 120kHz Single Freq. transducers. This allows the NavPro 900F to be used to retro fit onto any of the older SI-TEX Transducers. For example, any of the transducers used by the very popular old CVS-106 Sounders. 50/200 & 120kHz


• If customer doesn’t have a need for CHIRP sounding he can use a traditional less expensive transducer option


• Internal Hi-Resolution 18Hz 72 Channel GPS Receiver & Antenna


• New User interface makes the unit very easy to operate and navigate with


• Full AIS Integration when interfaced to an AIS Unit

The NavPro 1200 MFDs offer optional high-resolution WI-FI radar that makes it easy to install and rig. SI-TEX’s 4kW, 24-inch compact radome on just about any vessel. By mounting and wirelessly syncing the SI-TEX MDS-12 Network Radome to a NavPro unit, boaters can turn these popular and affordable MFDs into powerful 36-nm range radars that deliver excellent target resolution and a range of features boaters expect from professional-grade SI-TEX radars. Overlaying radar targets onto the feature-rich Polaris Charts provides navigators with enhanced situational awareness and safety, even in the most challenging conditions.

In addition to the included Polaris Charts, SI-TEX’s NavPro Series is also compatible with optional Navionics Platinum+ cartography.

Specifications

LCD Display Size
12.0"

Display Brightness
1250 NITS

Display Resolution
1024x768

Touch Screen
Yes, Capacitive Multi-Touch

Keyboard Backlight
Yes

GPS Receiver
Built-In HighResolution 18Hz 72 Channel GPS/GLONASS

External GPS
Yes, optional via 6 pin Connector

Network Connections
NMEA-2000 (Optional Cable Required) Dual NMEA-0183 Input/Output Ports

WIFI Connection
Yes

Bluetooth Connection
Yes

Waterproof Rating
IPX6

Operating Temperature range
-10’C to +60’C

Warranty
2 Year

Input Voltage
10 to 35 VDC

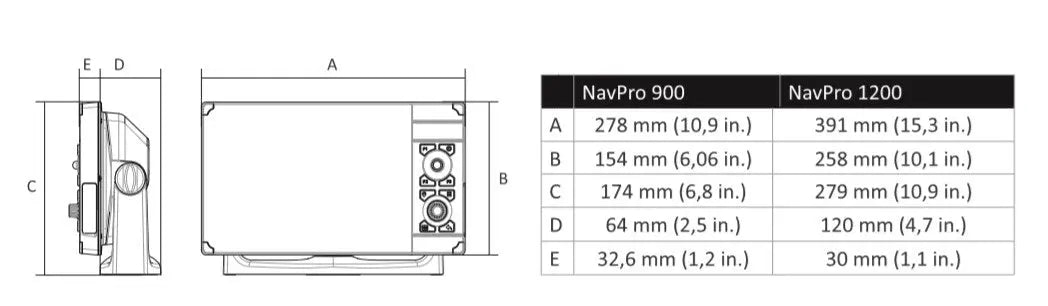

Dimensions
15.3" Wide x 10.9" High x 5.8" Deep

What's in the Box:

• NavPro 1200F Display Unit


• Polaris USA Chart Card


• Mounting Bracket


• Mounting Screws


• Combination Power Data Cord
