Sitex NAVPRO900F 9in Combo

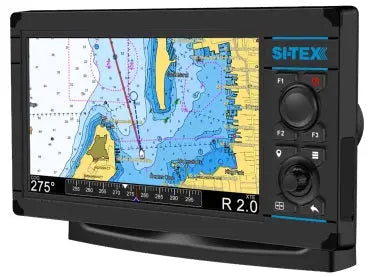

Si-Tex NavPro 900F 9" Touchscreen MFD
Model: NAVPRO 900F
- 9" Hi-Res. Hybrid Touch Screen Display
- Innovative new Yoke & Swivel mount
- NMEA-0183 & NMEA2000 Interfacing
- WIFI Interface
- Automatic Software Updates when in WIFI Coverage
- Captain Cloud automatically backs up all User Data to a Free Cloud Based Data backup Service for Waypoints, Marks, Events, and Track memories when in WIFI coverage.
- Mirror Screen Capability via Bluetooth connection allows user to download mirror app to his Android based smart phone and view and control the NavPro 900 from Smart Phone.
- Optional dedicated Remote Control Available
- Designed for easy flush mount without any special kit needed
- New CHIRP Sounder with selectable 300w, 600w, & 1kW outputs (NavPro-900F version) CHIRP Sounder has scroll back screen memory that allows user to quickly scroll back and pickoff a location to mark on Nav Chart.
- Uses the popular AIrmar CHIRP Transducers with TX ID will automatically setup the Sounder transducer interconnect
- Adapters available to allow the unit to be installed on older non-CHIRP transducers. Like 50/200 kHz Dual Frequency transducers and 120kHz Single Freq. transducers. This allows the NavPro 900F to be used to retro fit onto any of the older SI-TEX Transducers. For example, any of the transducers used by the very popular old CVS-106 Sounders. 50/200 & 120kHz
- If customer doesn’t have a need for CHIRP sounding he can use a traditional less expensive transducer option
- Internal Hi-Resolution 18Hz 72 Channel GPS Receiver & Antenna
- New User interface makes the unit very easy to operate and navigate with
- Full AIS Integration when interfaced to an AIS Unit
The NavPro 900 and 1200 MFDs offer optional high-resolution WI-FI radar that makes it easy to install and rig SI-TEX’s 4kW, 24-inch compact radome on just about any vessel. By mounting and wirelessly syncing the SI-TEX MDS-12 Network Radome to a NavPro unit, boaters can turn these popular and affordable MFDs into powerful 36-nm range radars that deliver excellent target resolution and a range of features boaters expect from professional-grade SI-TEX radars. Overlaying radar targets onto the feature-rich Polaris Charts provides navigators with enhanced situational awareness and safety, even in the most challenging conditions.
In addition to the included Polaris Charts, SI-TEX’s NavPro Series is also compatible with optional Navionics Platinum+ cartography.
Specifications
LCD Display Size
9.0"
Display Brightness
1,100 NITS
Display Resolution
800x480
Touch Screen
Yes, Capacitive Multi-Touch
Keyboard Backlight
Yes
Operating Voltage
10 to 35 VDC
GPS Receiver
Built-In High Resolution 18Hz 72 Channel GPS/GLONASS
External GPS
Yes, optional via 6 pin Connector
Network Connections
NMEA-2000 (Optional Cable Required)
ual NMEA-0183 Input/Output Ports
WIFI Connection
Yes
Bluetooth Connection
Yes
Waterproof Rating
IPX6
Operating Temperature range
-10’C to +60’C

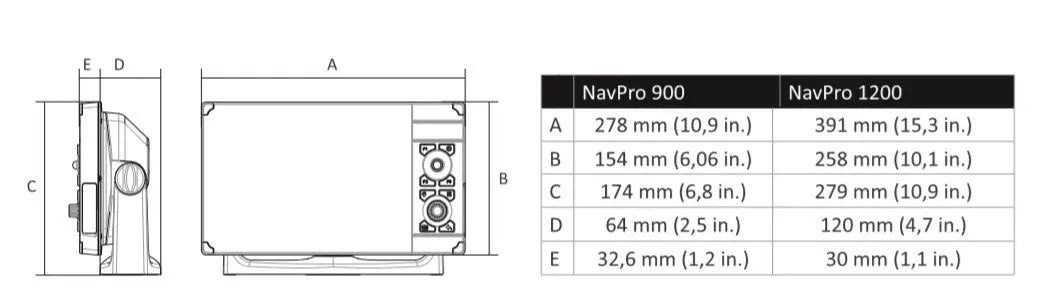

Dimensions
10.9" Wide x 6.8" High x 3.7" Deep
Warranty
2 Year
What's in the Box:
- NavPro 900 Display Unit
- Polaris USA Chart Card
- Mounting Bracket
- Mounting Screws
- Combination Power Data Cord
- Sun Cover
- Installation & Operation manual
