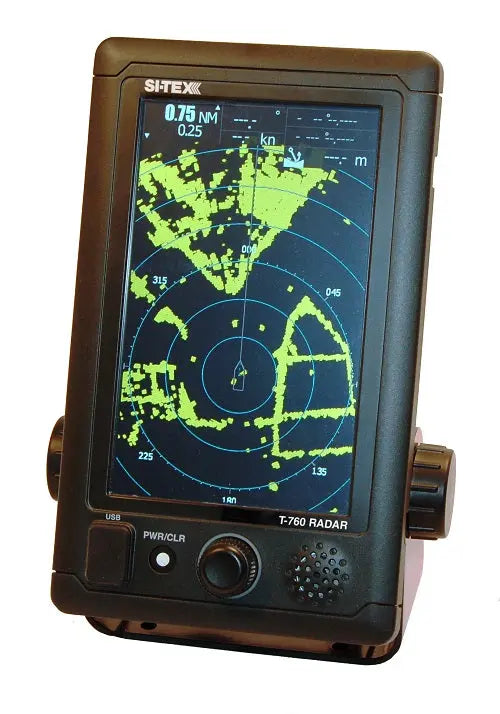

Sitex T760 7in Color Radar With 4Kw 18in Dome 10M Cable
- 7 inch color wide LCD display with TOUCH screen
- Hi-performance 4kW 1.5ft ( T-760 24NM)/2ft (T-761 48NM) radome scanner
- Easy operation with TOUCH and rotary encoder dial
- 50 Target AIS Tracking - Standard
- 10 Target MARPA - Standard
- Multi-Speed Antenna Rotation
- Optional Color RGB video output
Model Frequency Output Poweer Type Scanner Size Rotation Speed Beam Power T-760 X-band 9410 MHHz 4kW Radome 450mm 16/48 rpm h: 5.2° v: 25° DC12/24v -10/+30% aprox 50w T-761 620mm h:4.0°, v: 25°
Radar Performance T-760 T-761 Maximum detection range 24NM 48NM Range Scale .0625 - 24nm .0625 - 48NM Range Resolution Less than 30m Minimum detection range Less than 40m Bearing accuracy Less than 1 degree
Presentation
Screen Size 7" wide 800x480 pixel Radar diameter 90mm or more Anti Sea/Rain Clutter Auto/Manual Trail indication off, 15s, 30s, 1min, 2min, 3min, 6min, 10min,15min, 30min Contiuous Offcentering 2/3 radius of PPI
Target tracking and AIS Function
Acquisition Mode Auto/manual ( Auto New Target) ATA Trackign Target Capacity 10 Targets Acquisition and trackign range 20nm Vector Model and Length True/Relative Vector, adjustable from 1 to 60min Guard Zone 1 zone Target Data True Bearing, Range, True Course, True Speed, CPA, TCPA Alarms CPA/TCPA, New Target, Lost System Ais Target capacity 50 targets
