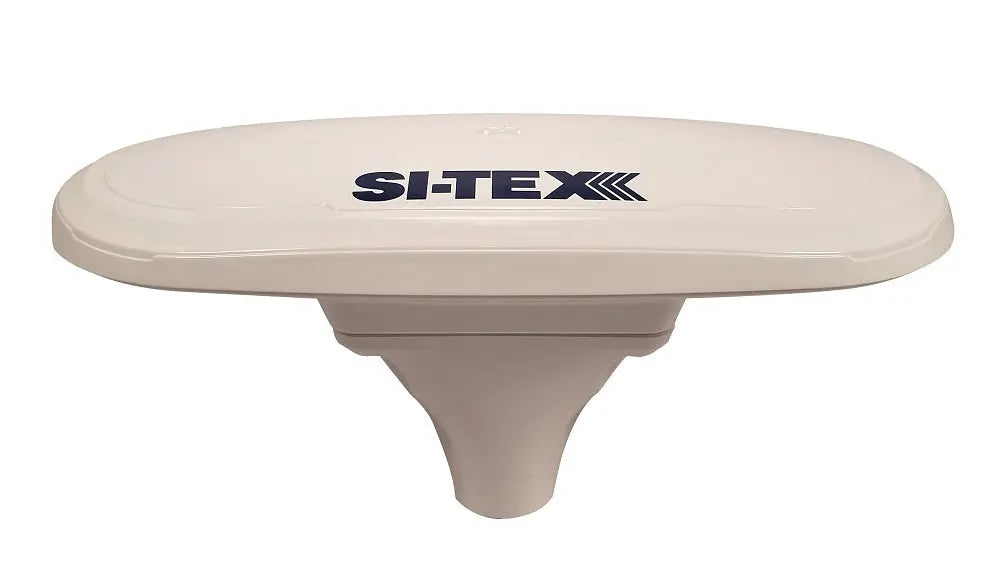

Sitex V200 Satellite Compass With NMEA0183

Overview of the Sitex V200 Satellite Compass

Sitex V200 Satellite Compass With NMEA0183

Si-Tex Vector V200 Satellite Compass - NMEA0183

Model: Vector200-0

• L1 GPS, GLONASS, Galileo, BeiDou, QZSS
• Optional 30 cm RMS world-wide positioning accuracy with Atlas corrections
• 0.75 degree heading accuracy in an amazingly small form factor
• Excellent in-band and out-of-band interference rejection
• Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites
• Provides heading, positioning, heave, roll, and pitch
• Comes with 15 meter NMEA-0183 Cable

Experience superior navigation from the accurate heading and positioning performance available with the VectorTM V200 GNSS compass. The multi-GNSS Vector V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30 cm (RMS) accuracy via Hemisphere's Atlas GNSS global correction service.

The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35 cm in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems

Specifications

Receiver TypeVector GNSS L1 Receiver

Signals Received
GPS, GLONASS, BeiDou, Galileo, QZSS 7, and Atlas

Channels
424

GPS Sensitivity
-142 dBm

SBAS Tracking
2-channel, parallel tracking

Update Rate
10 Hz standard, 20 Hz optional

Power

Input Voltage
6 to 36 VDC

Reverse Polarity Protection
Yes

Dimensions

No Mount
34.8 L x 15.8 W x 7.5 H (cm)

LP Flat Mount
34.8 L x 15.8 W x 7.6 H (cm)

HP Flat Mount
34.8 L x 15.8 W x 10.7 H (cm)

Pole Mount
34.8 L x 15.8 W x 16.8 H (cm)

Precision and Reliability of Sitex V200

The Sitex V200 satellite compass is an advanced navigation instrument designed to provide accurate heading and positioning information for marine applications. Equipped with multiple GNSS receivers, the Sitex V200 ensures superior precision by combining GPS, GLONASS, and other satellite data, making it reliable even in challenging environments. Its seamless integration with NMEA0183 protocol allows easy connectivity with a variety of marine electronics, enhancing situational awareness and navigational safety for vessels of all sizes.

Key Features and Performance

This compass features rapid satellite acquisition and continuous updates, delivering real-time heading information with minimal latency. The Sitex V200 includes a robust, waterproof housing designed to withstand harsh marine conditions, ensuring durability and long-term use. Its compact form factor simplifies installation onboard without occupying excessive space. Additionally, the device supports multiple output formats, allowing flexible interfacing with autopilot systems, chartplotters, and other navigation equipment.

Benefits for Marine Navigation

The Sitex V200 satellite compass provides mariners with enhanced situational awareness through its highly accurate heading data, aiding in course plotting and collision avoidance. Its compatibility with the NMEA0183 standard ensures straightforward integration within existing onboard navigation systems, simplifying upgrades or replacements. Whether for commercial shipping, fishing vessels, or recreational boating, the Sitex V200 contributes to safer voyages by minimizing human error and improving the reliability of navigational data.
