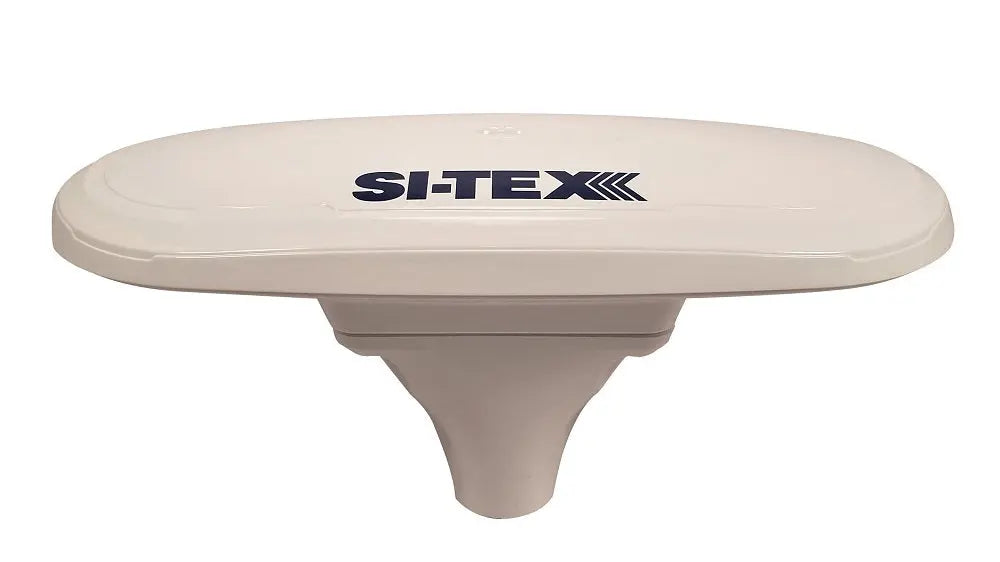

Sitex V200 Satellite Compass With NMEA2000

Advanced Navigation with Sitex V200 Satellite Compass

Sitex V200 Satellite Compass With NMEA2000

Si-Tex Vector V200 Satellite Compass - NMEA2000

Model: Vector200-2

• L1 GPS, GLONASS, Galileo, BeiDou, QZSS
• Optional 30 cm RMS world-wide positioning accuracy with Atlas corrections
• 0.75 degree heading accuracy in an amazingly small form factor
• Excellent in-band and out-of-band interference rejection
• Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites
• Provides heading, positioning, heave, roll, and pitch

Experience superior navigation from the accurate heading and positioning performance available with the VectorTM V200 GNSS compass. The multi-GNSS Vector V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30 cm (RMS) accuracy via Hemisphere's Atlas GNSS global correction service.

The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35 cm in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems

Specifications

Receiver TypeVector GNSS L1 Receiver

Signals Received
GPS, GLONASS, BeiDou, Galileo, QZSS 7, and Atlas

Channels
424

GPS Sensitivity
-142 dBm

SBAS Tracking
2-channel, parallel tracking

Update Rate
10 Hz standard, 20 Hz optional

Power

Input Voltage
6 to 36 VDC

Reverse Polarity Protection
Yes

Dimensions

No Mount
34.8 L x 15.8 W x 7.5 H (cm)

LP Flat Mount
34.8 L x 15.8 W x 7.6 H (cm)

HP Flat Mount
34.8 L x 15.8 W x 10.7 H (cm)

Pole Mount
34.8 L x 15.8 W x 16.8 H (cm)

Exceptional Accuracy and Reliability

The Sitex V200 Satellite Compass offers superior accuracy and reliability for maritime navigation thanks to its cutting-edge technology. Integrated with NMEA2000 compatibility, this device allows seamless connection with other marine electronics, ensuring consistent and trustworthy heading data. By combining satellite positioning with a precise compass system, the Sitex V200 minimizes drift and errors common in traditional navigation tools. Whether you're navigating coastal waters or open seas, the Sitex V200 delivers dependable real-time information crucial for safe and efficient voyage planning.

Easy Integration with Marine Systems

Designed with user-friendly installation in mind, the Sitex V200 Satellite Compass supports the NMEA2000 communication protocol. This ensures effortless integration with onboard systems such as autopilots, chart plotters, and radar devices. Its plug-and-play design streamlines setup, reducing installation time and complexity. The device's robust construction also withstands harsh marine environments, maintaining performance integrity. By simplifying the networking of your navigation instruments, the Sitex V200 enhances operational efficiency and provides a unified data stream for better vessel control.

Durability and Marine-Grade Build Quality

Built for the demanding conditions of marine applications, the Sitex V200 Satellite Compass features a rugged, weather-resistant casing that protects sensitive electronics from moisture, salt, and temperature extremes. Its compact design fits easily in a variety of vessel types without compromising space. The device's construction complies with marine standards, making it ideal for both recreational and commercial vessels. With minimal maintenance required, the Sitex V200 ensures long-term durability and consistent performance, providing peace of mind to boaters and maritime professionals alike.
