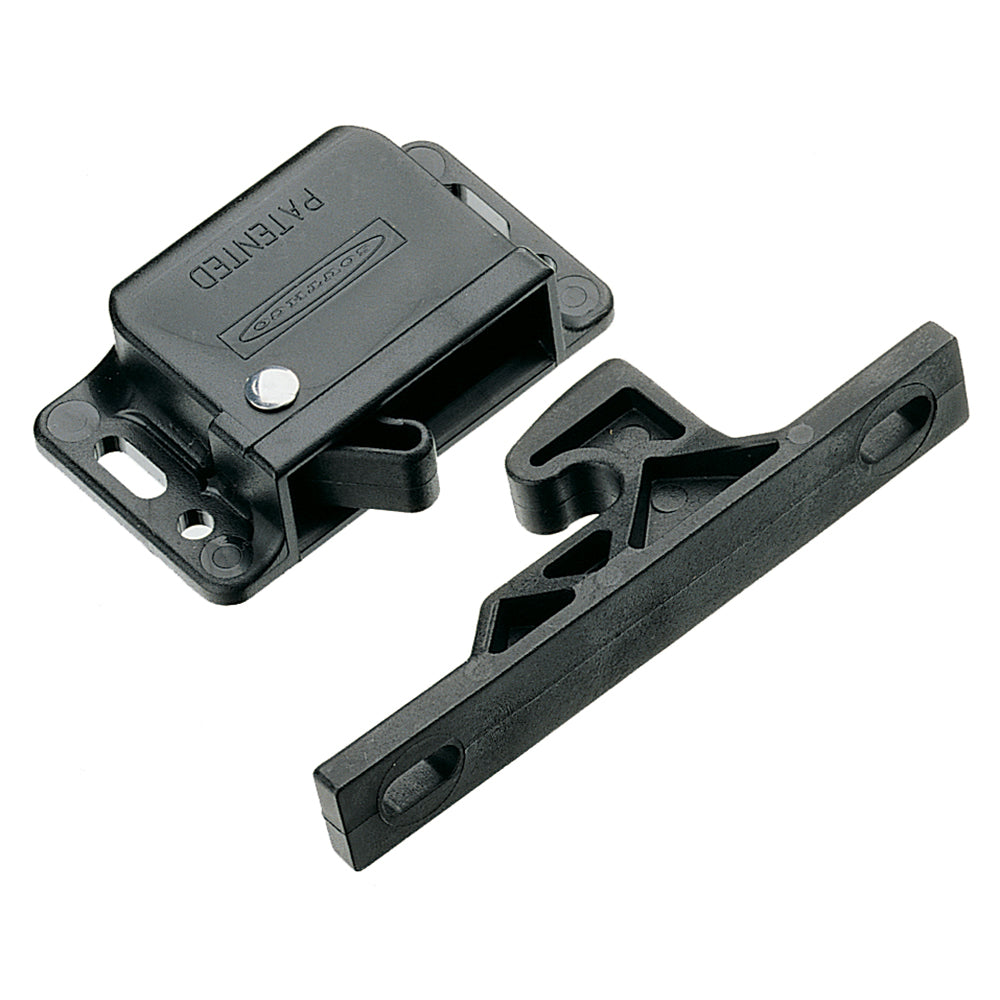

Southco C3-805 Grabber Catch Latch - Side Mount Black with 22N Pull-Up Force

Grabber Catch Latch - Side Mount - Black - Pull-Up Force 22N (5lbf)

Features:

• Spring-loaded over-center latching
• One assembly includes catch and keeper
• Material and Finish: PC/ABS, black

Performance Details:

• Operating temperature range: -30C (-20F) to 60C (140F)
• Flammability rating: UL94-HB

Installation Notes:

• Orient keeper to latch. The arrow on the keeper should point towards the cam. Mount to door and adjust for smooth latching.
• Minimum distance from frame (or surface on which catch subassembly is mounted) to centerline of door hinge is 150 (5.9)

The Southco C3-805 Grabber Catch Latch is designed for secure side-mount applications, offering reliable over-center spring-loaded latching with a pull-up force of 22N (5lbf). Crafted from durable PC/ABS in a sleek black finish, this latch provides a robust solution for various enclosure and access panel needs. Its spring-loaded mechanism ensures smooth operation and secure closure, making it ideal for demanding environments. The latch assembly includes both the catch and keeper components, simplifying installation and maintenance. Operating efficiently within a temperature range of -30°C (-20°F) to 60°C (140°F), it withstands a variety of environmental conditions. The UL94-HB flammability rating ensures compliance with safety standards for fire resistance. Installation involves orienting the keeper so that the arrow points toward the cam, mounting it to the door, and adjusting for a seamless latch operation. The minimum distance from the frame or mounting surface to the door hinge centerline is 5.9 inches, facilitating proper alignment and performance. With its sturdy construction and easy installation, the Southco C3-805 latch is suitable for industrial, commercial, and utility applications where dependable latching is essential.

Features:

• Spring-loaded over-center latching for secure closure

• Includes both catch and keeper in a single assembly

• Constructed from durable PC/ABS material with a sleek black finish

• Operates within a temperature range of -30°C to 60°C

• UL94-HB flammability rating for safety compliance
