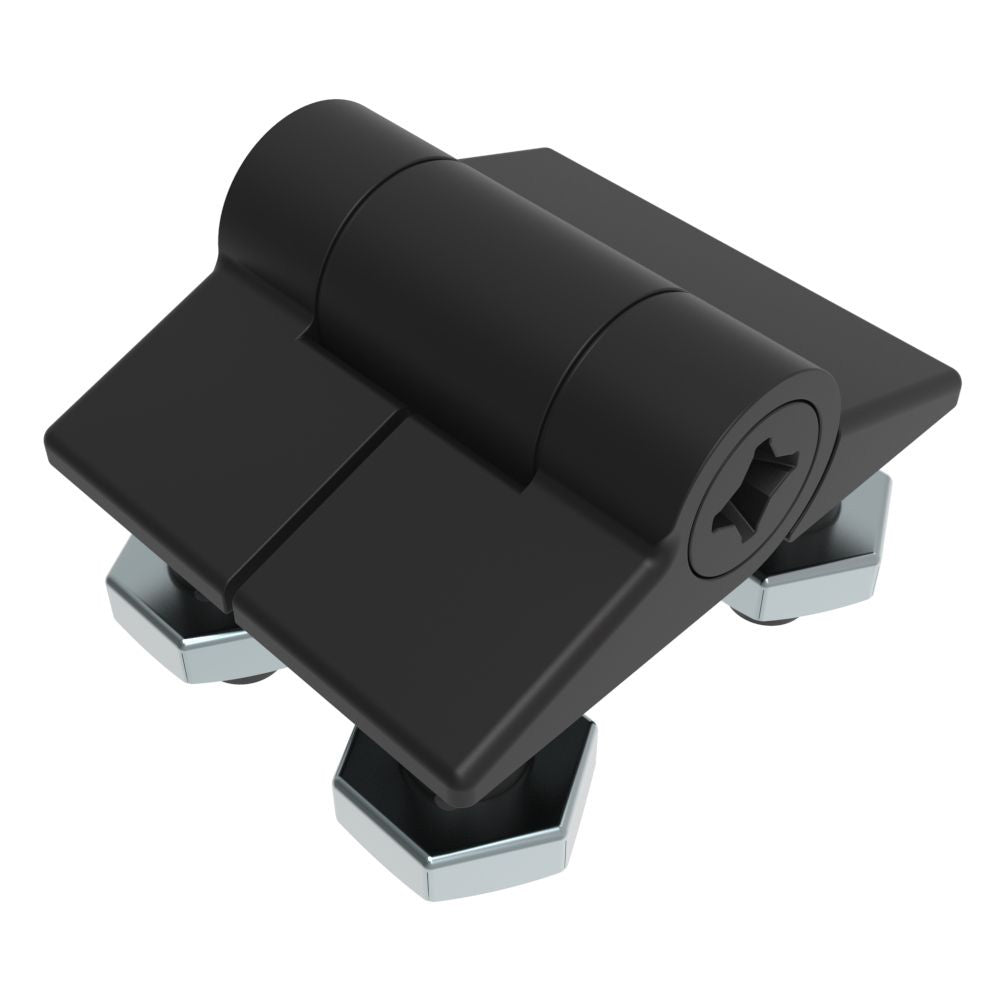

Southco E6-10-101-20 Adjustable Torque Hinge, Symmetric Torque, Small Size, Black Acetal Copolymer

Adjustable Torque Hinge, Symmetric Torque, Small Size, Acetal Copolymer, Natural, Black

Allow users the flexibility to define and adjust the operating effort required to move or position panels. E6 hinges provide infinite control over door positioning and accommodate variables in enclosure construction - without added hardware or installation costs. Aesthetic designs and concealed mounting hardware options provide a clean presentation.

Specifications:

• Material - Acetal Copolymer
• Color/Appearance - Black
• Forward Torque (Nm) - 0.25
• Reverse Torque (Nm) - 0.25
• Access Restriction - No Restriction
• Torque Type - Symmetric
• Installation - Threadstud and Nut
• Series - Adjustable Torque
• Class - E6 - Adjustable Torque Position Control Hinges

Southco E6-10-101-20 Adjustable Torque Hinge provides adjustable symmetric torque for controlled panel positioning in enclosures, equipment, access panels, and other applications requiring consistent movement resistance. The E6 Adjustable Torque Position Control Hinge allows users to define and fine-tune the operating effort needed to move or hold a panel without adding separate positioning hardware or increasing installation complexity.

Its compact design supports a clean, professional appearance while concealed mounting hardware options help minimize visual clutter. The hinge accommodates variations in enclosure construction and provides infinite control over door positioning, making it suitable for applications where reliable panel alignment and controlled movement are important. The black acetal copolymer construction offers a durable, lightweight solution for industrial and commercial equipment.

Specifications:

• Material: Acetal copolymer
• Color/Appearance: Black
• Forward Torque: 0.25 Nm
• Reverse Torque: 0.25 Nm
• Access Restriction: No restriction
• Torque Type: Symmetric
• Installation: Threadstud and nut
• Series: Adjustable Torque
• Class: E6 Adjustable Torque Position Control Hinges

Designed for applications that require repeatable torque in both directions, the Southco E6-10-101-20 delivers balanced resistance during opening and closing. Its threadstud-and-nut installation supports straightforward integration into compatible panel assemblies, while the adjustable torque feature helps reduce the need for additional latches, stays, or positioning components.

Features:

• Adjustable symmetric torque provides controlled movement and panel positioning
• Black acetal copolymer construction offers a lightweight, durable hinge solution
• 0.25 Nm forward torque and 0.25 Nm reverse torque provide balanced resistance
• Threadstud-and-nut installation supports efficient mounting
• Compact E6 design accommodates enclosure and equipment applications
• No access restriction allows unrestricted panel operation
