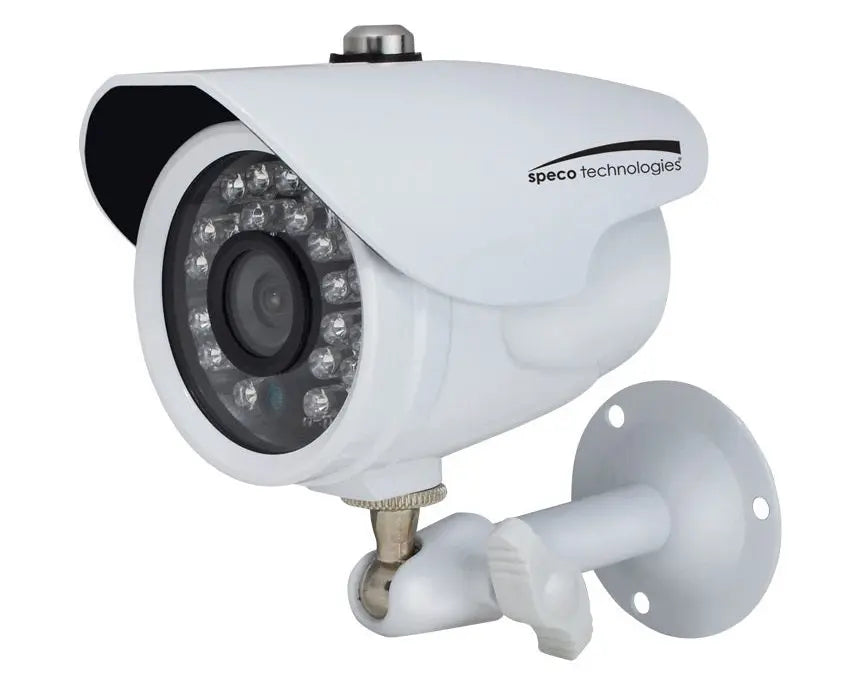

Speco CVC627MT Marine Camera Waterproof Color 12/24VDC

Speco CVC627MT Marine Camera Waterproof Color 12/24VDC

Speco CVC627MT HD-TVI 2MP Waterproof Marine Camera, 3.6mm Fixed Lens, White Housing

• 3.6mm fixed lens


• Full HD resolution over coax (HD-TVI)


• Full HD 1080p @ 30fps


• Great for marine applications


• Additional analog output for 960H


• Full OSD operation via UTC (TVI only)


• IP67 compliant, waterproof


• 12VDC / 24VAC dual voltage operation


• 5 year warranty


• Mirror image or flip image available in OSD menu

Image Sensor
1/3" Progressive Scan CMOS, 2MP

Resolution.
1920 x 1080

Minimum Illumination
0 lux (IR LEDs on)

Effective Pixels
1984 (H) x 1105 (V)

Total Pixels
2000 (H) x 1121 (V)

Number of IR LEDs
24

IR Range
65 ft. (depending on scene reflection)

Electronic Shutter
Auto / Manual (1/30 — 1/30,000 sec)

S/N Ratio
More than 50dB

Synchronization
Internal

Scanning System
2:1 Interlaced

Video Output
1Vp-p / 75 ohms

TV System
NTSC

Input Voltage
12VDC / 24VAC (power supply not included)

Input Draw
350mA (12VDC) / 300mA (24VAC)

Dimensions
2.47" (W) x 2.74" (H) x 4.01" (L)

What's in the Box:

• Camera


• Mounting screws


• Mounting Bracket


• 10’ of power/video cable included
