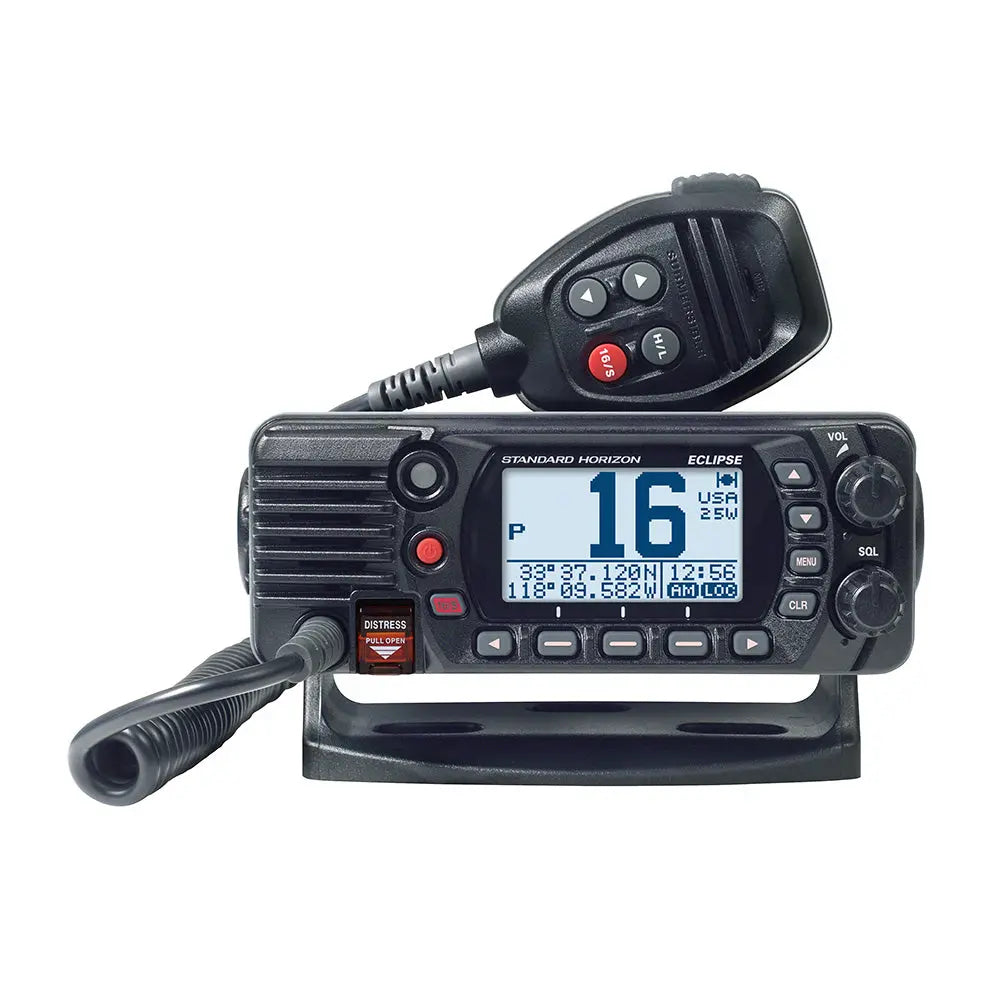

Standard Horizon GX1410GB Eclipse Series 25W Fixed Mount VHF Marine Radio with Built-In GPS

GX1410GB Eclipse Series 25W Fixed Mount VHF/GPS - Black

ITU-R M493-16 Class D Digital Selective Calling

The GX1410 Eclipse Series is an ITU-R M493-16 Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications.

When activated, the DSC DISTRESS function transmits a digital MAYDAY, including vessel identification, Latitude / Longitude, and time, to facilitate prompt response. Additional calls that can be made are Individual, Urgent, Safety, Position Report, and Send.

High-Resolution Dot Matrix Display

The high-resolution dot matrix display makes navigating the radios many features smooth and easy. The adjustable ultra-bright backlight makes daytime and nighttime viewing a breeze.

E2O Easy-to-Operate Menu System

Keeping the everyday boat operator in mind, the Easy to Operate menu system is more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming have never been easier.

Easy DSC Installation!

The GX1410G makes DSC easy. With an internal 66 Channel GPS built into the front panel, there is no need to hassle wiring the radio to a GPS for DSC. Out of the box and ready to go, DSC calling and position sharing can both be performed with just a few simple steps.

Features:

• Built-in 66 Channel WAAS GPS receiver
• Affordable Ultra Compact Class D Fixed Mount VHF Radio
• Meets ITU-R M493-16 Class D DSC (Digital Selective Calling)
• Replaces older Eclipse+ and Eclipse DSC Models
• Radio controls on the Microphone
• E2O Easy to Operate Icon/Menu System
• Oversized Full dot matrix display (31 mm x 55 mm)
• Built-in Separate Receiver for CH70 (Receiving DSC Calls)
• DSC test call and Auto DSC channel change selection
• GPS position and Time Shown on a Full-dot Matrix Display
• NMEA In and Output Connections to a Compatible GPS Chart Plotter
• Programmable soft keys
• Automatically poll the GPS position of up to 6 ships using DSC
• Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)
• All USA/International and Canadian Marine Channels
• Preset key used to recall up to 10 favorite channels
• NOAA weather channel selection with Weather Alert
• Programmable Scan, Priority Scan, and Dual Watch

The Standard Horizon GX1410GB Eclipse Series is a compact and powerful 25-watt fixed mount VHF radio designed for reliable marine communication. Featuring a built-in 66-channel WAAS GPS receiver, this radio simplifies installation by eliminating the need for external GPS connections, enabling quick setup and use right out of the box. Its ITU-R M493-16 Class D Digital Selective Calling (DSC) capability ensures maritime safety through functions like digital MAYDAY alerts, vessel identification, and position reporting, which are vital during emergencies. The separate receiver for Channel 70 (CH70) allows DSC calls to be received even when listening to other channels, ensuring critical safety messages are never missed.

The high-resolution dot matrix display, measuring approximately 1.2 inches by 2.2 inches, provides clear navigation through the radio’s extensive features. Its adjustable ultra-bright backlight enhances visibility during day or night sailing, while the intuitive E2O menu system makes access to settings straightforward, even for less experienced operators. The controls on the microphone add convenience, allowing users to operate the radio without reaching the main unit. Additional features include programmable soft keys, automatic polling of up to six ships’ GPS positions via DSC, and compatibility with NMEA inputs and outputs for integration with chart plotters.

Designed with durability in mind, the GX1410GB boasts an IPX8 waterproof rating, allowing it to withstand submersion at 1.5 meters for 30 minutes. It supports all U.S., Canadian, and international marine channels, along with NOAA weather channels featuring alerts for weather emergencies. The preset key allows quick access to up to 10 favorite channels, and the radio supports programmable scan, priority scan, and dual watch modes for flexible monitoring. Overall, the Standard Horizon GX1410GB Eclipse Series offers a reliable, user-friendly communication solution for both recreational and commercial mariners, combining safety features with ease of use and durability.

Features:

• Built-in 66 Channel WAAS GPS receiver for accurate positioning

• ITU-R M493-16 Class D DSC compliance for maritime safety

• Separate Channel 70 receiver for DSC calls, even when listening to other channels

• High-resolution dot matrix display with adjustable ultra-bright backlight for clear visibility

• E2O Easy-to-Operate menu system simplifies setup and operation

• Microphone controls for convenient operation without accessing the main unit

• Automatic polling of up to six ships' GPS positions via DSC

• IPX8 waterproof rating ensures durability in harsh marine environments

• Supports all U.S., Canadian, and international marine channels including NOAA weather channels

• Preset key for quick access to up to 10 favorite channels

• Supports programmable scan, priority scan, and dual watch modes for flexible monitoring

• NMEA input and output for seamless integration with chart plotters

• Auto DSC test call and channel switching for enhanced safety features

• Compact design without sacrificing performance, ideal for various vessel sizes
