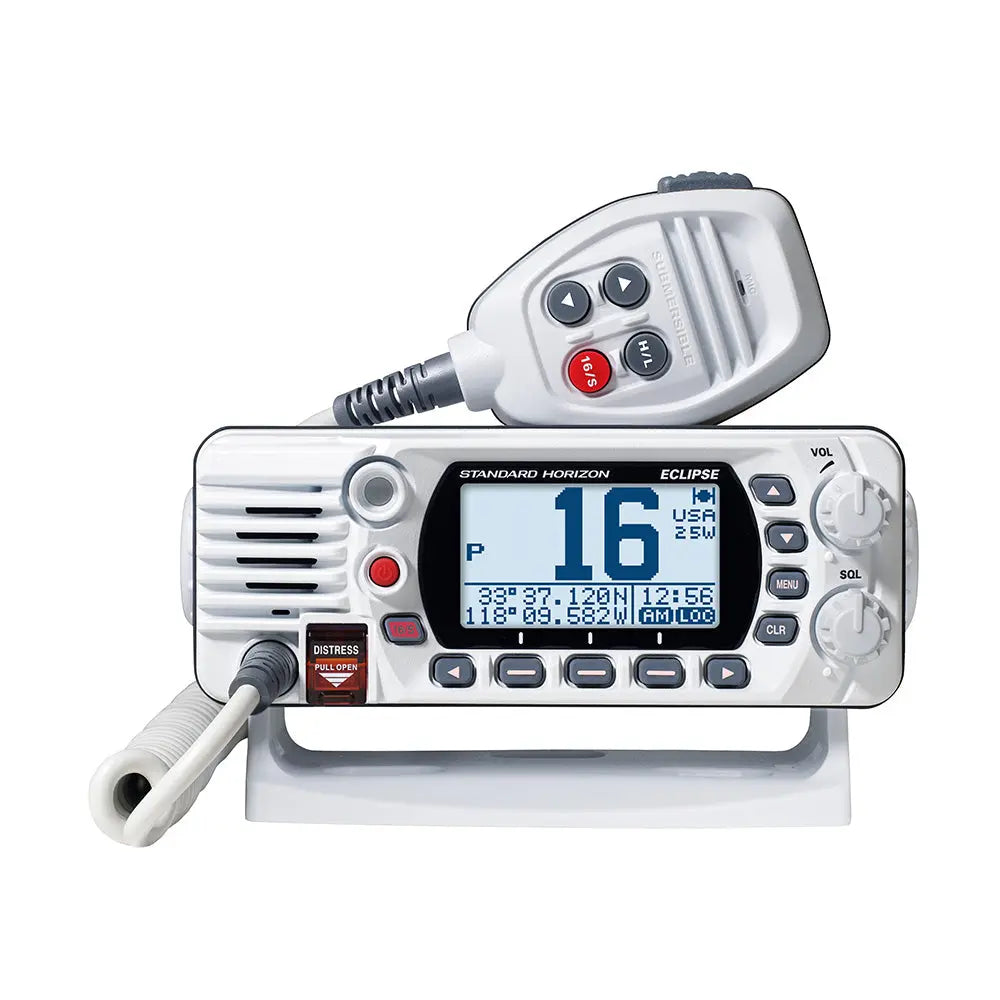

Standard Horizon GX1410GW Eclipse Series 25W Fixed Mount VHF Marine Radio with Built-in GPS - White

GX1410GB Eclipse Series 25W Fixed Mount VHF/GPS - White

ITU-R M493-16 Class D Digital Selective Calling

The GX1410 Eclipse Series is an ITU-R M493-16 Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications.

When activated, the DSC DISTRESS function transmits a digital MAYDAY, including vessel identification, Latitude / Longitude, and time, to facilitate prompt response. Additional calls that can be made are Individual, Urgent, Safety, Position Report, and Send.

High-Resolution Dot Matrix Display

The high-resolution dot matrix display makes navigating the radios many features smooth and easy. The adjustable ultra-bright backlight makes daytime and nighttime viewing a breeze.

E2O Easy-to-Operate Menu System

Keeping the everyday boat operator in mind, the Easy to Operate menu system is more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming have never been easier.

Easy DSC Installation!

The GX1410G makes DSC easy. With an internal 66 Channel GPS built into the front panel, there is no need to hassle wiring the radio to a GPS for DSC. Out of the box and ready to go, DSC calling and position sharing can both be performed with just a few simple steps.

Features:

• Built-in 66 Channel WAAS GPS receiver
• Affordable Ultra Compact Class D Fixed Mount VHF Radio
• Meets ITU-R M493-16 Class D DSC (Digital Selective Calling)
• Replaces older Eclipse+ and Eclipse DSC Models
• Radio controls on the Microphone
• E2O Easy to Operate Icon/Menu System
• Oversized Full dot matrix display (31 mm x 55 mm)
• Built-in Separate Receiver for CH70 (Receiving DSC Calls)
• DSC test call and Auto DSC channel change selection
• GPS position and Time Shown on a Full-dot Matrix Display
• NMEA In and Output Connections to a Compatible GPS Chart Plotter
• Programmable soft keys
• Automatically poll the GPS position of up to 6 ships using DSC
• Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)
• All USA/International and Canadian Marine Channels
• Preset key used to recall up to 10 favorite channels
• NOAA weather channel selection with Weather Alert
• Programmable Scan, Priority Scan, and Dual Watch

The Standard Horizon GX1410GW Eclipse Series is a compact and reliable 25-watt fixed mount VHF radio designed for marine communication. Featuring ITU-R M493-16 Class D Digital Selective Calling (DSC), it allows for quick and accurate distress alerts, including vessel identification, GPS position, and time, to ensure swift rescue operations. The radio's separate Channel 70 receiver ensures DSC calls are received even when listening to other communications, enhancing safety and situational awareness onboard.
Equipped with a built-in 66-channel WAAS GPS receiver, the GX1410GW simplifies installation by eliminating the need for external GPS wiring for DSC functions. The front-panel GPS display shows real-time position and time data, and NMEA inputs and outputs enable seamless connection with compatible chart plotters and navigation systems. Its high-resolution dot matrix display provides clear, easy-to-read navigation and status information, with adjustable ultra-bright backlighting suitable for daytime and nighttime use. The user-friendly E2O menu system makes accessing features like DSC calling, programming, and channel selection straightforward, even for less experienced operators.
This marine radio offers versatile communication options, including NOAA weather channels with alerts, programmable soft keys, preset favorites, and scan functions such as priority and dual watch. The controls on the microphone facilitate convenient operation without needing to access the main unit, and the device is rated IPX8 waterproof, capable of withstanding submersion for 30 minutes at a depth of 5 feet. Designed to meet international and U.S. maritime standards, the GX1410GW is an essential communication tool for safety and navigation on any vessel.For comprehensive details and installation instructions, refer to the official owners manual available online at https://productimageserver.com/literature/ownersManual/108197OM.pdf.

Features:

• Built-in 66 Channel WAAS GPS receiver for accurate positioning

• Compact and affordable Class D fixed mount VHF radio

• Meets ITU-R M493-16 Class D DSC standards for reliable distress calling

• Separate receiver for Channel 70 to receive DSC calls independently

• High-resolution dot matrix display with adjustable ultra-bright backlight

• E2O Easy-to-Operate menu system simplifies navigation and settings

• Controls integrated on the microphone for convenient operation

• Automatic poll of up to six ships' GPS positions using DSC

• Submersible IPX8 waterproof rating for durability in harsh marine environments

• Supports all U.S., International, and Canadian marine channels

• Preset key for quick access to favorite channels

• NOAA weather channels with alert features for weather updates

• Programmable scan, priority scan, and dual watch capabilities

• NMEA in/out connections for compatibility with chart plotters

• Auto DSC test call and channel switching for safety

• Full-dot matrix display shows GPS position and time
