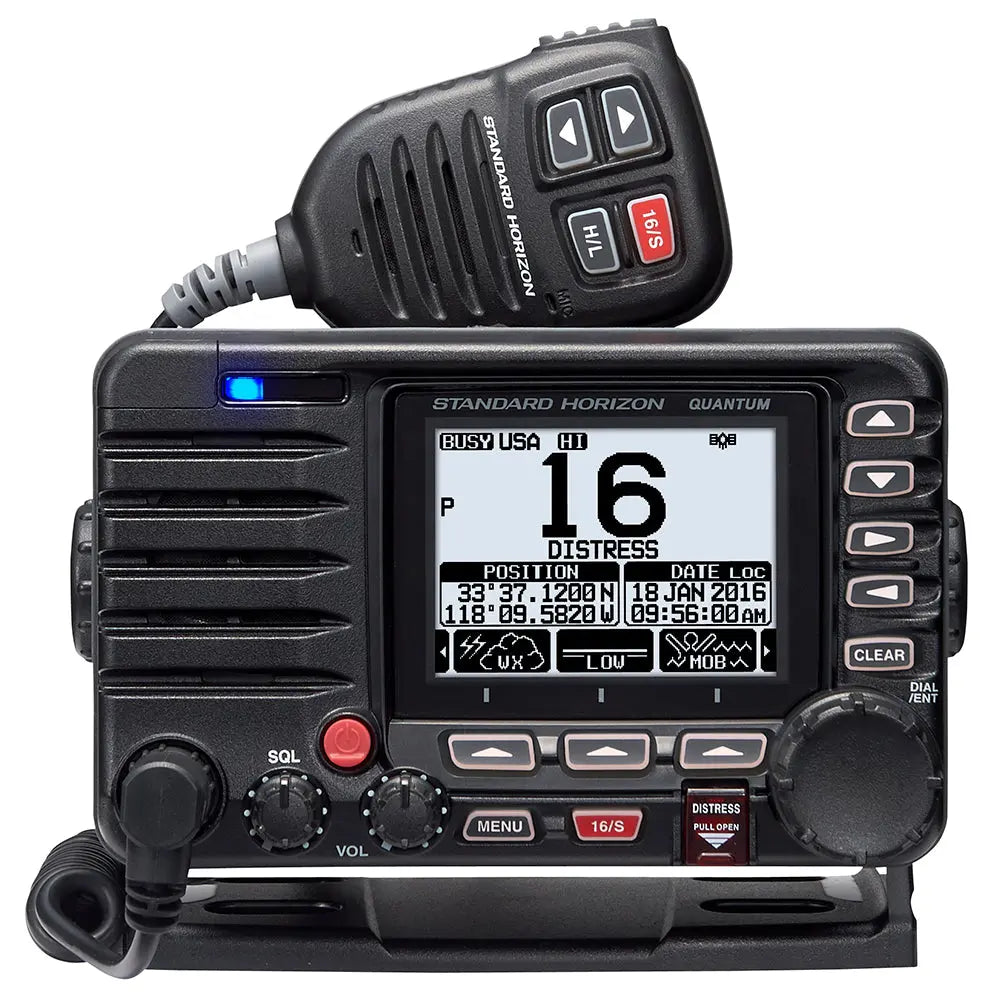

Standard Horizon Quantum GX6000 25W Commercial Grade Fixed Mount VHF Radio with NMEA 2000, AIS Receiver, and Wireless Control

25W Commercial Grade Fixed Mount VHF with NMEA 2000 Integrated AIS Receiver

NMEA 2000

Plug and play NMEA 2000 interface. The integrated NMEA 2000 supports all PGN's for Navigation, GPS, AIS and DSC function. Simply plug the NMEA 2000 into your existing network to complement your system with full VHF and DSC features.

Wireless Second Station RAM4W capability

Wirelessly control all radio functions of the GX6000 with the interface of the RAM4W wireless Remote Access Microphone. Using the SCU-30 Wireless Access Point plugged into the back of the radio, you have the capability of syncing up to 4 RAM4W units. With an operating range of up to 65 feet, the RAM4W allows you to control all Radio functions including DSC Calling, Position Polling, Group Calling and more, or use the RAM4W to intercom between the main station or between other wireless RAM4W units.

Built In AIS Receiver

The Quantum GX6000 displays AIS target information (MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG) on the large front panel display. Having this information allows you to contact an AIS Ship directly using DSC, shows your vessels position in relation to AIS targets and alerts you when an AIS ship may be approaching too close to your location via the Closest Point of Approach (CPA) Alarm.

Integrated 25W PA/Loud Hailer

The Quantum GX6000 includes a 25W Loud Hailer with Fog signals; Bells and Whistles with listen back. For added benefit, the last selected VHF channel can be heard when in the PA or Fog modes and the AIS Display may be accessed and used.

In addition, the Quantum GX6000 allows you to start a fog horn and then view the AIS page simultaneously.

Integrated Voice Scrambler

Loaded with an internal 32 code voice scrambler for private communications. the 32 code scrambler is compatible with all Standard Horizon 4 code scramblers already in use. Simply select a channel to be scrambled then select a common code between the transmitting and receiving radios and your communications are secure.

Features:

• Integrated AIS Receiver**
• Built-in Speaker in microphone handset

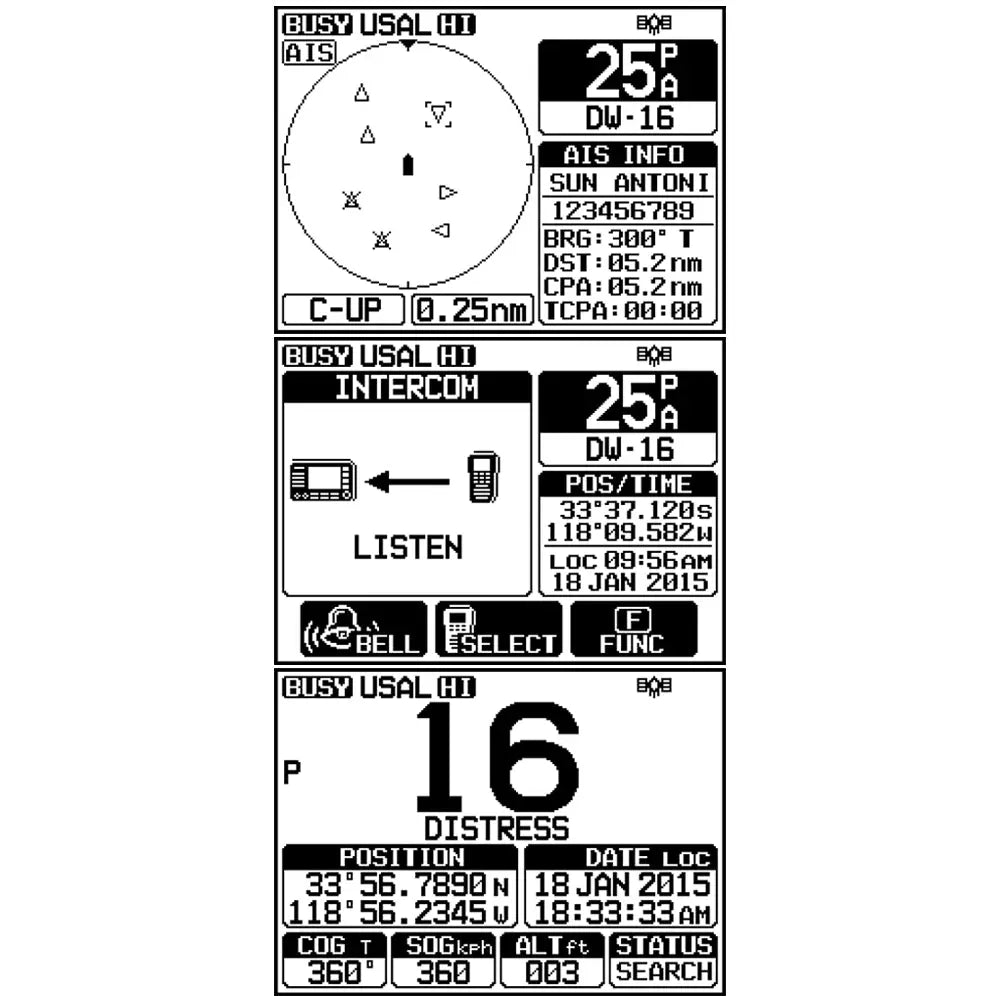

• AIS / AIS SART target display: MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG
• NMEA2000 and NMEA0183 compatible
• Programmable CPA and TCPA collision avoidance alarms
• Dual Zone 25W PA / Loud Hailer with preprogrammed fog signals and listen back

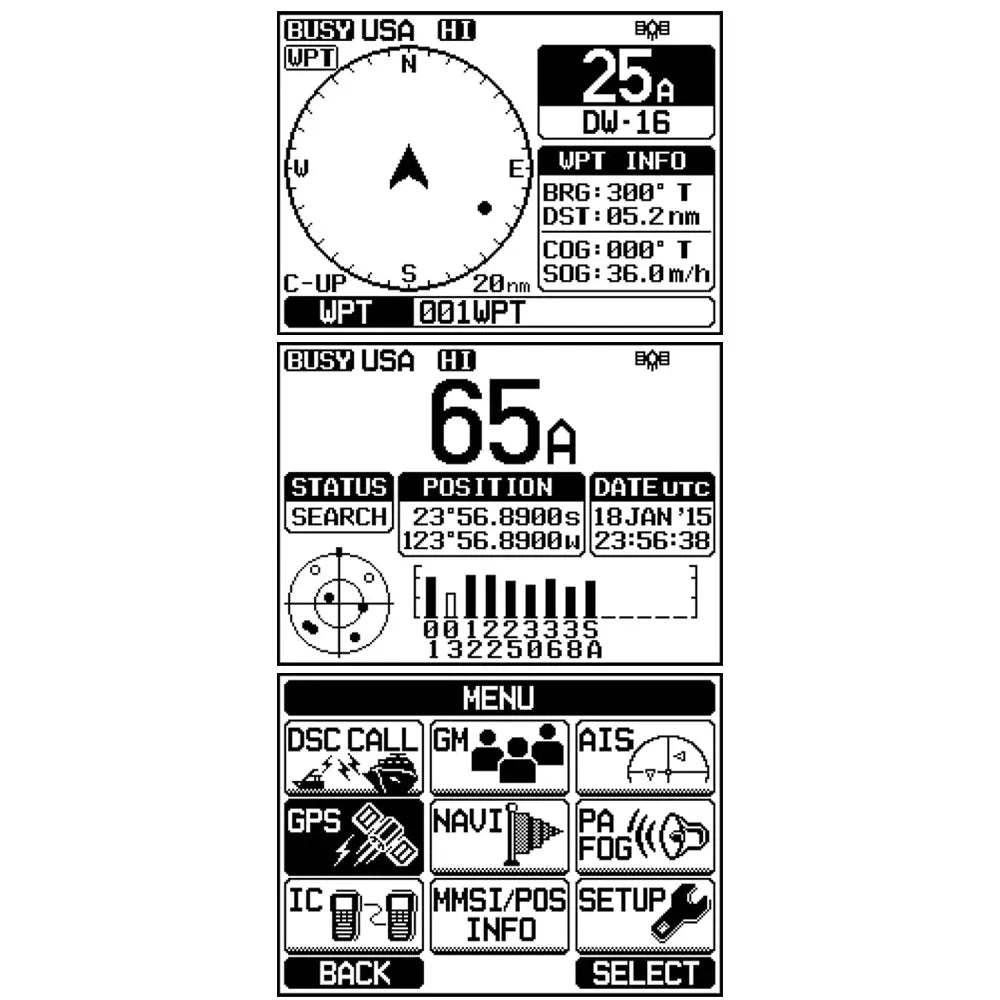

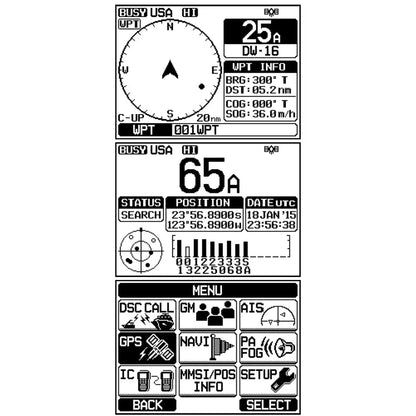

• GPS Compass, Waypoint and GPS status pages
• E2O Easy to Operate menu system
• Oversized rotary channel knob with push to enter
• Front panel microphone can be connected to rear panel and extended 20 feet using MEK-4 mic extension kit
• Capable of connecting two optional RAM4 or four Wireless RAM4W
• Integrated Voice Recorder to play back up to two minutes of RX receive audio
• Advanced 80dB Commercial Grade receiver with Local / Distance Attenuator
• Integrated 32 Code (FVP-42) and 4 Code (CVS2500A) Voice Scramblers
• Overall Dimensions 6.9"W x 4.3"H
• Flush-Mount Dimensions 6.2"W 3.7"H 6.2"D
• 3 Year Waterproof Warranty

**Requires a separate dedicated AIS antenna

The Standard Horizon Quantum GX6000 is a 25-watt commercial-grade fixed mount VHF radio designed for professional and serious recreational mariners. Its integrated NMEA 2000 interface allows seamless plug-and-play connectivity with existing navigation systems, supporting all PGNs for GPS, AIS, DSC, and other navigation functions. This compatibility simplifies system integration, enabling full VHF and DSC features to enhance safety and communication capabilities aboard your vessel. The large front panel display provides clear AIS target information, including MMSI, Call Sign, Ship Name, Bearing, Distance, Speed Over Ground, and Course Over Ground, making it easier to monitor nearby vessels and respond quickly. Alerts like the Closest Point of Approach (CPA) alarm notify you when an AIS target approaches too closely, adding an extra layer of situational awareness.

The GX6000 features wireless control via the RAM4W wireless remote microphone, allowing you to operate all radio functions from up to 65 feet away. This includes DSC calling, position polling, group calling, and intercom functions between the main station and up to three additional wireless units. The system is ideal for bridge crews or situations where remote operation is beneficial. Additionally, the built-in 25W loud hailer with fog signals, bells, and listen-back capability ensures clear communication and safety in foggy or noisy conditions. You can even start a fog horn and view AIS data simultaneously for comprehensive situational awareness.

Security is enhanced through the integrated 32-code voice scrambler, which ensures private communication channels between vessels. The microphone includes a built-in speaker and can be extended up to 20 feet with an optional extension kit, offering flexible installation options. The GX6000 also includes features like a voice recorder, programmable collision avoidance alarms, and dedicated pages for GPS, waypoint management, and system status. Its robust construction and waterproof warranty make it suitable for demanding marine environments, providing reliable performance in all weather conditions.Designed for ease of operation, the GX6000 employs an intuitive menu system, oversized rotary channel knob, and front panel microphone connectivity. Its compact dimensions and flush-mount design facilitate installation on a variety of vessel types, ensuring a professional and streamlined look. Whether you need advanced AIS capabilities, wireless control, or a powerful VHF radio with integrated safety features, the Standard Horizon Quantum GX6000 is a comprehensive solution for maritime communication needs.

Features:

• Integrated AIS Receiver for vessel tracking and collision avoidance

• Built-in speaker in microphone handset for clear audio

• Displays AIS target information: MMSI, Call Sign, Ship Name, Bearing, Distance, Speed Over Ground, and Course Over Ground

• Supports NMEA2000 and NMEA0183 communication protocols

• Programmable collision avoidance alarms for CPA and TCPA

• Dual zone 25W PA / Loud Hailer with fog signals and listen-back feature

• Includes GPS compass, waypoint, and GPS status pages

• E2O easy-to-operate menu system with oversized rotary channel knob

• Front panel microphone can be extended up to 20 feet with optional extension kit

• Supports connection of up to two RAM4 units or four Wireless RAM4W units for wireless control

• Built-in voice recorder capable of storing up to two minutes of received audio

• Advanced 80dB commercial-grade receiver with local/distance attenuator

• Internal 32-code and 4-code voice scramblers for secure communication

• Overall dimensions suitable for flush-mount installation

• Three-year waterproof warranty for reliability in marine environments
