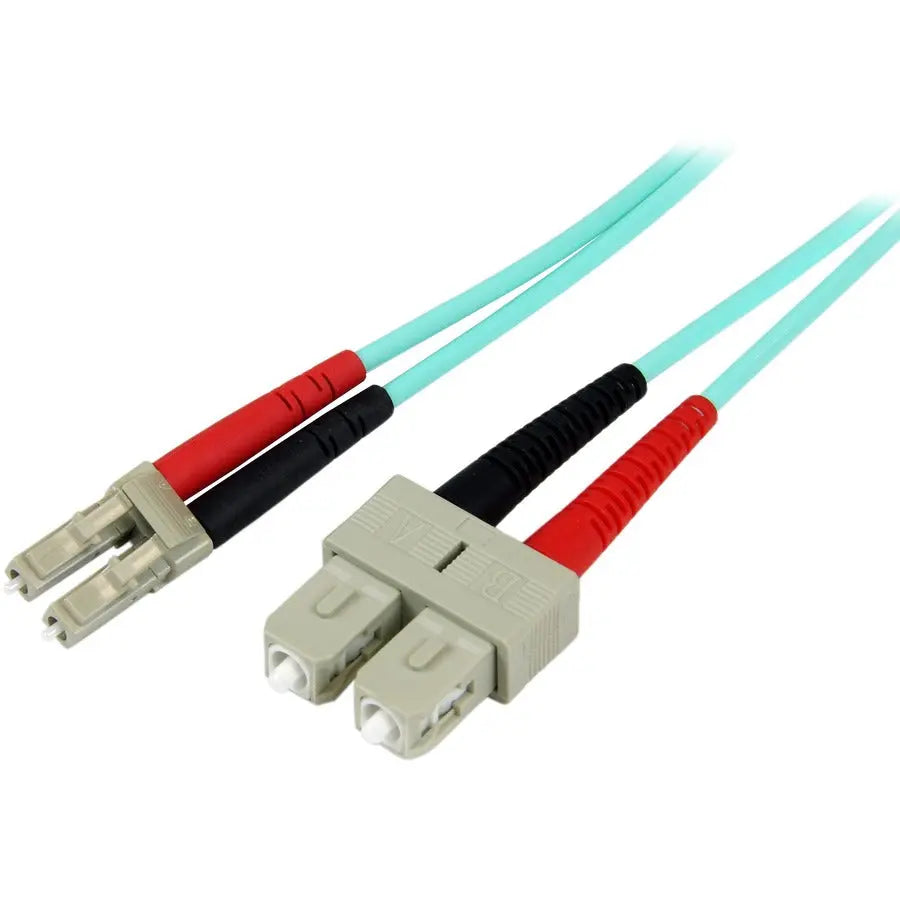

StarTech.com 10m (33ft) LC/UPC to SC/UPC OM3 Multimode Fiber Optic Duplex Cable with LSZH Jacket

StarTech 10m (30ft) LC/UPC to SC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125 Zipcord, 100G, LSZH Fiber Jumper Cord

The StarTech.com A50FBLCSC10 is a high-performance 10-gigabit multimode fiber optic cable designed for demanding network environments. Featuring a durable 50/125 micron OM3 aqua fiber core, this cable supports data transfer speeds up to 100 Gbps, making it suitable for backbone connections between switches, routers, and high-end network equipment. Its full-duplex design with LC and SC connectors ensures reliable and low-loss data transmission across a variety of high-density applications. The cable's 850nm or 1300nm LED/VCSEL compatibility and modal bandwidth of over 2000MHz·km at 850nm provide excellent bandwidth and performance for data centers, SANs, and enterprise networks. The compact 2.9mm outer diameter, combined with a bend radius of just 1.2 inches static and 2.4 inches dynamic, allows flexible installation even in tight spaces.
The cable's LSZH (Low-Smoke Zero-Halogen) jacket enhances safety by minimizing smoke, fumes, and toxicity in the event of a fire, making it ideal for industrial, commercial, educational, and residential environments with strict safety codes. Each cable undergoes individual testing for signal integrity, ensuring consistent performance and reliability. The TIA/EIA compliance and attenuation levels below 2.3dB/km meet industry standards, guaranteeing high-quality data transfer with minimal signal loss.
Constructed with immune-to-EMI 50/125 micron fiber core and a protective Aramid fiber sheath, this cable offers improved tensile strength and crush resistance, suitable for demanding physical environments. The LC/UPC and SC/UPC connectors feature polished ceramic ferrules, delivering insertion loss below 0.3dB for optimal signal clarity. Backed by a lifetime warranty, the StarTech.com OM3 fiber optic cable provides dependable, high-speed connectivity for demanding network infrastructures, ensuring long-term performance and safety for a wide range of applications.

Features:

• SPECS: 10m (33ft); Color: Aqua (OM3); LC/SC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life

• COMPATIBILITY: OM3 LC/SC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2

• RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards

• QUALITY CONSTRUCTION: 50/125μm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/UPC and SC/UPC connectors with polished ceramic ferrules for low insertion loss

• OM3 FIBER CABLE: Laser-optimized multimode fiber delivers up to 100 Gbps Ethernet; Full-duplex design ensures reliable high-speed data transfer
