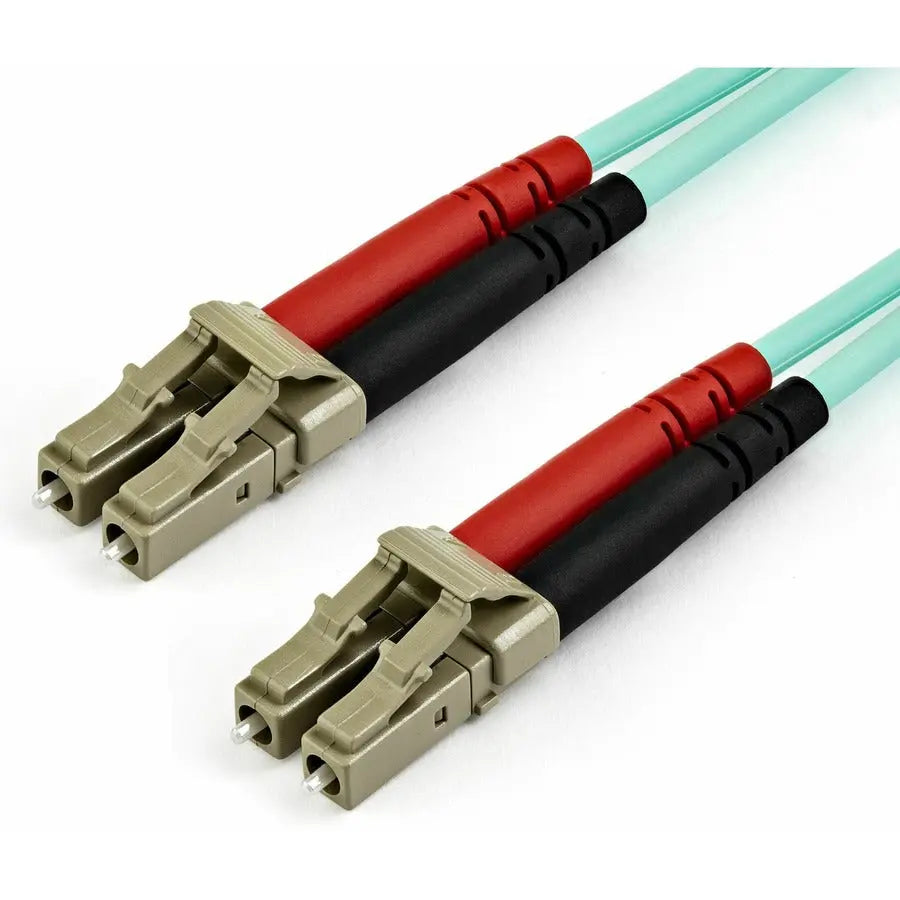

StarTech.com 10M OM4 Duplex LC Fiber Optic Patch Cable for 40G and 100G Networks

StarTech.com 10m (30ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord

The StarTech.com 10-meter OM4 Duplex LC Fiber Optic Patch Cable is engineered to provide high-speed, reliable connectivity for demanding data center applications. Featuring laser-optimized multimode fiber (LOMMF), this aqua-colored cable supports bandwidths suitable for 40GBase-SR4, 100GBase-SR10, and legacy LAN equipment, ensuring seamless performance across various network standards. The cable’s design incorporates LC/LC UPC connectors with polished ceramic ferrules, delivering insertion loss below 0.3dB for optimal signal integrity and minimal data loss. Its 50/125-micron fiber core and cladding are immune to electromagnetic interference, making it ideal for densely populated server environments and high-density storage setups. The protective Aramid fiber sheath enhances tensile strength and crush resistance, providing durability in challenging deployment conditions. The LSZH jacket ensures safety by emitting low smoke and fumes if exposed to heat or fire, making it suitable for confined spaces and compliant with safety standards. Each cable undergoes individual testing to verify optical performance, guaranteeing compatibility and reliability for critical network infrastructure.

This patch cable supports data transfer rates up to 100 Gbps Ethernet, making it suitable for SANs, data servers, SFP+ and QSFP+ transceivers, and other high-bandwidth applications. Its full-duplex zip-cord design, combined with color-coded TX/RX connectors, simplifies installation and troubleshooting. The cable’s bend radius specifications allow for flexible routing in tight spaces without compromising performance. Made in China and backed by a lifetime warranty, the StarTech.com OM4 fiber optic patch cable ensures long-term durability and consistent high performance for your high-speed network needs.

Features:

• SPECS: 10 meters (33 feet); Aqua color (OM4); LC/LC UPC connectors; Supports 850nm or 1300nm LED/VCSEL sources; Modal bandwidth of 2000MHz/km at 850nm; Cable outer diameter of 2.9mm; Static bend radius of 1.2 inches, dynamic bend radius of 2.4 inches; Backed by a lifetime warranty

• COMPATIBILITY: Supports 1/10/40/100 Gbps for high-density network applications including SANs, data servers, SFP+ and QSFP+ transceivers over standards such as 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10

• RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits minimal smoke and fumes if burned; Attenuation under 2.3dB/km meets or exceeds industry standards

• QUALITY CONSTRUCTION: 50/125-micron fiber core/cladding is immune to EMI; Protective Aramid fiber sheath improves tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules ensure low insertion loss below 0.3dB

• OM4 FIBER CABLE: Delivers up to 100 Gbps Ethernet; Full-duplex zip-cord design with color-coded TX/RX connectors simplifies cabling for servers and storage equipment
