SKU:PEXUSB3S24

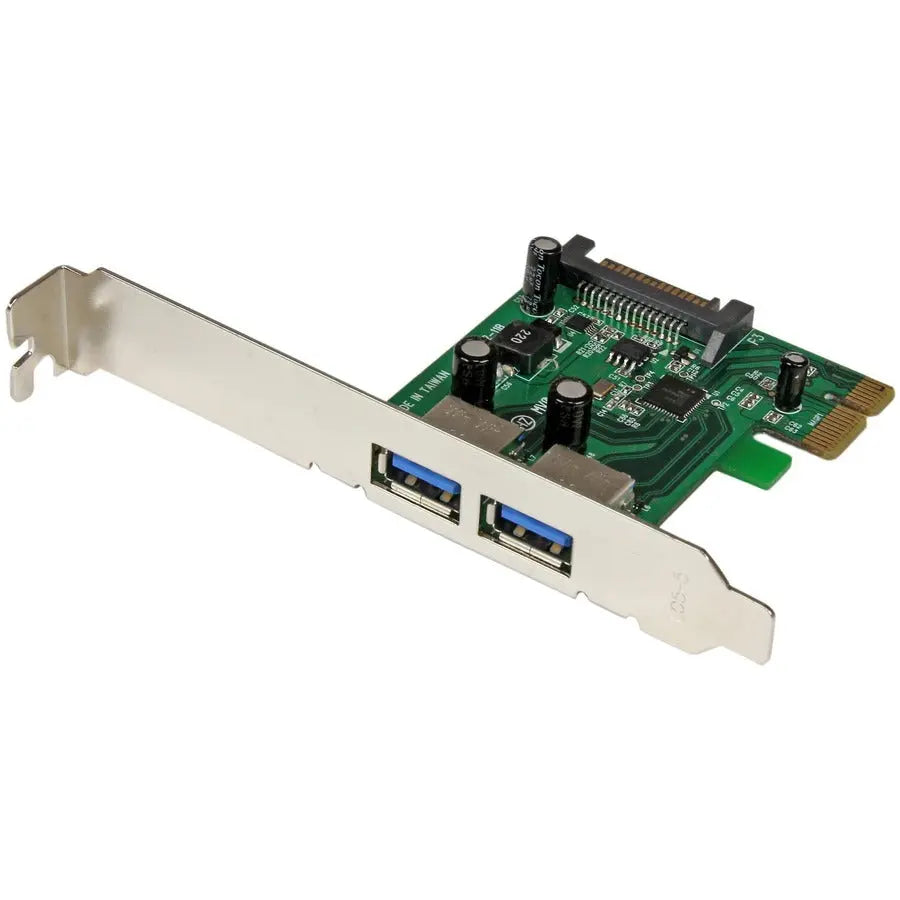

StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power - 5Gbps

StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power - 5Gbps

Regular price $41.99 USD
Sale price $41.99 USD Regular price
Sale Sold out
Shipping calculated at checkout.

StarTech.com 2 Port PCIe USB 3.0 Card Adapter: High-Speed Connectivity Solution

StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power - 5Gbps

The PEXUSB3S24 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0).
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
UASP is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

More from the Manufacturer

More from the Manufacturer

  • Includes a Low-Profile/half-height installation bracket
  • Backward compatible with USB 2.0 and USB 1.0/1.1 devices
  • Fully compliant with USB 3.2 Gen 1 rev 1.0 and Intel xHCI rev 1.0 specifications
  • Supports USB Battery Charging Specification 1.2
  • Optional SATA power connector provides up to 900mA per USB port
  • Supports data rates up to 5 Gbps
  • Compliant with PCI Express 2.0 specifications
  • Provides two external USB 3.2 Gen 1 ports with UASP support



High-Speed USB 3.0 SuperSpeed Performance





The StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter offers blazing-fast data transfer rates of up to 5Gbps. Designed for users who need to enhance their computer’s expandability, this adapter supports USB 3.0 ports that are backward compatible with USB 2.0 and 1.1 devices. Whether you’re transferring large media files, backing up data, or connecting high-speed USB peripherals, this card ensures efficient and reliable performance. The SuperSpeed USB technology reduces transfer times significantly, making it ideal for demanding tasks and enhancing overall system responsiveness.





UASP Support for Optimized Data Transfers





One of the key advantages of the StarTech.com USB 3.0 card adapter is its support for UASP (USB Attached SCSI Protocol). UASP enhances the data transfer efficiency by reducing overhead and improving transfer speeds compared to traditional Bulk-Only Transport. This technology benefits connected SSDs, external hard drives, and high-performance flash drives by maximizing throughput and minimizing latency. By incorporating UASP, the adapter ensures smooth file transfers, better multitasking capability, and improved performance during heavy data operations.





SATA Power Connector for Reliable Performance





To maintain stable power delivery, the StarTech.com PCIe USB 3.0 adapter includes a SATA power connector. This feature provides additional power beyond what the PCIe slot offers, supporting power-hungry USB devices seamlessly. It prevents power shortages or data dropouts when connecting external devices like USB hubs, docking stations, or hard drives that demand more power. The reliable power supply ensures consistent operability, making the card an excellent choice for a range of USB peripherals that require stable, high current inputs.





18 in stock


View full details
UPC 0065030855587
