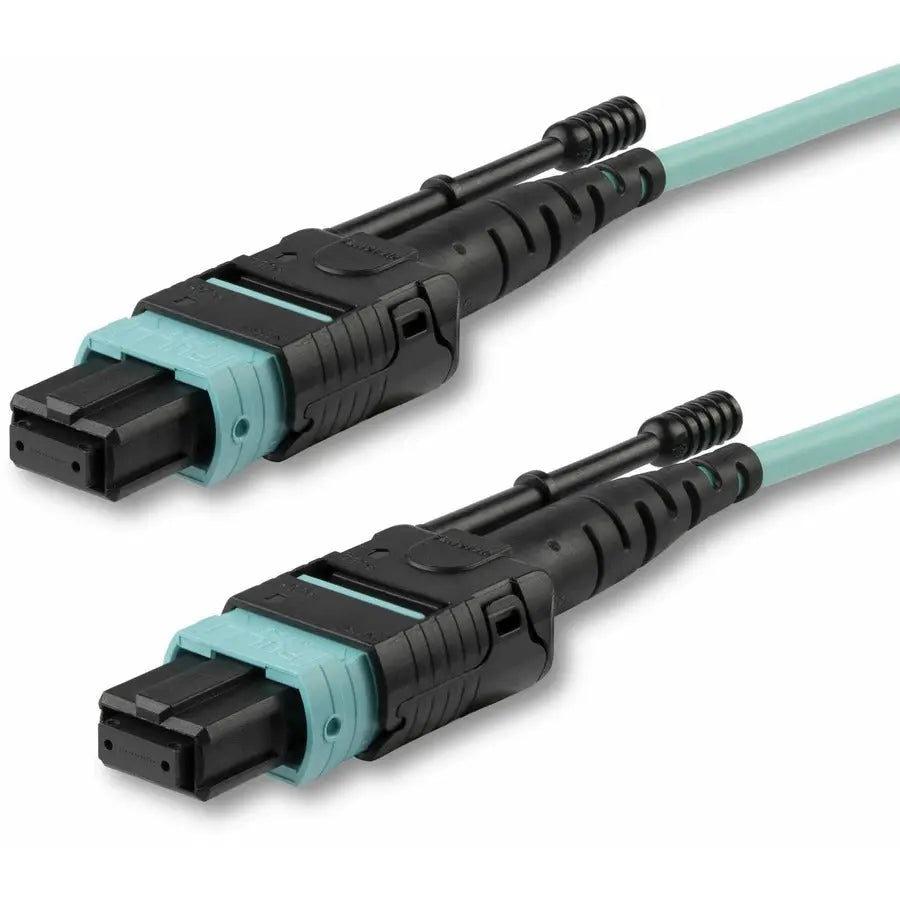

StarTech.com 3m (10ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, OFNP Plenum, 50/125μm, 40G, Low Insertion Loss, MPO Fiber Jumper Cord

StarTech 3m (10ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, OFNP Plenum, 50/125µm, 40G, Low Insertion Loss, MPO Fiber Jumper Cord

The StarTech.com MPO12PL3M fiber optic network cable provides a reliable high-speed connection for data centers and enterprise networks. Designed with 12 fibers in a compact MTP connector, this 3-meter (10-foot) OM3 multimode cable supports data transfer rates up to 40Gbps, making it ideal for high-density environments such as SANs, data servers, and QSFP+ transceivers. The fiber core, with a diameter of 50/125 microns, ensures immunity to electromagnetic interference, maintaining signal integrity across demanding installations. The plenum-rated OFNP jacket offers fire safety compliance, suitable for in-wall and riser applications, while the low-smoke emission minimizes hazards in case of fire. Each cable has been individually tested for insertion loss and return loss, with test reports included, ensuring consistent performance and reliability. The MTP connectors feature PC polished ends and push-pull tabs with flexible extensions, facilitating easy installation and removal even in tight spaces. This cable's design allows for seamless connection between network switches, servers, and patch panels, supporting breakout configurations from 40Gbps to multiple 10Gbps links. The robust construction, rated for plenum and in-wall use, combined with its high modal bandwidth, ensures high-performance data transmission over extended distances. Backed by a lifetime warranty, this fiber optic jumper cord is a dependable choice for mission-critical networks seeking optimal speed, durability, and safety compliance.

Features:

• SPECS: 3m (9.8ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to MTP(F)/PC; 12-Fiber Type-A Straight Pinout; 850nm or 1300nm VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 3.0mm; Insertion Loss: 0.5dB, Return Loss: 20dB; Backed for Life

• COMPATIBILITY: OM3 Multimode cable with MTP connectors supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers

• RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; 12-fiber MTP/MPO connectors with PC polished ends keeps insertion loss below 0.5dB

• QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125"m fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal

• OM3 FIBER CABLE: MTP/MPO Plenum-Rated OM3 Multimode Fiber Cable delivers up to 40 Gbps; Supports various networking devices at different speeds; Suitable for high-density data center environments
