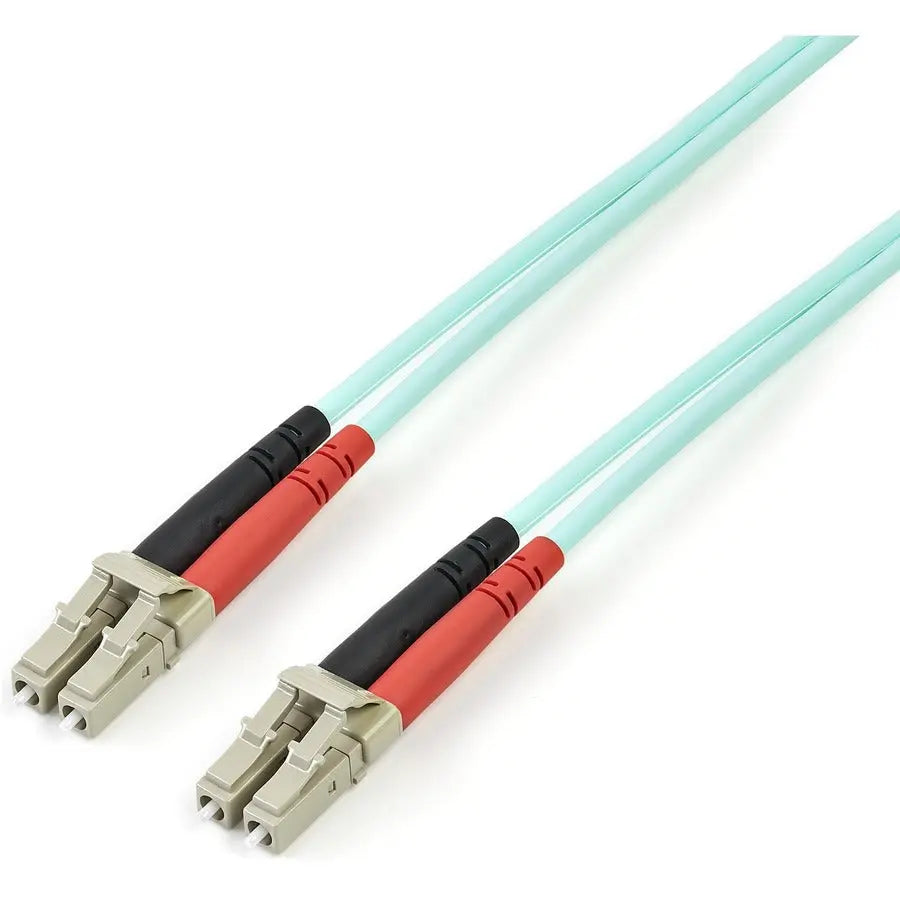

StarTech.com 3m Aqua Multimode LC/LC Fiber Optic Patch Cable for High-Speed Data Networks

StarTech 3m (10ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125 Zipcord, 100G, LSZH Fiber Jumper Cord

The StarTech.com A50FBLCLC3 is a 3-meter (about 10 feet) duplex fiber optic patch cable designed for high-bandwidth data transmission over multimode OM3 fiber. Featuring 50/125 micron laser-optimized fiber, this cable supports data rates up to 100 Gbps, making it ideal for enterprise, data center, and high-density network applications. Its Aqua-colored LSZH (Low-Smoke Zero-Halogen) jacket ensures safety in environments where fire safety and low toxicity fumes are critical. The cable’s construction guarantees durability and reliable performance, with each unit individually tested to meet industry standards for optical insertion loss and signal integrity. The LC/LC connectors with UPC polished ceramic ferrules provide low insertion loss, typically below 0.3dB, ensuring minimal signal degradation across long runs.

This OM3 fiber cable is backward compatible with older OM3 networks and supports various high-speed network protocols such as 1/10/40/100 Gbps Ethernet, SANs, fiber switches, and transceivers like SFP+, QSFP+, and QSFP28. Its 50/125 micron core and cladding are immune to electromagnetic interference, making it suitable for environments with high electrical noise. The cable’s protective Aramid fiber sheath enhances tensile strength and crush resistance, ensuring longevity even in demanding installations. Its compact 2.9mm outer diameter and bend radius specifications allow for flexible routing in tight spaces without compromising performance.

Designed for reliability and safety, the StarTech.com fiber patch cable complies with TIA/EIA standards and environmental regulations including EU RoHS and WEEE directives. Its green color family makes it easy to identify in complex network setups. The product is backed by a lifetime warranty, reflecting its quality and the manufacturer’s confidence in its durability. Whether deploying in data centers, enterprise networks, or industrial environments, this fiber optic jumper provides a secure, high-performance solution for extending your high-speed network infrastructure efficiently and safely.

Features:

• SPECS: 3m (9.8ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHzkm at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life

• WIDE COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; Suitable for SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers

• RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low smoke and fumes during fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards

• QUALITY CONSTRUCTION: 50/125μm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath improves tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules ensure low insertion loss

• OM3 FIBER CABLE: Laser-Optimized Multimode Fiber delivers up to 100 Gbps Ethernet; Full-duplex zipcord design; environmentally friendly and flame retardant LSZH jacket
