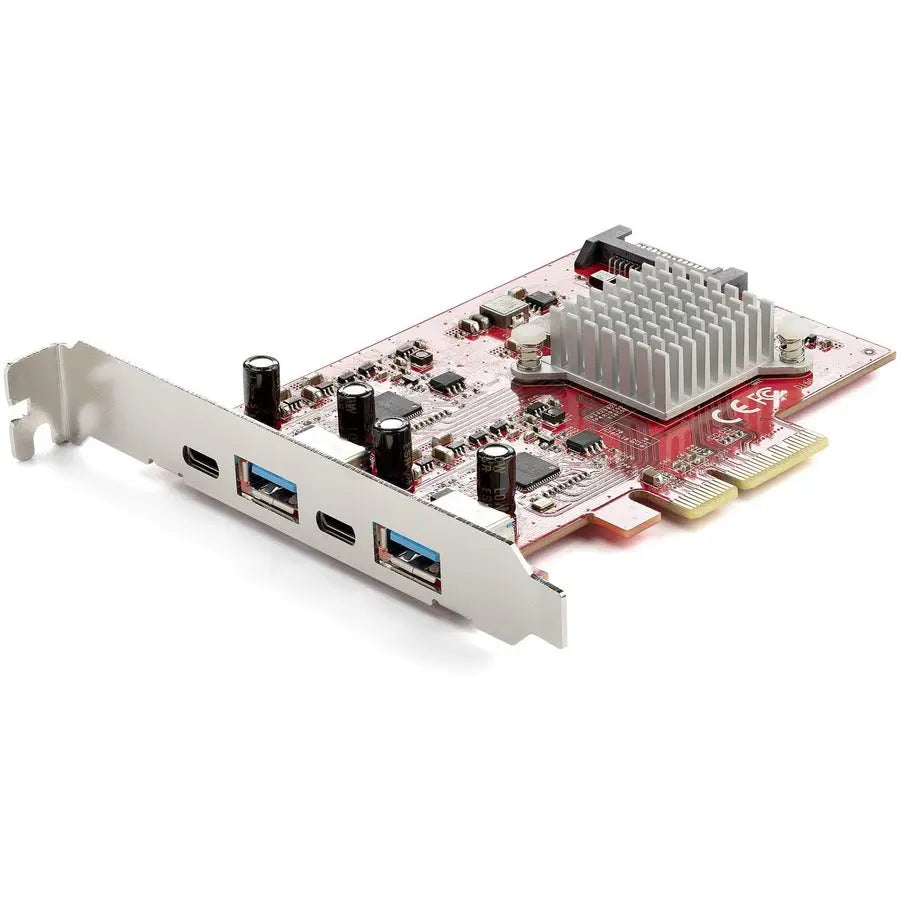

StarTech.com 4-Port USB 3.2 Gen 2 PCI Express Expansion Card with Dual ASM3142 Controllers (Part PEXUSB312A2C2V)

StarTech 4-Port USB PCIe Card, 10Gbps USB PCI Express Expansion Card w/2 Controllers, 2x USB-C & 2x USB-A ports (USB 3.2 Gen 2), TAA

Enhance your computer's connectivity and performance with the StarTech.com 4-Port USB 3.2 Gen 2 PCIe expansion card. Designed for desktops and servers, this plug-in card provides four high-speed USB ports, including two USB Type-C and two USB Type-A ports, all capable of supporting data transfer rates up to 10Gbps. The dual ASM3142 controllers ensure optimal bandwidth distribution, enabling simultaneous high-speed connections without bottlenecks. Whether you're transferring large files, using external SSDs, or connecting multiple peripherals, this card ensures you work faster and more efficiently. Its compact 4.4-inch form factor fits seamlessly into full-profile PCIe 3.0 x4 slots, making installation straightforward and unobtrusive. The optional SATA power connector supplies supplemental power to the USB ports, ensuring reliable operation even when motherboard power is insufficient. Backward compatibility with USB 3.0, 2.0, and 1.1 devices allows you to connect legacy peripherals without additional expense. The card supports plug-and-play installation on Windows, Linux, and macOS systems, with automatic driver recognition for quick setup. Built with environmentally friendly materials compliant with EU RoHS and WEEE standards, this device is an eco-conscious choice for professional and personal use. Backed by a two-year warranty and lifetime technical support, the StarTech.com PCIe USB 3.2 expansion card is a reliable upgrade that maximizes your system’s connectivity and data transfer capabilities. Please note that this model does not support DisplayPort Alt Mode or USB Power Delivery, focusing solely on high-speed data connectivity.

Features:

• High performance: 4 port USB PCIe card with dual ASM3142 controllers supporting up to 20Gbps total bandwidth across 4 ports

• Transfer speeds up to 10Gbps: Supports mixed-speed devices, UASP support, ideal for external storage like SSDs, HDDs, NVMe drives, compatible with USB 3.1/3.0/2.0

• Optional power: Includes SATA power connection for supplemental power supply to ports, providing up to 5V 3A/15W per USB-C port and 5V 0.9A/4.5W per USB-A port

• Compatibility: Installs in full-profile PCIe 3.0 x4 slots on desktops and servers; supports Windows, Linux, and macOS with auto driver installation (Windows 8 and later)

• Trusted brand: Backed by StarTech.com’s 30+ years of professional-grade hardware solutions; 2-year warranty with lifetime technical support
