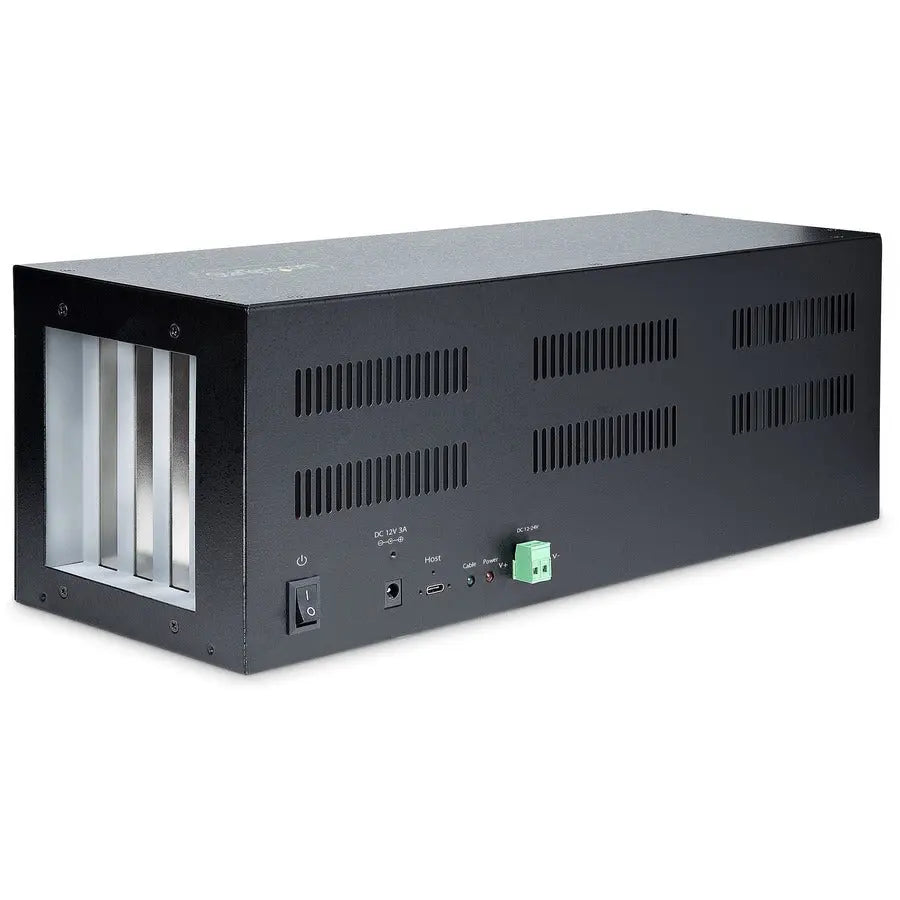

StarTech.com 4-Slot PCIe Expansion Chassis with USB-C Host Adapter and Rugged Steel Construction

StarTech 4-Slot PCIe Expansion Chassis, External PCIe Slots for PC, PCIe 2.0 w/10Gbps Throughput, PCI Express Expansion Box, TAA

The StarTech.com 4PCIE-PCIE-ENCLOSURE provides a reliable and versatile solution for expanding PCIe connectivity on desktop computers and servers. Constructed with durable SECC galvanized steel, this external PCIe expansion chassis is designed to operate efficiently in harsh environments, with an operating temperature range from 32°F to 140°F (0°C to 60°C). Its vented design ensures passive cooling and quiet operation, making it suitable for demanding applications in data centers, labs, or office environments. The chassis supports up to four PCIe x1 add-on cards, enabling users to maximize I/O capabilities by adding Ethernet, fiber, USB, serial, or other PCIe cards without the need for internal expansion slots.

Connecting the chassis is straightforward using the included PCIe 2.0 x2 host adapter card and a 5.9-foot (1.8-meter) USB Type-C locking cable. The proprietary USB-C PCIe x2 interface provides up to 10Gbps of total bandwidth, facilitating fast data transfer rates essential for high-performance peripherals. The low-profile bracket increases compatibility with small form factor systems, allowing easy installation in various system configurations. This design ensures seamless integration into existing setups, reducing the need for costly upgrades or internal modifications.

The chassis is OS independent, requiring no software or driver installation for basic operation, and supports Windows, Linux, and macOS. However, installed add-on cards might require specific drivers depending on their functions. Power options include the supplied 12V 3A power adapter or a terminal block port supporting 12 to 24V and 3A, providing flexibility for different power environments. Security features such as screw-locks on the USB-C cable enhance connection stability. Suitable for server applications, hardware testing, or expanding I/O capabilities, this chassis provides a practical, durable solution that reduces downtime and simplifies hardware upgrades.

In addition to its robust construction, the chassis includes comprehensive accessories such as mounting brackets, screws, and a quick-start guide for effortless setup. Backed by a two-year limited warranty and lifetime technical support, it offers a dependable choice for IT professionals seeking to increase PCIe slot capacity without internal modifications. Whether upgrading existing systems or deploying new hardware, the StarTech.com PCIe expansion chassis delivers speed, durability, and ease of use in a compact, professional package.

Features:

• Expansion chassis for PCIe cards: supports up to four external PCIe x1 slots, with PCIe 2.0 x2 USB-C host interface and locking port, including a 5.9-foot locking cable

• Rugged construction: built with SECC galvanized steel to withstand harsh environments and operate within temperatures up to 140°F; vented design for passive cooling; quiet operation; includes a 12V 3A power adapter and terminal block support for 12-24V

• Hassle-free upgrades: easily connect add-on cards such as USB, Ethernet, SFP, Serial, and I/O cards to systems with limited internal expansion slots; reduces deployment time and costs

• Compatibility: OS independent design supporting Windows, macOS, and Linux; no drivers required for operation; installed cards may need specific drivers; not suitable for GPUs

• Designed for IT professionals: durable steel construction, easy installation, comprehensive accessories, and reliable two-year warranty with lifetime technical support
