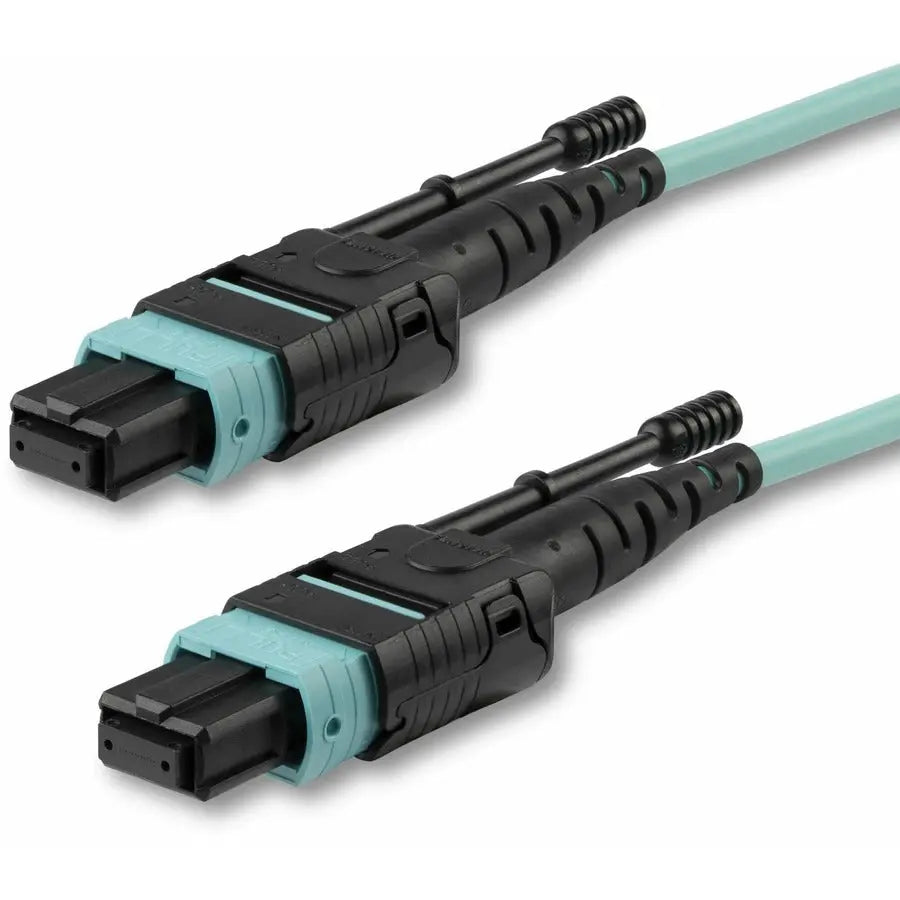

StarTech.com 5m (16.4ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable - Plenum Rated, 40Gbps, Low Loss MPO Jumper Cord

StarTech 5m (16.4ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, OFNP Plenum, 50/125µm, 40G, Low Insertion Loss, MPO Fiber Jumper Cord

The StarTech.com MPO12PL5M fiber optic cable offers a reliable high-speed connectivity solution for demanding data center and enterprise networks. This 5-meter (16.4-foot) OM3 multimode cable features MTP (Multi-fiber Termination Push-on) connectors that support data transmission speeds up to 40Gbps, making it ideal for high-density SANs, servers, and transceivers. Its Aqua-colored, plenum-rated jacket ensures compliance with fire safety standards, suitable for in-wall and riser installations. Each cable is individually tested for insertion loss and return loss, with comprehensive test reports included to guarantee signal integrity. The cable's design incorporates a 50/125 micron fiber core with low EMI susceptibility, providing immunity to electromagnetic interference and ensuring stable, high-quality data transfer. The MTP connectors feature push-pull tabs with flexible extensions, enabling quick, tool-free installation and removal, which is essential for efficient network upgrades and maintenance. This MPO jumper cable is engineered for durability and safety, emitting minimal smoke and fumes if combusted, thanks to its OFNP jacket. The cable's compact 3.0mm outer diameter makes it suitable for crowded patch panels and fiber enclosures. Backed by a lifetime warranty, this fiber optic cable ensures long-term performance and peace of mind for your high-speed network infrastructure. Whether you are establishing a one-to-one link between switches or breaking out connections to multiple devices, this StarTech.com MPO cable provides a versatile, high-performance solution that meets the needs of advanced networking environments.

Features:

• SPECS: 5m (16.4ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to MTP(F)/PC; 12-Fiber Type-A Straight Pinout; 850nm or 1300nm VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 3.0mm; Insertion Loss: 0.5dB, Return Loss: 20dB; Backed for Life

• COMPATIBILITY: OM3 Multimode cable with MTP connectors supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers

• RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; 12-fiber MTP/MPO connectors with PC polished ends keeps insertion loss below 0.5dB

• QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125 micron fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal

• OM3 FIBER CABLE: MTP/MPO Plenum-Rated OM3 Multimode Fiber Cable delivers up to 40 Gbps; Supports various networking devices at differing speeds; Compact design ideal for dense patch panels
