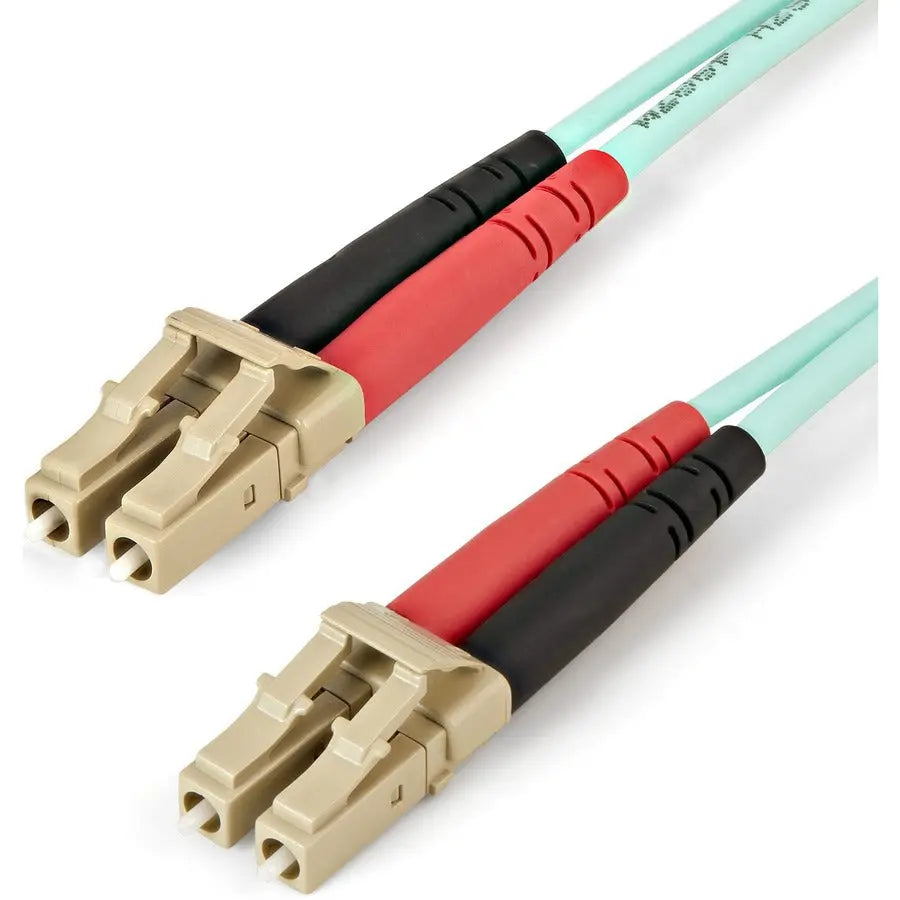

StarTech.com 5m (16.4ft) OM4 Duplex LC/LC Fiber Optic Network Cable with Low Smoke Zero Halogen Jacket

StarTech 5m (16.4ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord

The StarTech.com 450FBLCLC5 fiber optic cable provides a reliable connection for high-speed networks supporting 40G and 100G applications. Designed with a durable aqua-colored OM4 multimode fiber core, this cable ensures efficient data transmission over short and medium distances with minimal signal loss. Its LC/LC UPC connectors feature polished ceramic ferrules, which guarantee low insertion loss and high performance in demanding network environments. The cable's LSZH (Low-Smoke Zero Halogen) flame-retardant jacket enhances safety by emitting minimal smoke and toxic fumes in case of fire, making it suitable for industrial facilities, schools, and central offices where safety regulations are critical.

Features:

• SPECS: 5m (16.4ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life

• COMPATIBILITY: Supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10

• RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards

• QUALITY CONSTRUCTION: 50/125"m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB

• OM4 Fiber Cable: Laser-optimized multimode fiber delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for easy cabling in data centers and server rooms

• Laser-optimized multimode fiber (LOMMF) supports high-bandwidth network connections

• Compatible with 850nm VCSEL source for versatile deployment

• Ideal for industrial settings, schools, and central offices where building safety codes are enforced

• Attenuation loss: Meets or exceeds industry standards for reliable performance
