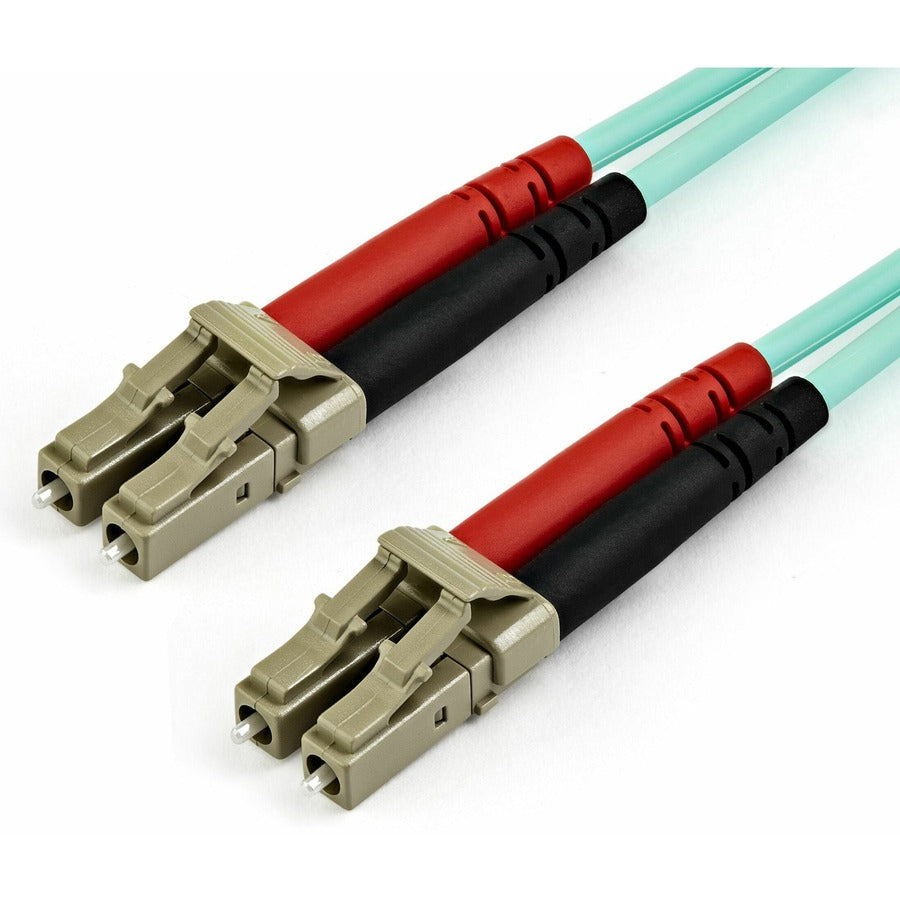

StarTech.com 7m LC/LC OM4 Multimode Fiber Optic Patch Cable - 50/125μm, Aqua, Supports 100Gbps Networks

StarTech 7m (22ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord

Enhance your high-bandwidth network infrastructure with the StarTech.com 7-meter LC/LC OM4 multimode fiber optic patch cable. Designed for data centers, SANs, and high-density applications, this cable provides reliable, high-speed connectivity supporting up to 100 Gbps Ethernet. Its laser-optimized multimode fiber (LOMMF) ensures minimal signal loss and high modal bandwidth, making it suitable for 850nm and 1300nm VCSEL and LED light sources. The cable's aqua outer jacket adheres to safety standards with its low-smoke, zero-halogen (LSZH) construction, providing safety during fire incidents and minimizing toxic emissions. Its compatibility with existing 50/125μm fiber equipment and backward compatibility with OM3 protocols make it a flexible choice for evolving networks. The robust connectors feature UPC polishing, which significantly improves return loss over standard PC polish, ensuring cleaner signal transmission. Molded strain reliefs protect the connectors from wear caused by bending, while the aramid fiber reinforcement enhances tensile strength and durability. This full-duplex zip-cord cable offers immunity to electromagnetic interference (EMI), maintaining signal integrity even in electrically noisy environments. Certified to meet industry standards, each cable undergoes individual testing for optical insertion loss, guaranteeing dependable performance and long-term reliability. The compact design, with a cable diameter of just under 3mm, allows for high-density patching in tight spaces. Whether used for SFP+, QSFP+, or QSFP28 transceivers, this fiber patch cable ensures seamless, high-speed data transmission across your network infrastructure.

Features:

• SPECS: 7m (23ft); Color: Aqua (OM4); LC/LC UPC connectors; 50/125μm core/cladding; supports 850nm or 1300nm LED/VCSEL sources; modal bandwidth of 2000MHz·km at 850nm; cable outer diameter of 2.9mm; static bend radius of 1.2 inches, dynamic bend radius of 2.4 inches; backed by a lifetime warranty

• WIDE COMPATIBILITY: Supports 1/10/40/100 Gbps networks; backward compatible with OM3 fiber; ideal for high-density network applications such as SANs, data servers, fiber switches, and transceivers including SFP+, QSFP+, and QSFP28

• SAFETY AND RELIABILITY: Individually tested for signal integrity; features an LSZH jacket that emits low smoke and toxic fumes if exposed to fire; attenuation is under 2.3dB/km, meeting or exceeding industry standards

• QUALITY CONSTRUCTION: Equipped with UPC polished LC/LC connectors that improve return loss; molded strain reliefs reduce connector wear; includes aramid fiber for increased tensile strength and durability

• OM4 FIBER CABLE: Laser-optimized multimode fiber supports up to 100 Gbps Ethernet; immune to EMI interference; designed as a full-duplex zip-cord for efficient high-speed data transmission
