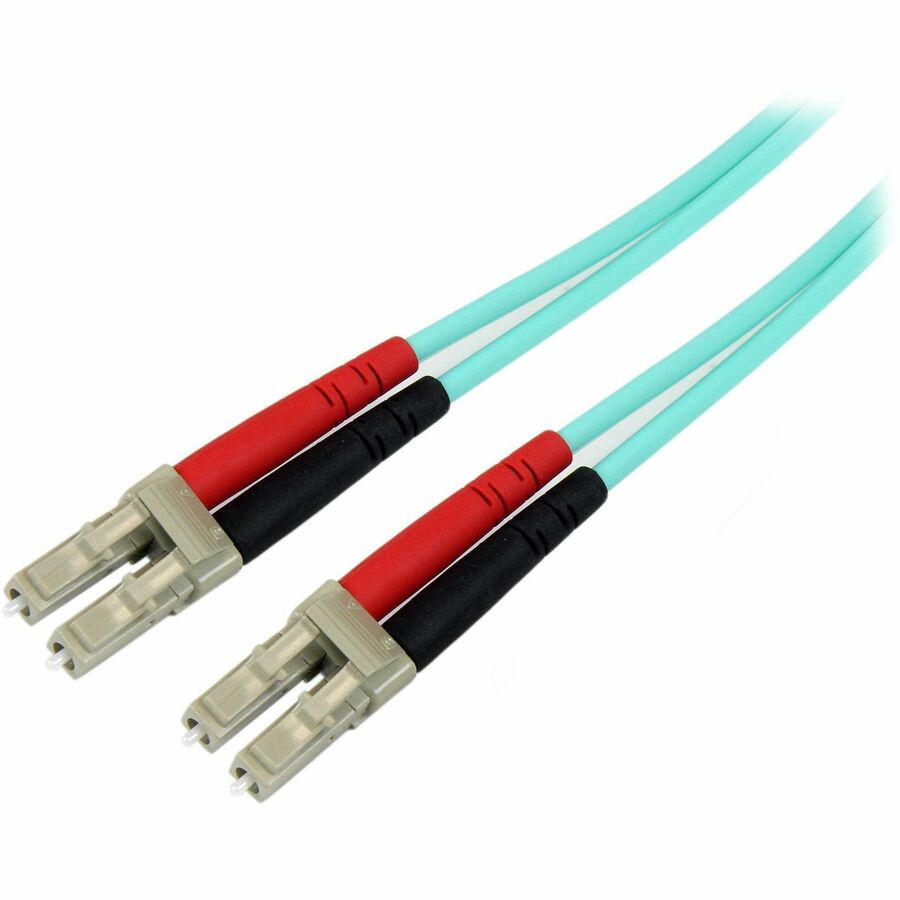

StarTech.com A50FBLCLC6 6 m (19.6 ft) LC to LC OM3 Multimode Fiber Optic Cable

StarTech 6m (19.7ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125 Zipcord, 100G, LSZH Fiber Jumper Cord

The StarTech.com A50FBLCLC6 LC to LC OM3 multimode fiber optic cable provides reliable, high-bandwidth connectivity for 10 Gigabit Ethernet, Fiber Channel, and advanced telecommunications networks. Built with 50/125-micron laser-optimized multimode fiber, this aqua duplex patch cable supports high-speed data transmission between backbone switches, hubs, routers, servers, storage area networks, and other high-performance networking equipment.

Designed for demanding installations, the cable features LC/LC connectors with UPC-polished ceramic ferrules for dependable optical performance and low insertion loss. Its full-duplex zip-cord construction includes color-coded transmit and receive connectors to simplify installation and cable management. A protective aramid fiber sheath helps improve tensile strength and crush resistance, while the fiber core is immune to electromagnetic interference for consistent signal integrity in electrically noisy environments.

The LSZH (Low-Smoke, Zero-Halogen) jacket helps minimize smoke, toxicity, and corrosive fumes in the event of fire, making the StarTech.com A50FBLCLC6 suitable for industrial facilities, central offices, schools, commercial networks, and residential installations where building codes are a consideration. The OM3 cable supports 1, 10, 40, and 100 Gbps network applications and is compatible with equipment using SFP+, QSFP+, and QSFP28 transceivers. Each cable is individually tested for optical insertion loss and signal integrity, meets applicable TIA/EIA requirements, and is backed by StarTech.com's lifetime warranty.

Features:

• OM3 Fiber Cable: Laser-optimized multimode fiber supports high-speed data transmission for up to 100 Gbps Ethernet applications.
• LC to LC Connectivity: Duplex LC/LC UPC connectors provide reliable connections for switches, servers, SANs, fiber switches, and transceivers.
• Durable Construction: 50/125-micron fiber, an aramid fiber sheath, and a full-duplex zip-cord design provide strength and convenient installation.
• Low-Smoke, Zero-Halogen Jacket: LSZH construction helps reduce smoke, toxicity, and corrosive fumes during a fire.
• Broad Compatibility: Supports 1, 10, 40, and 100 Gbps networks and works with SFP+, QSFP+, and QSFP28 transceivers.
• Tested Reliability: Individually tested for signal integrity and optical insertion loss, with attenuation under 2.3 dB/km.
• Network Applications: Suitable for telecommunications, data centers, backbone connections, storage area networks, and high-density cabling installations.
• Cable Specifications: 6 m (19.6 ft) length, aqua OM3 jacket, 850 nm or 1300 nm LED/VCSEL support, and modal bandwidth of at least 2000 MHz·km at 850 nm.
