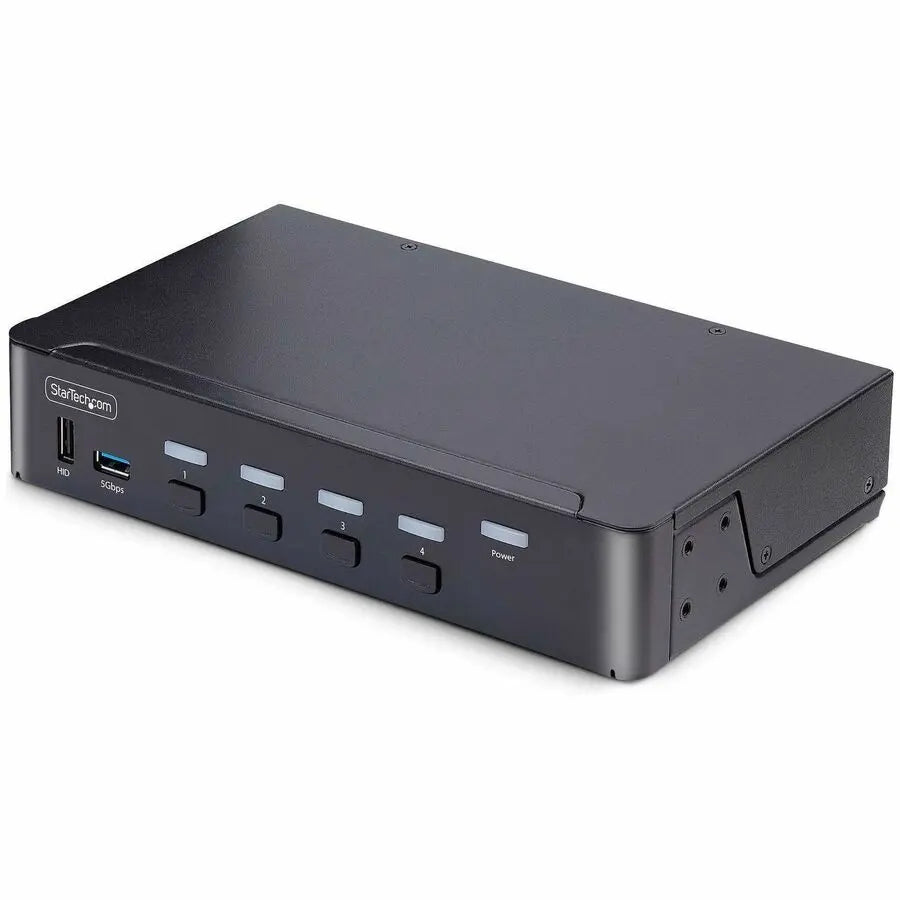

StarTech.com D86A24PORT8KKVM 4-Port DisplayPort 1.4 KVM Switch with 8K 60Hz Support

StarTech 4-Port DisplayPort 1.4 KVM Switch, 8K 60Hz / 4K 144Hz, 2x USB 3.0 Ports, 4x USB 2.0 Ports, Hotkey Switching, TAA Compliant

The StarTech.com D86A24PORT8KKVM is a high-performance KVM switch designed to seamlessly share and control two computers equipped with USB-A and DisplayPort interfaces. This switch enables users to connect a single 8K 60Hz DisplayPort monitor, along with a keyboard, mouse, two USB 5Gbps devices, and two additional USB 2.0 peripherals, facilitating efficient workspace management. Its support for ultrawide resolutions up to 5120x1440 at 60Hz makes it ideal for demanding applications such as CAD/CAM, video editing, and content creation, especially with HDR support that enhances contrast, brightness, and color accuracy for a more vivid visual experience. The inclusion of Daisy chaining via MST pass-through allows users to expand their display setup further, maximizing productivity and visual clarity. The switch’s ability to handle high-resolution video output with DisplayPort 1.4 compliance ensures compatibility with the latest display technologies and maximum video performance with DSC support, if needed.
The D86A24PORT8KKVM offers multiple switching options, including push-buttons and hotkey commands, providing flexibility for quick and easy control. Audible confirmation sounds and LED indicators help users verify active ports instantly, while the ability to listen to audio from one computer while controlling the other enhances multitasking capabilities. Its durable metal housing contributes to long-term reliability and helps prevent Electro-magnetic Interference (EMI), safeguarding connected devices. Overcurrent Protection (OCP) is integrated to prevent peripherals from overdrawing power, reducing the risk of damage or device dropouts. This TAA-compliant switch is compatible with Windows, macOS, ChromeOS, and Linux, supporting all major hardware platforms such as Intel and AMD. The package includes the KVM switch, a quick-start guide, a universal power adapter suitable for various regions, and rubber feet for optimal placement. With a limited 2-year warranty, the StarTech.com D86A24PORT8KKVM provides a robust, versatile solution for managing multiple high-resolution displays and peripherals with ease and reliability.

Features:

• 8K 60Hz with HDR: Supports fast switching between two USB-A and DisplayPort-enabled desktops, sharing a single 8K 60Hz monitor, keyboard, mouse, and audio device; DSC support required for maximum performance; MST pass-through supported

• Universal Compatibility: TAA-compliant KVM switch works with Windows, macOS, ChromeOS, and Linux; compatible with all hardware platforms including Intel and AMD; supports ultrawide resolutions up to 5120x1440 at 60Hz

• Multiple Switching Options: Fast switch via push-buttons or hotkeys with audible buzzer confirmation; LED indicators display active port status; audio playback from one computer while controlling the other

• Thoughtful Design: Durable metal housing prevents EMI; Overcurrent Protection (OCP) safeguards peripherals from power overdraw, reducing device damage risk

• Technical Specifications: DisplayPort 1.4 compliant, supports high-resolution video output, MST pass-through, and HDR for enhanced visual quality
