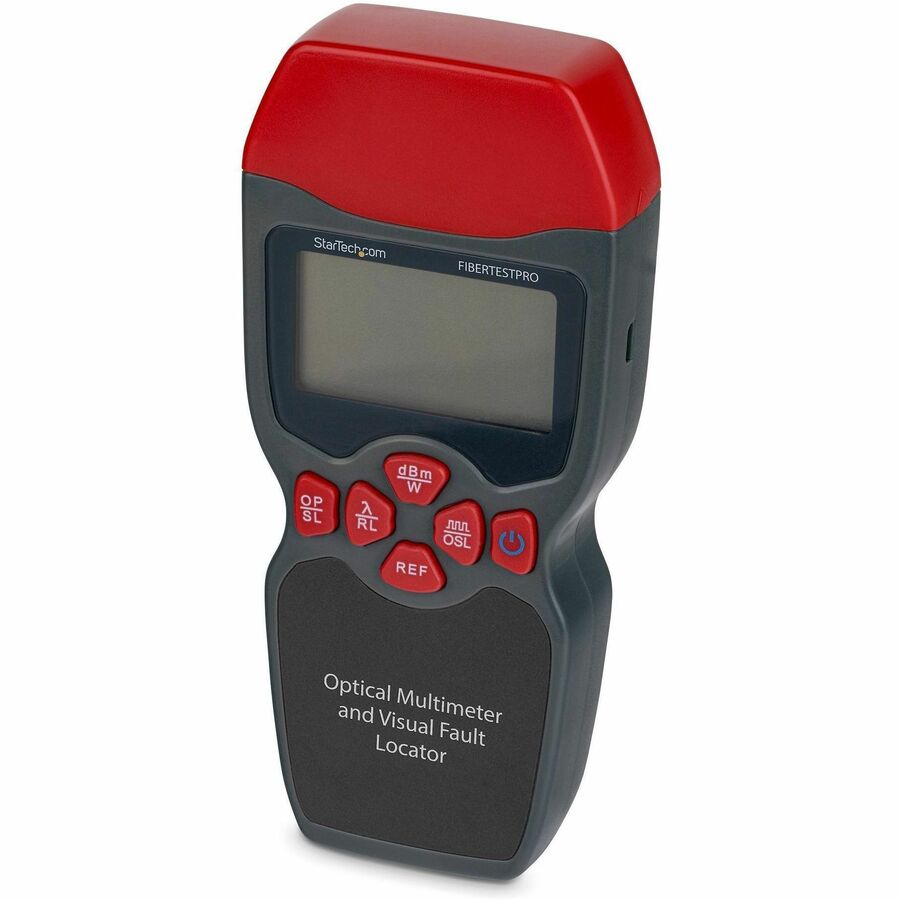

StarTech.com FIBERTESTPRO Multi-Function Fiber Optic Cable Tester with Optical Power Meter and Visual Fault Locator

StarTech Fiber Optic Cable Tester, Multi-function Optical Fiber Tester, Light Power Meter, Visual Fault Locator for FC/SC/ST Fiber

The StarTech.com FIBERTESTPRO Multi-Function Fiber Optic Cable Tester is a practical diagnostic tool for testing fiber networks, verifying light source transmission, and measuring optical power. Its backlit LCD provides clear readings in server rooms, data centers, and enterprise network environments, while the handheld design supports convenient on-site troubleshooting and maintenance. An automatic shutoff helps conserve battery life during extended use.

Comprehensive Fiber Testing

Use the Optical Power (OP) mode to measure signal strength, the Light Source (SL) mode to verify transmission, and the Red Light (RL) Visual Fault Locator mode to help identify breaks, damaged cable sections, and connectivity problems. The tester also helps technicians assess attenuation, signal loss, and insertion loss to determine whether fiber links are operating within applicable specifications.

Broad Fiber Compatibility

The StarTech.com FIBERTESTPRO supports both single-mode and multimode fiber cables with FC, SC, and ST connector types. It supports common operating wavelengths of 850nm, 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm for versatile testing across a range of network installations. Removable screw-on SC connector adapters support convenient configuration for different testing requirements.

Portable Network Maintenance Tool

Designed for IT professionals, network installers, and telecommunications technicians, this gray fiber cable tester combines multiple diagnostic functions in one portable instrument. It helps streamline cable validation and fault isolation in high-density network environments while reducing the need to carry separate optical testing devices. The unit is RoHS compliant and backed by a 2-year limited warranty.

Features:

• Portable fiber testing tool measures optical power and verifies light source transmission with a backlit LCD for clear readings.
• Automatic shutoff helps conserve battery power during periods of inactivity.
• Optical Power, Light Source, and Red Light Visual Fault Locator modes support signal testing and fiber fault identification.
• Helps verify insertion loss and diagnose attenuation, signal loss, cable breaks, and connectivity issues.
• Compatible with single-mode and multimode FC, SC, and ST fiber cables.
• Supports 850nm, 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm wavelengths.
• Removable screw-on SC fiber connector adapters support flexible testing configurations.
• Suitable for enterprise networks, server rooms, data centers, and on-site fiber maintenance.
• RoHS compliant and covered by a 2-year limited warranty.
