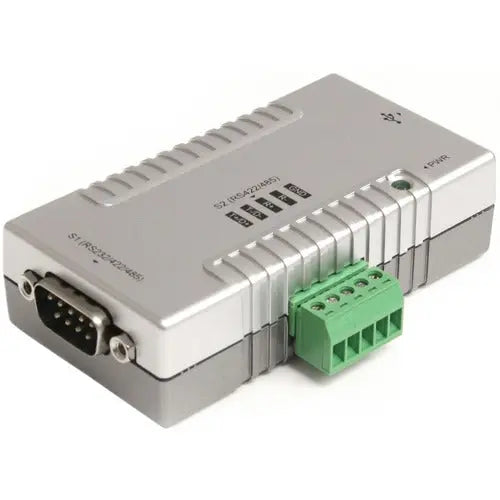

StarTech.com ICUSB2324852 2-Port USB to RS232, RS422, RS485 Serial Adapter with COM Retention

StarTech USB to Serial Adapter - 2 Port - RS232 RS422 RS485 - COM Port Retention - FTDI USB to Serial Adapter - USB Serial, TAA

The StarTech.com ICUSB2324852 serial adapter provides a versatile and reliable solution for connecting serial devices to your USB-enabled computer. Designed to support RS-232, RS-422, and RS-485 protocols, this external adapter features two independent ports that can operate simultaneously with different communication standards, making it ideal for complex industrial or office environments. The first port, equipped with a DB9 male connector, is configurable for RS-232, RS-422, or RS-485 operation, while the second port offers a 5-pin terminal block for RS-422 or RS-485 connections. This flexible setup allows users to tailor their serial connections to specific device requirements without additional hardware. The adapter’s design includes dip-switch controls for easy port configuration, eliminating the need for complex software setup and streamlining deployment. The adapter is fully powered via the USB connection, with no external power supply needed, simplifying installation and reducing clutter. It also features a rugged screw-lock USB port to prevent accidental disconnections and includes a wall-mounting bracket, facilitating a clean and secure installation in various settings. The adapter maintains COM port assignments after reboot, and users can rename devices for easier identification, enhancing operational efficiency. Backward compatibility with USB 1.1 ensures broad usability across different systems. Certified TAA compliant and environmentally friendly, the ICUSB2324852 is built in Taiwan and supported by a two-year warranty along with lifetime technical support. Packaged with a USB cable, mounting bracket, driver CD, and installation guide, this adapter offers a comprehensive solution for industrial automation, data acquisition, and legacy device integration. Whether you need to connect legacy serial equipment or set up complex multi-protocol communication networks, the StarTech.com ICUSB2324852 provides a robust, flexible, and easy-to-use interface that meets demanding professional standards.

Features:

• Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware

• Multiple interface modes, including: 4 wire RS422 (TxD+/-, RxD+/-), and 2 wire RS485 (DATA+, DATA-)

• Port 1 (DB9) configurable for RS232, RS422, or RS485; Port 2 (Terminal Block) configurable for RS422 or RS485

• COM Port assignments maintained after reboot

• Ability to rename devices for easy recognition

• s rugged screw-lock USB port to ensure cords are not accidentally disconnected

• Includes a bracket for wall mounting the USB to Serial adapter

• USB-powered; No additional external power adapter required

• Both ports can function simultaneously with mixed or matched communication protocols

• Backwards compatible with USB 1.1
