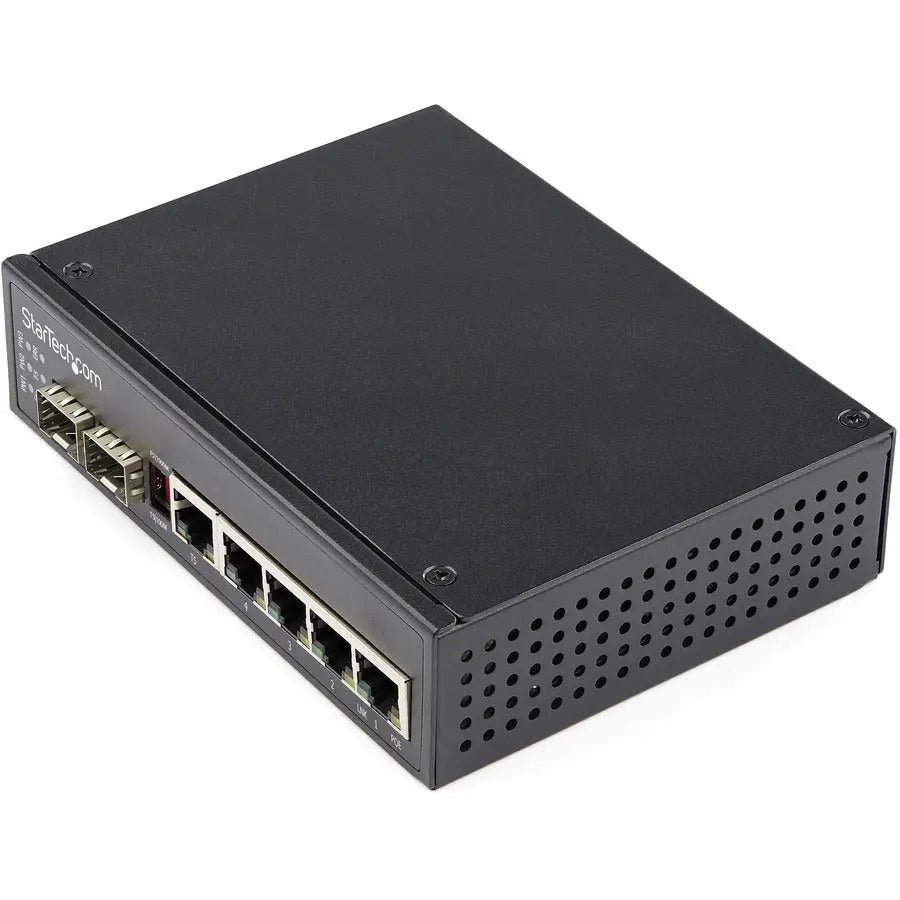

StarTech.com IES1G52UPDIN Industrial 6 Port Gigabit Ethernet Switch with PoE+ and SFP Slots, 48VDC, DIN Rail Mountable

StarTech Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Mbps -40C to 75C w/DIN, TAA

The StarTech.com IES1G52UPDIN is a robust industrial Ethernet switch designed for demanding network environments. Featuring four PoE+ ports delivering up to 30W each, it simplifies deployment of power-hungry devices such as cameras, sensors, and Wi-Fi access points. The switch also includes two open SFP slots and a switchable RJ-45/Open SFP port, offering flexible uplink options to accommodate various network configurations. Its compact, IP-30 rated aluminum housing ensures durability and reliable operation in harsh conditions, withstanding vibration, shock, and free-fall testing. Operating across a temperature range of -40°C to 75°C, this device is suitable for industrial settings requiring rugged hardware that maintains performance under extreme temperatures and environments.

The switch supports auto-negotiation at speeds up to 1 Gbps on all ports, ensuring seamless connectivity with high-speed devices. Dual power inputs provide redundancy, accepting both terminal block and DIN power connectors within an input voltage range of 48-56V DC. This flexibility allows for easy integration into existing power systems without professional installation. With a total power budget of 120W, it efficiently powers multiple PoE devices while maintaining stability and performance. The device’s MTBF exceeds 500,000 hours, indicating long-term reliability for continuous operation.

Designed for easy mounting, it supports both DIN rail and wall installation, making it suitable for a variety of industrial applications. The switch is unmanaged, providing straightforward plug-and-play functionality without complex configuration. Backed by a two-year warranty and free lifetime technical support from StarTech.com, this Ethernet switch is a dependable choice for IT professionals seeking durable, high-performance networking hardware that can withstand challenging environments. Its environmentally friendly construction complies with EU RoHS and WEEE standards, emphasizing sustainability alongside performance.

Features:

• FIBER & PoE: Industrial 6 Port Gigabit Ethernet Switch IEEE 802.3af (PoE) or 802.3at (PoE+) 30W max per 4 PoE ports, plus 2 open SFP slots

• Use with devices like cameras, sensors, Wi-Fi access points

• FLEXIBLE POWER INPUT: Use a DIN power connector or hardwire with terminal block, with dual power sources for redundancy

• Input voltage range is 48-56V DC

• ROBUST DESIGN: Industrial network switch with MTBF exceeding 500,000 hours at 50°C

• Vibration, shock, and free-fall rated for durability

• Rugged industrial IP-30 aluminum housing for harsh environments

• -40°C to 75°C hardened operating temperature range

• DIN rail and wall mountable for versatile installation

• TECH SPECS: 10/100/1000 Mbps auto-negotiation on all ports

• Unmanaged, plug-and-play operation for ease of use

• Six mixed fiber and copper connections: four PoE ports, one SFP, and one flexible copper or SFP port (MSA compliant)

• Total power budget of 120W for powering multiple PoE devices

• StarTech.com’s trusted legacy: over 30 years serving IT professionals

• Backed by a 2-year warranty and free lifetime technical support
