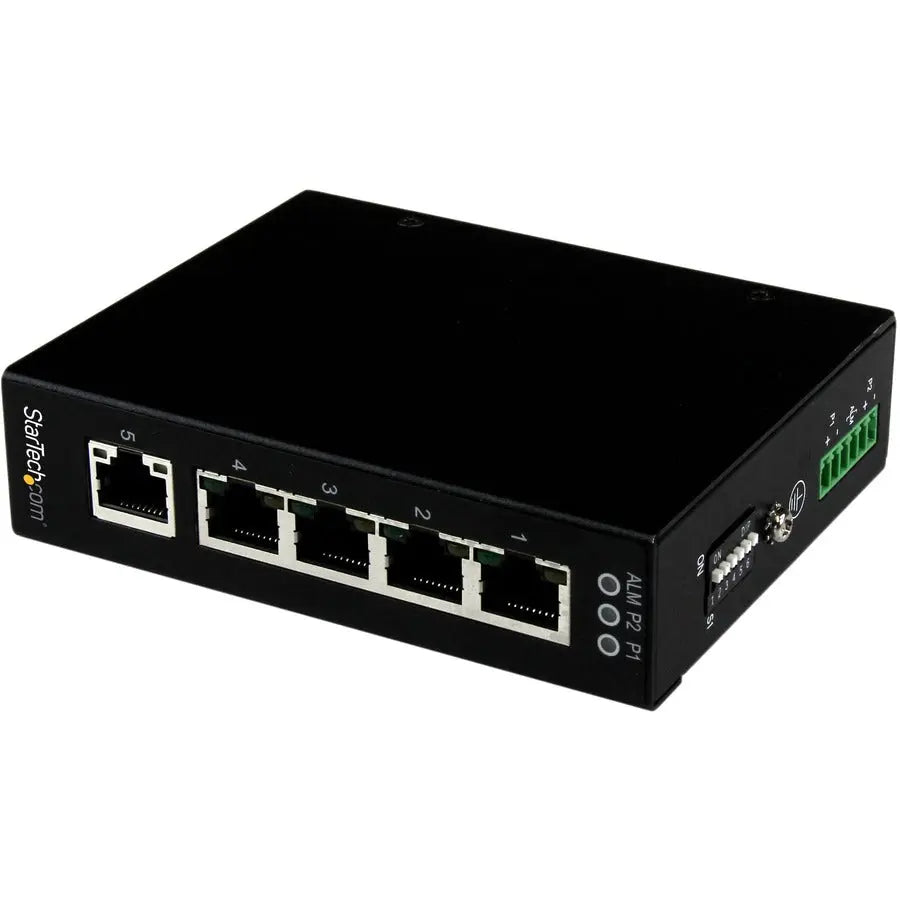

StarTech.com IES51000 Unmanaged Industrial Gigabit Ethernet Switch - 5 Ports, DIN Rail & Wall Mountable

StarTech 5 Port Unmanaged Industrial Gigabit Ethernet Switch, DIN Rail / Wall-Mountable, TAA

The StarTech.com IES51000 is a robust 5-port unmanaged industrial Ethernet switch designed for demanding environments such as factories, warehouses, and large junction boxes. Its compact, IP30-rated steel enclosure ensures durability and reliable performance in harsh conditions, with an extensive operating temperature range from -40°C to 75°C. This switch features five Gigabit Ethernet ports supporting speeds up to 1000 Mbps, providing high-speed connectivity for your industrial network devices. Auto-negotiation for speed and duplex settings, along with auto MDI/MDIX detection, simplifies installation by eliminating configuration hassles and reduces troubleshooting efforts. The switch's support for jumbo frames up to 9K enhances data transfer efficiency, particularly for large data packets typical in industrial applications. Its energy-efficient Ethernet (IEEE 802.3az) helps reduce power consumption, contributing to sustainable operation in environmentally conscious settings. The unit offers wide-range redundant power inputs from 12V to 58V DC, with alarm relay contacts that can be wired into existing alarm systems to notify operators instantly of power disruptions. Designed for easy installation, the switch can be mounted on a DIN rail or wall, making it adaptable to various industrial layouts. Backed by a 2-year warranty and lifetime technical support from StarTech.com, this switch is a dependable solution for industrial networking needs, combining durability, ease of use, and advanced features for seamless operation. The comprehensive package includes mounting brackets, a DIN rail clip, screws, a terminal block, and an instruction manual, ensuring straightforward setup and maintenance.

Features:

• Supports IEEE 802.3x flow control and back-pressure for reliable data transmission

• IEEE 802.3az Energy-Efficient Ethernet reduces power consumption

• Supports jumbo frames up to 9K bytes for efficient large data transfers

• Extended operating temperature range from -40°C to 75°C for harsh environments

• Auto-negotiates speed and duplex on each port for seamless connectivity

• Auto-MDIX detection eliminates the need for crossover cables

• Overcurrent and reverse polarity protection enhances durability and safety

• Dual wide-range redundant 12-58V DC power inputs with alarm relay contacts

• Five Gigabit unmanaged RJ45 Ethernet ports for high-speed networking

• IP30-rated steel enclosure supports DIN rail and wall mounting for versatile installation
