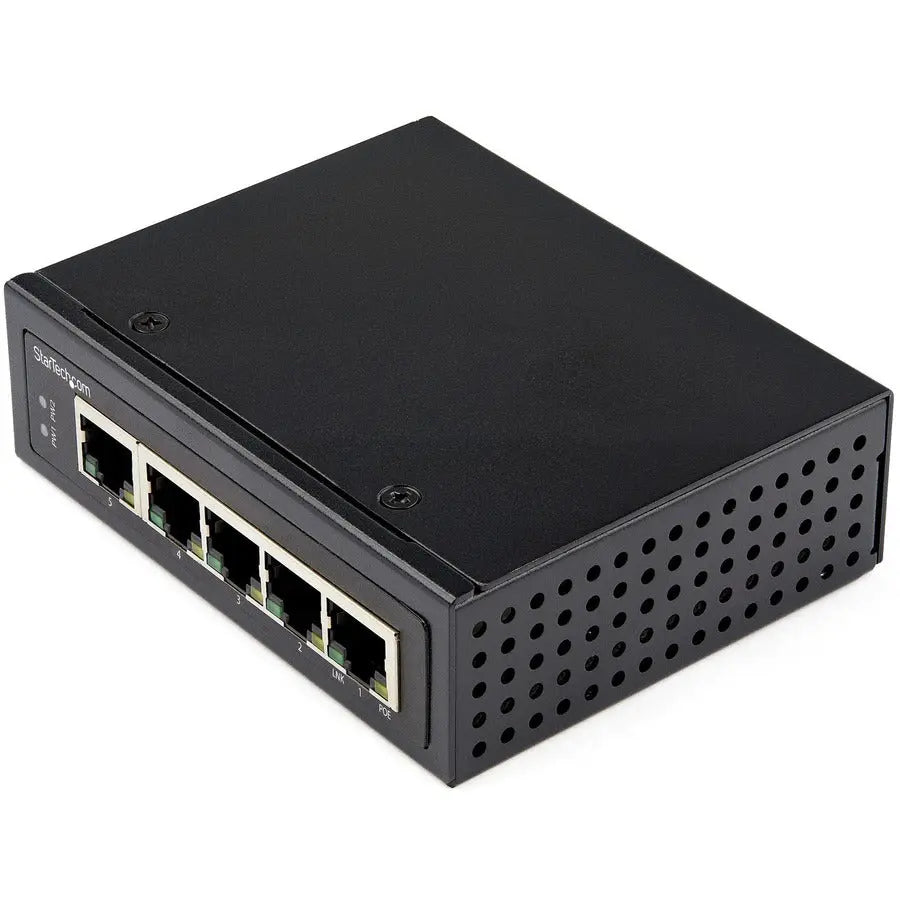

StarTech.com IESC1G50UP Industrial 5 Port Gigabit PoE Switch with 30W Power Output

StarTech Industrial 5 Port Gigabit PoE Switch 30W, Power Over Ethernet Switch, GbE POE+ Network Switch, Unmanaged, IP-30, TAA

The StarTech.com IESC1G50UP is an industrial-grade 5-port gigabit Ethernet switch designed for demanding environments where reliable network connectivity is essential. Featuring four Power over Ethernet (PoE) ports, this switch provides up to 30W of power per port, supporting IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards. It is ideal for powering network cameras, Wi-Fi access points, sensors, and other PD devices over a single Ethernet cable, eliminating the need for separate power supplies and simplifying installation. The switch's high total power budget of 120W allows for multiple high-power devices to operate simultaneously, with power allocated in order of device connection. Its robust construction includes an IP-30 rated steel housing, capable of withstanding vibration, shock, and free-fall conditions, making it suitable for industrial environments. Operating within a temperature range from -40°C to 75°C, the switch ensures reliable operation in harsh conditions. Additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an impressive MTBF of over 600,000 hours under Telcordia/Bellcore standards contribute to long-term durability and dependability. The device supports wall mounting or DIN rail installation, providing flexible deployment options. A unique barrel power adapter allows for easy connection to standard wall power supplies, while an alarm relay can be integrated into existing systems for status monitoring. Designed for quick and straightforward setup, it includes hardware for mounting and a quick-start guide. The switch also offers Layer 2 switching features such as IGMP snooping, port mirroring, and spanning tree, ensuring efficient network management. Supporting twisted pair cables for high-speed data transfer up to 100 meters, the StarTech.com IESC1G50UP delivers a reliable, high-performance solution for industrial Ethernet networking needs. Whether for small business, industrial automation, or infrastructure projects, this unmanaged switch provides a cost-effective and resilient network expansion option. Its environmentally friendly design complies with EU RoHS and WEEE directives, and it is manufactured in Taiwan using durable steel materials to withstand challenging environments.

Features:

• Effectively reduces downtime with improved network performance

• Terminal Block plug/connector type for convenient Ethernet switch usage with added power supply dependability

• Quickly and easily set up a wired network with 5 networking ports

• PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available

• Layer 2 switch provides features including IGMP snooping, port mirroring, and spanning tree

• Wall mounting capability for organized installation and cable management

• Unmanaged design offers a quick, easy, and cost-effective way to add wired networking to various environments

• Supports high-speed data transfer up to 100 meters using cost-efficient twisted pair cables

• Built to operate reliably in temperatures ranging from -40°C to 75°C with IP-30 rated steel housing

• Includes redundant power inputs, surge protection, and long MTBF for durability
