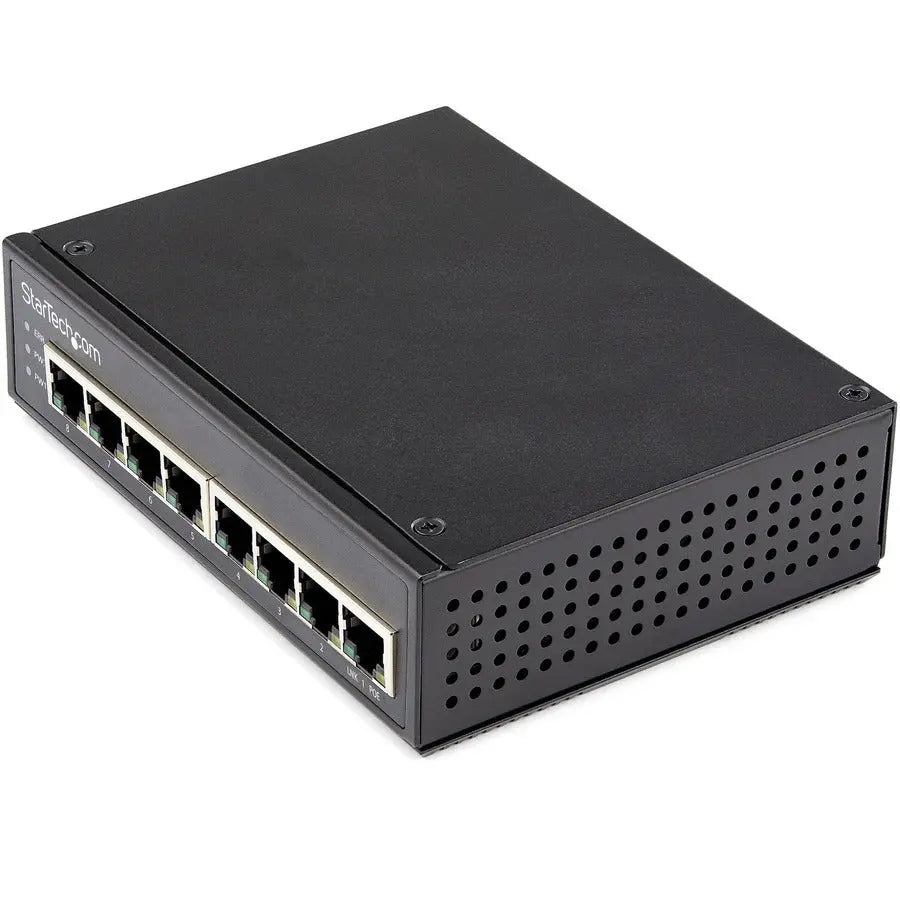

StarTech.com IESC1G80UP Industrial 8-Port Gigabit PoE Switch with 30W per Port and Redundant Power

StarTech Industrial 8 Port Gigabit PoE Switch 30W, Power Over Ethernet Switch, GbE POE+ Network Switch, Unmanaged, IP-30, TAA

The StarTech.com IESC1G80UP is an industrial-grade 8-port gigabit Ethernet switch designed for demanding environments where reliable network connectivity is essential. This unmanaged switch provides up to 30W of Power over Ethernet (PoE) per port, supporting IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards, making it suitable for powering devices such as security cameras, Wi-Fi access points, and sensors using Cat 5e or higher-rated cabling. Its high power budget of 200W allows for multiple high-power devices to operate simultaneously, with a maximum of six 802.3at devices drawing 30W each at any given time. The switch features 10/100/1000 Mbps ports, ensuring fast and reliable data transfer for industrial applications. Its rugged steel housing and IP-30 rating provide protection in harsh conditions, including extreme temperatures from -40°C to 75°C, as well as vibration, shock, and free-fall resistance. The inclusion of redundant power inputs via terminal blocks enhances high-availability deployments, ensuring continuous operation even if one power source fails. Surge protection and a long MTBF of over 500,000 hours at 50°C contribute to the switch’s long-term reliability. Easy to install with DIN rail or wall-mount options, this switch is backed by a 2-year warranty and supported by StarTech.com's extensive technical assistance. It is an ideal solution for industrial environments requiring robust, reliable PoE networking capabilities with advanced features for high-performance and high-availability scenarios.

Features:

• Power over Ethernet: Gigabit PoE switch provides up to 30W of PSE power per port to IEEE 802.3af and IEEE 802.3at devices

• Use with devices like cameras and access points using Cat 5e/6 cabling

• 8 port gigabit Ethernet switch offering high-speed data transfer

• Supports IEEE 802.3af / IEEE 802.3at standards for PoE+ compatibility

• Data transfer rates of 10/100/1000 Mbps for versatile network performance

• Unmanaged switch for easy plug-and-play deployment

• Error alarm relay for network troubleshooting

• Redundant power inputs with terminal block connections for high availability

• 200W total PoE power budget to support multiple high-power devices

• Industrial design with IP-30 aluminum housing providing durability in tough environments

• Operating temperature range from -40°C to 75°C ensures reliable operation under extreme conditions

• Vibration, shock, and free-fall rated for industrial resilience

• Wall mountable and DIN rail compatible for flexible installation options

• Dual power inputs (48-56VDC) enable redundancy for critical applications

• Backed by a 2-year warranty and global technical support from StarTech.com
