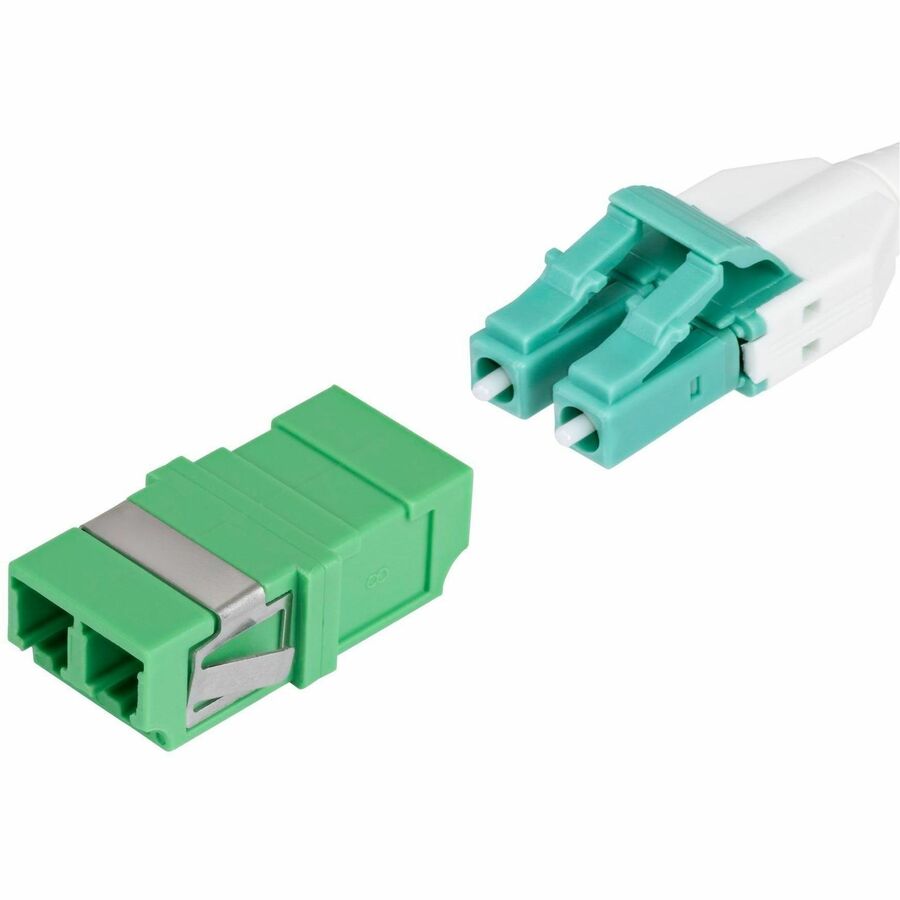

StarTech.com LC/APC Fiber Coupler 10 Pack for Single Mode OS2 Connections

StarTech LC to LC Coupler 10 Pack, OS2 Single Mode SC Footprint LC Fiber Optic Coupler without Flange, LC/APC Duplex Adapter

This 10-pack of StarTech.com LC/APC fiber couplers provides a reliable and efficient solution for connecting single mode fiber optic cables in high-speed networks. Designed for use with OS2/OS1 (9/125 inch) fiber cores, these couplers are ideal for enterprise installations, data centers, and network infrastructure where performance and ease of installation are critical. The couplers feature a flangeless, snap-in design that enables quick, tool-free installation directly into fiber splice cassettes or distribution panels, streamlining deployment and reducing setup time. Each coupler is built with a durable PBT housing and zirconia ceramic-lined sleeves for precise fiber alignment, which minimizes insertion loss and ensures long-term signal integrity. This design supports high-bandwidth applications ranging from 1Gbps up to 100Gbps, making them suitable for current and future fiber network demands. The couplers are optimized for use with APC-polished fiber cables, supporting minimal return loss and optimal signal clarity at wavelengths between 1260nm and 1625nm. Their compatibility with SC duplex slots facilitates efficient organization and management of fiber connections in dense network environments. Whether deploying in data centers or enterprise networks, these couplers enable scalable, high-performance fiber connections with minimal fuss. The 10-pack configuration offers cost-effective bulk deployment, while the compact design ensures they are unobtrusive within fiber panels. Backed by a three-year limited warranty, StarTech.com’s fiber couplers are a trusted choice for network professionals seeking durable, high-speed fiber connectivity solutions.

Features:

• Extend multiple LC connections: Deploy faster and more organized with a 10-pack of LC/APC duplex couplers in a flangeless SC-format housing, ideal for fiber splice cassettes and distribution panels in large-scale installations

• Reliable, high-speed performance: Engineered for 1/10/40/100Gbps transmission with low 0.2dB insertion loss and precision mating, maintaining peak signal integrity and exceeding TIA-568 B.3 standards; optimized for Single Mode laser sources

• Quick installation: Flangeless snap-in design enables fast, tool-free placement in fiber cassettes or assemblies with SC duplex slots; connects internal LC terminations to external LC patch cords for low-loss, serviceable links across fiber networks

• Single-mode compatibility: Pair with LC fiber cables with APC polished ends for optimal signal clarity and minimal return loss; supports OS2/OS1 single-mode connections over 9/125 micron cores at wavelengths from 1260nm to 1625nm

• The IT professional's choice: Designed for network operations managers and technicians requiring durable, high-performance fiber connection solutions
