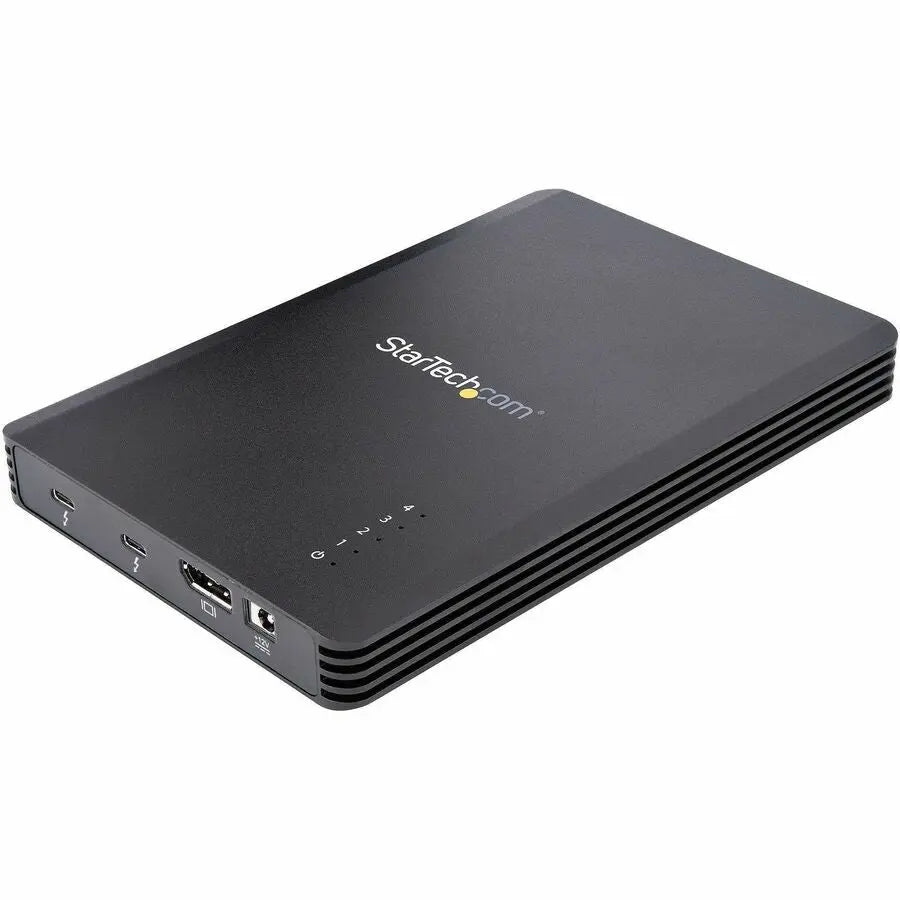

StarTech.com M2E4BTB3 4-Bay Thunderbolt 3 NVMe SSD Enclosure with DisplayPort and Daisy Chain Support

StarTech 4 Bay Thunderbolt 3 NVMe Enclosure, For M.2 NVMe SSD Drives, 1x DisplayPort Video and 2x TB3 Downstream Ports, 40Gbps, TAA

The StarTech.com M2E4BTB3 external SSD enclosure transforms up to four 80mm M-Key PCIe NVMe or AHCI M.2 SSDs into a high-performance storage solution utilizing Thunderbolt 3 technology. Designed for professionals handling large files such as high-resolution images, videos, or CAD data, this enclosure offers impressive data transfer speeds of up to 40Gbps by leveraging Thunderbolt 3's bandwidth. The vented metal chassis includes thermal pads and a cooling fan to maintain optimal operating temperatures, ensuring reliable performance during intensive workloads.

Each drive in the enclosure is allocated a dedicated 8Gbps PCIe lane, guaranteeing consistent read/write speeds regardless of individual drive activity. Support for software RAID via systems like Storage Spaces, RAID Assistant, or mdraid/mdadm enables flexible and scalable storage configurations. The enclosure's robust build quality combined with advanced thermal management makes it ideal for creative professionals and data-intensive applications. Its compatibility extends to Thunderbolt 4 hosts, providing future-proof connectivity options.

Beyond storage, the enclosure features a DisplayPort output capable of supporting 4K resolution at 60Hz, allowing users to connect an external monitor directly through the device. Additionally, a downstream Thunderbolt 3 port facilitates daisy chaining of extra Thunderbolt devices or displays up to 5K at 60Hz, offering increased workspace flexibility. The package includes a 70cm Thunderbolt 3 cable, a universal power adapter, and a comprehensive manual. Backed by a two-year warranty and supported by StarTech.com's lifetime technical support, this enclosure is built for durable, professional-grade use, delivering high-speed storage and versatile connectivity in a sleek black metal design.

Features:

• High-performance Thunderbolt 3 storage: Supports up to four PCIe M.2 SSDs with data transfer speeds up to 40Gbps; includes a downstream Thunderbolt 3 port and DisplayPort video output

• Dedicated drive bandwidth: Each SSD receives an 8Gbps PCIe lane, ensuring consistent performance; supports software RAID configurations for scalable storage management

• Flexible connectivity options: Connect to external displays up to 4K 60Hz via DisplayPort; daisy chain additional Thunderbolt 3 devices or displays up to 5K 60Hz through the downstream port

• Thunderbolt Certified: Compatible with Thunderbolt 3 and Thunderbolt 4 host devices including MacBook Pro, MacBook Air, Lenovo ThinkPad X1, Dell XPS, and HP EliteBook

• Reliable thermal management: Vented metal enclosure equipped with thermal pads and a cooling fan to keep SSDs operating at optimal temperatures
