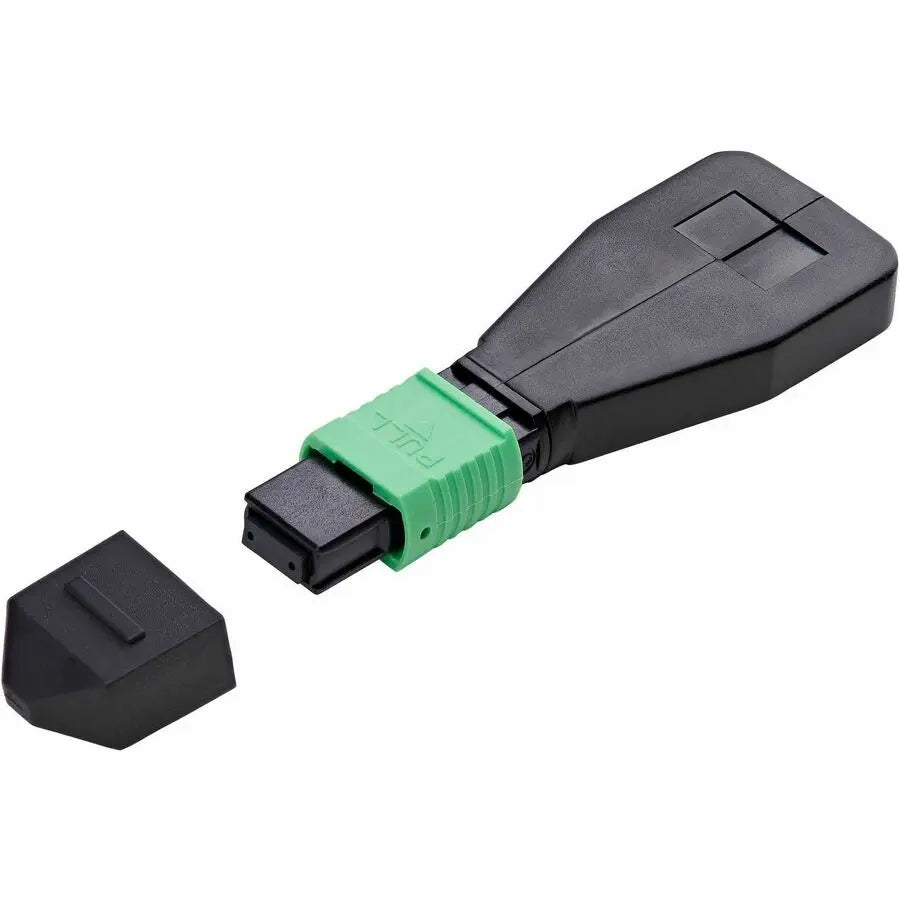

StarTech.com MPO Loopback Plug, Single Mode 9/125 MPO-8 Female Fiber Loopback Adapter - Reliable Signal Testing for MPO/MTP Cables

StarTech MPO Loopback Plug, Single Mode 9/125 MPO-8 Female Fiber Loopback Adapter, MPO/MTP Female Loopback Tester

The StarTech.com LOOPBACKMTPSM9125F is a high-quality fiber optic loopback plug designed specifically for testing single mode MPO connections. This tool is essential for network technicians and IT professionals who need to verify signal continuity, measure insertion loss, and diagnose port function in fiber optic systems. Its precise design ensures accurate diagnostics across high-speed, high-density MPO-based fiber networks, making it an invaluable asset for maintaining optimal network performance.

This MPO-8 female connector is compatible with OS1 and OS2 cabling standards, suitable for both point-to-point and structured installation environments. Its IEC and RoHS compliance guarantees adherence to industry standards, ensuring safe and environmentally responsible testing in regulated environments. The fixed 8-fiber configuration with aligned ferrules delivers consistent, clean signals, allowing technicians to quickly validate transceiver operation, identify faults, and confirm port integrity without disrupting neighboring connections.

Constructed with durability in mind, the loopback plug features a robust ABS housing that withstands frequent use in demanding data center or on-site settings. The high-precision ceramic ferrules provide reliable, repeatable results with insertion loss below 0.35dB, ensuring minimal signal degradation during testing. The device's compact form factor makes it easy to carry and use in tight spaces, while the included dust cap protects the connectors from dust and damage, extending the lifespan of the tool. Its design supports multiple test cycles, making it a practical choice for ongoing maintenance and troubleshooting tasks.

Whether you're testing MPO/MTP patch panels, transceivers, or cable assemblies, this loopback adapter simplifies the process of verifying fiber integrity. It supports high return loss (above 50dB), ensuring stable, back-reflection-free signals during testing. The device is TAA compliant and backed by a two-year warranty, reflecting its quality and reliability. As part of StarTech.com’s range of network tools, it offers IT professionals a dependable solution for on-site diagnostics, fault isolation, and routine network verification, making it a critical addition to any fiber optic testing toolkit.

Features:

• RELIABLE FIBER TESTING: Create a loopback test connection with this MPO female Single Mode fiber loopback plug; Female MPO-8 connector for testing male MPO interfaces with fixed alignment pins; Test 8-fiber male MPO/MTP cables and interfaces for continuity

• ACCURATE TEST PERFORMANCE: Maintain precise loopback signaling with insertion loss below 0.35dB; Repeatability within 0.2dB ensures consistent results across multiple connections; Return loss above 50dB minimizes back-reflection for stable signaling

• BUILT FOR DURABILITY: Optimized for multiple test cycles using high-precision ceramic ferrules in a compact ABS housing; Built in compliance with IEC and RoHS standards for reliable testing in regulated environments

• FIELD-READY DESIGN: Compact form factor is ideal for technicians performing on-site diagnostics and fault isolation; Quickly troubleshoot cables and verify performance in single mode MPO/MTP patch panels and transceivers; Includes protective dust cap

• THE IT PRO'S CHOICE: Our network tools and testers
