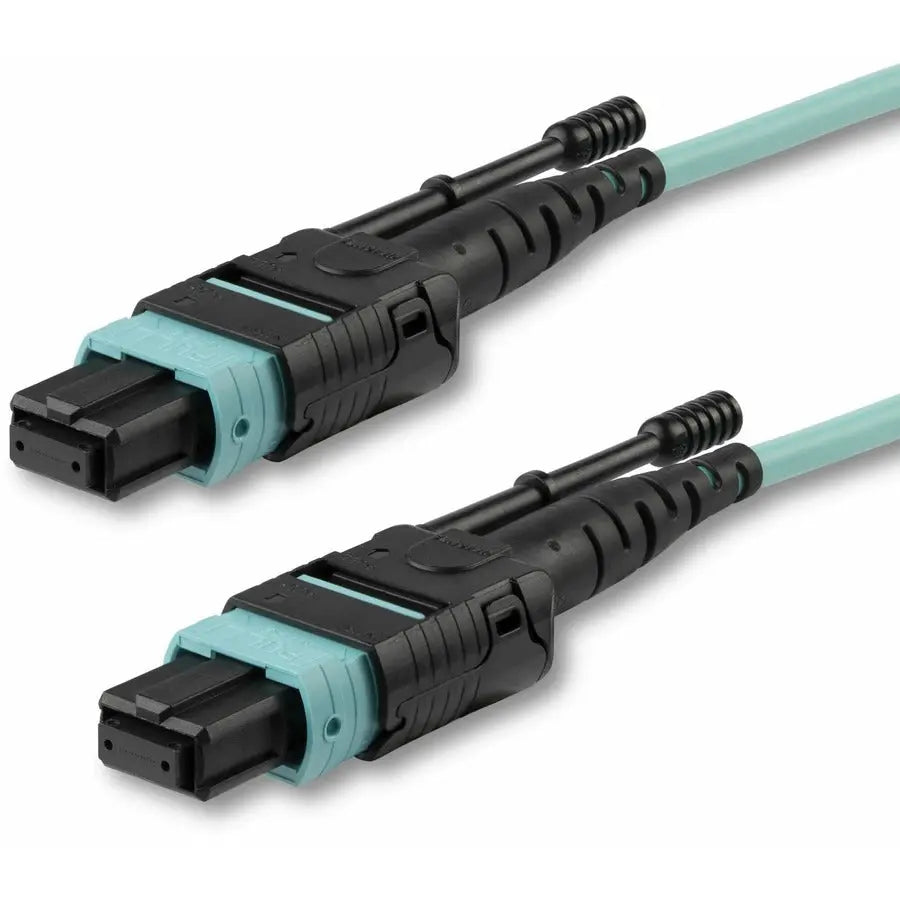

StarTech.com MPO12PL1M 1 Meter MTP Fiber Optic Network Cable – OM3 Multimode 12-Fiber, Aqua

StarTech.com 1m (3ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, OFNP Plenum, 50/125µm, 40G, Low Insertion Loss, MPO Fiber Jumper Cord

The StarTech.com MPO12PL1M fiber optic network cable provides a reliable high-speed connection for data centers and enterprise networking. Designed with 12 fibers and an MTP connector, this cable enables seamless interconnection between switches, servers, and high-density networking devices at speeds up to 40Gbps. Its compact design supports efficient use of rack space, making it ideal for environments where space-saving solutions are critical. The push-and-pull tabs allow for easy installation and removal with one hand, streamlining maintenance and upgrades. The MPO12PL1M features a plenum-rated jacket, suitable for in-wall and riser applications where fire safety standards must be met. Each cable undergoes individual testing for insertion loss and return loss, ensuring signal integrity and consistent performance. The included test report verifies reliable operation, backed by a lifetime warranty for peace of mind. This OM3 multimode fiber cable’s 50/125µm core is immune to electromagnetic interference, providing stable connections even in electrically noisy environments. Its low-smoke, flame-retardant OFNP jacket enhances safety in building installations. Compatible with a range of high-speed networking equipment such as SANs, data servers, and QSFP+ transceivers, the MPO12PL1M supports versatile connectivity options. The cable's aqua color not only signifies OM3 classification but also helps with cable management and identification in complex setups. Whether expanding a data center or upgrading network infrastructure, this fiber optic cable delivers robust performance and ease of installation, backed by a lifetime warranty from StarTech.com.

Features:

• Specs: 1m (3.3ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to MTP(F)/PC; 12-Fiber Type-A Straight Pinout; 850nm or 1300nm VCSEL; Modal Bandwidth: 2000MHz·km at 850nm; Cable OD: 3.0mm; Insertion Loss: 0.5dB; Return Loss: 20dB; Backed for Life

• Compatibility: OM3 Multimode cable with MTP connectors supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers

• Ratings and Reliability: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; 12-fiber MTP/MPO connectors with PC polished ends keep insertion loss below 0.5dB

• Quality Construction: OFNP jacket emits low-smoke and fumes if combusted; 50/125µm fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitate easy installation and removal

• OM3 Fiber Cable: MTP/MPO plenum-rated multimode fiber delivers up to 40 Gbps; Supports various networking devices at different speeds; Ideal for high-density network environments
