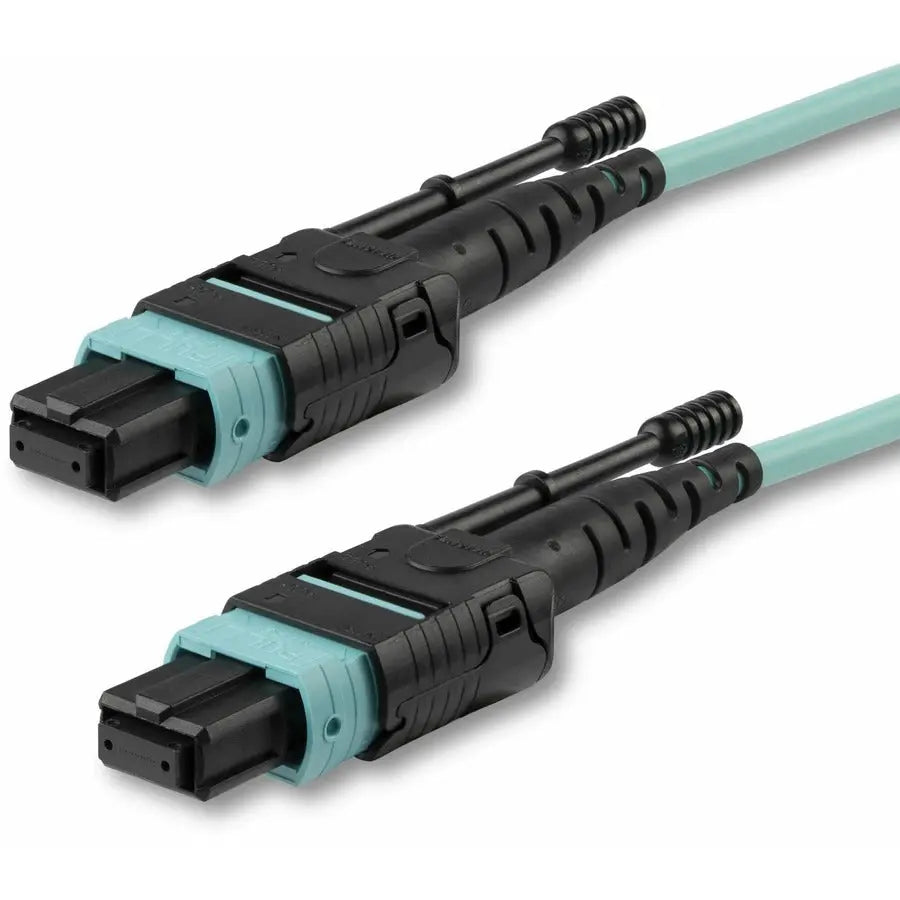

StarTech.com MPO12PL3M 3m Aqua OM3 Fiber Optic Network Cable for High-Speed Data Transmission

StarTech.com 3m (10ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, OFNP Plenum, 50/125µm, 40G, Low Insertion Loss, MPO Fiber Jumper Cord

The StarTech.com MPO12PL3M fiber optic network cable offers a reliable solution for high-density networking environments, supporting data rates of up to 40 Gbps. This 3-meter (9.8-foot) OM3 multimode cable features twelve fibers with MTP (MTP) connectors that enable seamless interconnection between switches, servers, and transceivers. Its innovative design allows for efficient space utilization in racks and circuit boards, thanks to the twelve-fiber density that is twelve times higher than traditional SC connectors. The push-and-pull tabs with flexible extensions ensure quick, tool-free installation and removal, simplifying maintenance and upgrades in busy data centers or enterprise networks.

Features:

• SPECS: 3m (9.8ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to MTP(F)/PC; 12-Fiber Type-A Straight Pinout; 850nm or 1300nm VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 3.0mm; Insertion Loss: 0.5dB, Return Loss: 20dB; Backed for Life

• COMPATIBILITY: OM3 Multimode cable with MTP connectors supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers

• RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; 12-fiber MTP/MPO connectors with PC polished ends keeps insertion loss below 0.5dB

• QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125"m fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitate convenient installation and removal

• OM3 FIBER CABLE: MTP/MPO plenum-rated OM3 multimode fiber delivers up to 40 Gbps; Supports different networking devices at varying speeds; Ideal for high-density data center and enterprise networks
