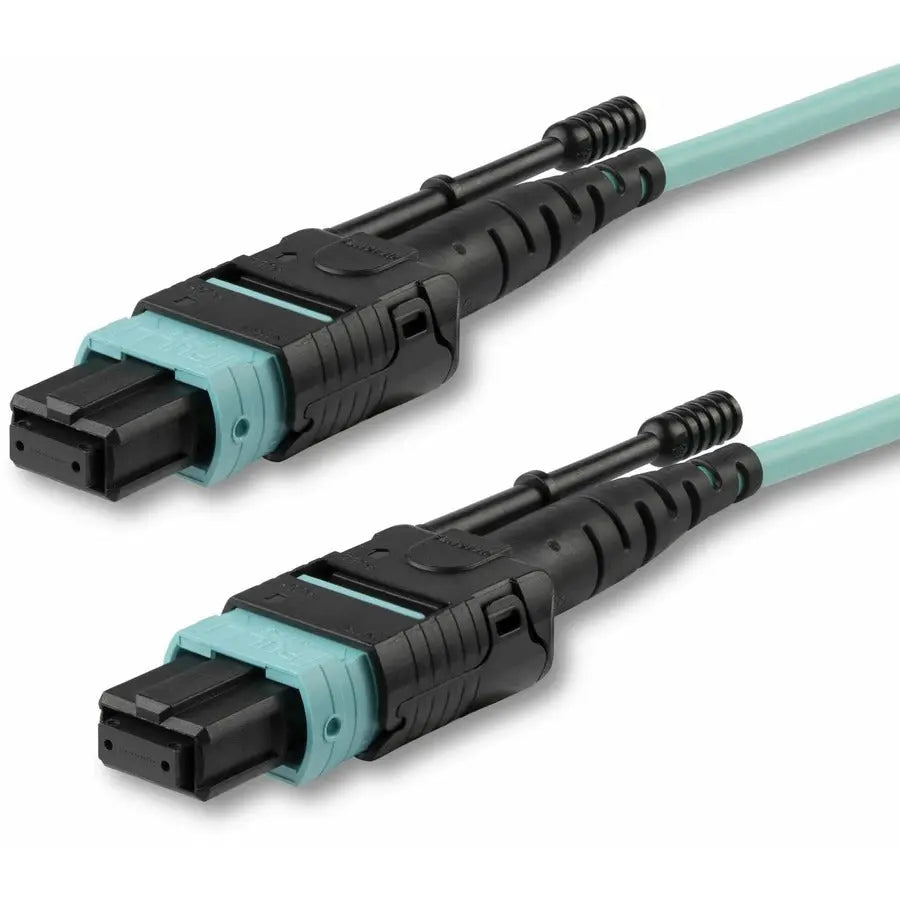

StarTech.com MPO12PL5M 5m MTP Fiber Optic Network Cable for High-Speed Data Transmission

StarTech.com 5m (16.4ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, OFNP Plenum, 50/125µm, 40G, Low Insertion Loss, MPO Fiber Jumper Cord

The StarTech.com MPO12PL5M fiber optic network cable provides a reliable solution for high-density data communication applications, supporting data rates up to 40 Gbps. Designed with 12 fibers housed in a plenum-rated jacket, this cable is ideal for connecting switches, servers, and transceivers in data centers and enterprise networks. Its OM3 multimode fiber core ensures immunity to electromagnetic interference, making it suitable for complex and high-performance environments. The cable features MTP to MTP connectors with PC polished ends, which maintain low insertion loss and high return loss, ensuring signal integrity across connections. The Aqua-colored cable not only enhances visibility but also complies with environmental safety standards, including REACH, and is rated for in-wall and plenum installations, providing flexibility in deployment scenarios.

Features:

• SPECS: 5m (16.4ft); Color: Aqua (OM3); Supports 40 Gbps; MTP(F)/PC to MTP(F)/PC; 12-Fiber Type-A Straight Pinout; 850nm or 1300nm VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 3.0mm; Insertion Loss: 0.5dB; Return Loss: 20dB; Backed for Life

• COMPATIBILITY: Supports high-density network applications such as SANs, data servers, and QSFP+ transceivers with OM3 multimode fiber and MTP connectors for maximum versatility

• RATINGS AND RELIABILITY: Individually tested for signal integrity with included test reports; Rated for plenum and in-wall installations; Features PC polished ends on MTP/MPO connectors to keep insertion loss below 0.5dB

• QUALITY CONSTRUCTION: OFNP jacket emits low smoke and fumes if combusted; 50/125-inch fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions allow for easy installation and removal

• OM3 FIBER CABLE: Delivers up to 40 Gbps; Supports different networking devices at varying speeds; Plenum-rated for safe and flexible deployment in commercial environments
