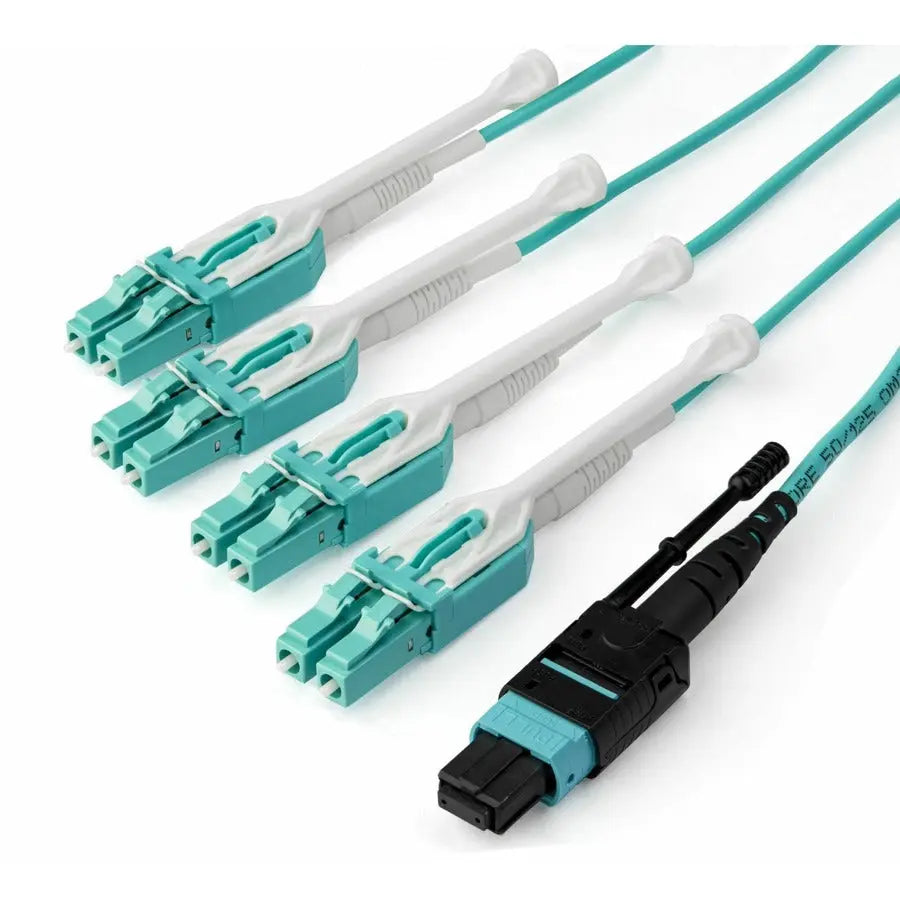

StarTech.com MPO8LCPL3M 3m (10ft) OM3 Multimode Fiber Optic Breakout Cable for 40Gbps Network Connections

StarTech 3m (10ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, 40G, Low Insertion Loss, Fiber Jumper Cord

This StarTech.com MPO8LCPL3M fiber optic breakout cable is designed for high-performance data transmission in demanding network environments. It features a 3-meter (approximately 10 feet) length with a plenum-rated jacket, making it suitable for in-wall and riser applications where fire safety compliance is essential. The cable allows you to efficiently convert a single 40Gbps MPO/MTP connection into four individual LC duplex connectors, facilitating high-density and high-speed network deployments such as SANs, data centers, and enterprise server rooms. The OM3 multimode fiber core supports wavelengths of 850nm or 1300nm, with a modal bandwidth of 2000MHz/km at 850nm, ensuring reliable performance over short to medium distances. The MTP(F)/PC to 4x LC/PC duplex configuration provides a streamlined solution for connecting QSFP+ transceivers to multiple SFP+ transceivers, simplifying complex cabling architectures. Each cable has been individually tested for insertion loss and return loss, guaranteeing signal integrity and durability. The low-smoke OFNP jacket enhances safety, while the 50/125 micron fiber core is immune to electromagnetic interference, ensuring consistent data transfer quality. The MTP push-pull tabs with flexible extensions enable quick and tool-free installation and removal, reducing downtime during network upgrades or maintenance. Backed by a lifetime warranty, this fiber optic cable exemplifies quality construction and reliable performance for demanding network environments.

Features:

• SPECS: 3m (9.8ft); Color: Aqua (OM3); Supports 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; Wavelengths: 850nm or 1300nm VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: 0.5dB (MTP), 0.2dB (LC)

• COMPATIBILITY: Supports high-density network applications including SANs, data servers, and QSFP+ transceivers; Connects a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers

• RATINGS AND RELIABILITY: Individually tested for signal integrity; Includes test report; Rated for plenum and in-wall installations; Maintains low insertion loss with PC polished ends

• QUALITY CONSTRUCTION: OFNP jacket emits low smoke and fumes; 50/125 micron fiber core provides immunity to EMI; MTP Push-Pull Tabs with flexible extensions facilitate quick installation and removal

• OM3 FIBER CABLE: Features a single 40 Gbps connection to four LC duplex connectors; Designed for high-performance multimode data transmission
