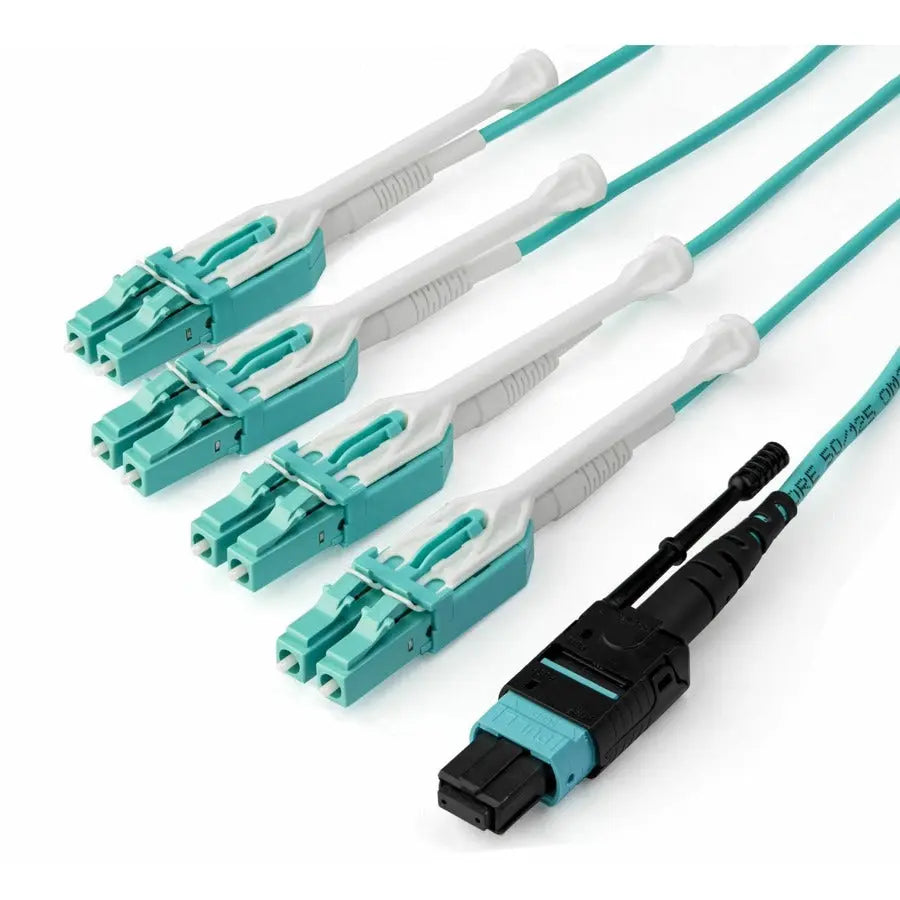

StarTech.com MPO8LCPL3M 3m OM3 Fiber Optic Breakout Cable for 40Gbps Networks

StarTech.com 3m (10ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, 40G, Low Insertion Loss, Fiber Jumper Cord

The StarTech.com MPO8LCPL3M is a 3-meter OM3 multimode fiber optic breakout cable designed for high-density data center and enterprise network applications. This cable allows you to fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four LC SFP+ transceivers, supporting rapid data transfer rates essential for SANs, servers, and high-speed switches. Its OM3 fiber core with a 50/125 micron cladding ensures immunity to electromagnetic interference, maintaining signal integrity over long distances. The cable's plenum-rated OFNP jacket makes it suitable for in-wall and in-ceiling installations, meeting fire safety standards for building codes. The MTP (F)/PC connector at one end and four LC duplex connectors at the other are engineered with PC polishing to reduce insertion loss, promoting optimal data transmission. Each cable undergoes individual testing for insertion and return loss, with comprehensive test reports included, guaranteeing reliable performance for critical network infrastructure. The slim uniboot design of the LC connectors optimizes space and simplifies cable management, while the push-and-pull tabs facilitate quick installation and removal without tools. Designed for durability and safety, this cable is rated for plenum environments and rated for low smoke emissions if combusted. Backed by a lifetime warranty, the MPO8LCPL3M offers a dependable and efficient solution for high-speed, high-density fiber optic networks, ensuring seamless connection expansion and reduced downtime in demanding environments.

Features:

• Specs: 3m (9.8ft); Color: Aqua (OM3); Supports 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; Compatible with 850nm or 1300nm VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: 0.5dB (MTP), 0.2dB (LC)

• Compatibility: Supports high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connects from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers

• Ratings and Reliability: Individually tested for signal integrity; Includes test report; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends ensure low insertion loss

• Quality Construction: OFNP jacket emits low smoke and fumes; 50/125 micron fiber core/cladding resists EMI; MTP Push-Pull Tabs with Flexible Extensions enable easy installation and removal

• OM3 Fiber Cable: Features a single 40 Gbps connection to four LC duplex connectors; Ideal for high-speed fiber optic network expansion
