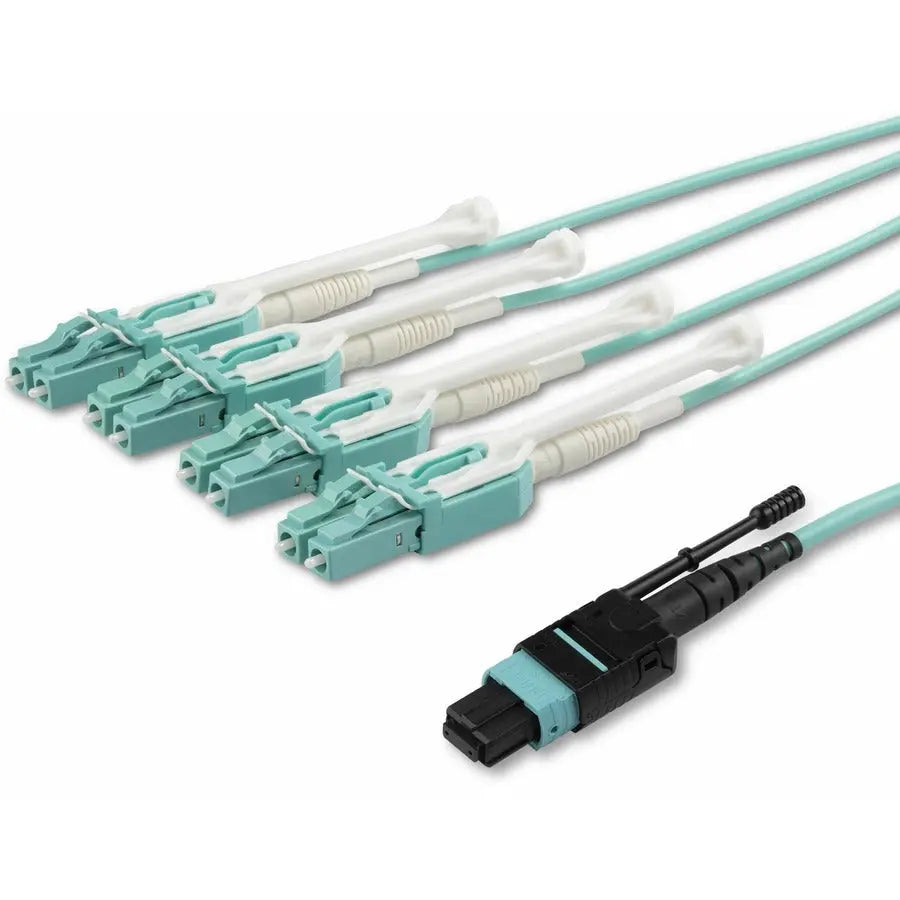

StarTech.com MPO8LCPL5M 5m (16.4ft) OM3 Multimode Fiber Optic Breakout Cable with MTP to 4 LC Connectors

StarTech 5m (16.4ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, 40G, Low Insertion Loss, Fiber Jumper Cord

The StarTech.com MPO8LCPL5M fiber optic breakout cable provides a reliable solution for high-density networking environments. Designed with a plenum-rated OFNP jacket, this 5-meter (16.4-foot) OM3 multimode fiber cable supports data transfer speeds up to 40Gbps, making it ideal for SANs, data servers, and QSFP+ transceiver applications. The cable features a single MTP(F)/PC connector on one end that fan outs into four duplex LC/PC connectors, allowing seamless connection from a 40GBase-SR4 QSFP+ module to multiple SFP+ transceivers. Its slim, space-saving uniboot design improves cable management and facilitates installation in tight spaces. Each cable is individually tested for insertion loss and return loss, ensuring signal integrity and reliable performance. Included test reports offer added assurance of quality and compliance. The rugged construction and low-smoke OFNP jacket make this cable suitable for in-wall and riser installations, meeting fire safety requirements. The 50/125 micron fiber core is immune to electromagnetic interference, ensuring consistent, high-quality data transmission. The MTP push-pull tabs with flexible extensions enable quick and tool-free connector engagement and disconnection, reducing installation time and effort. This fiber optic patch cable is backed by a lifetime warranty, reflecting its durability and the manufacturer's confidence in its performance. Whether upgrading existing fiber infrastructure or deploying new high-speed networks, this StarTech.com breakout cable offers a dependable, space-efficient solution for demanding data center and enterprise applications.

Features:

• SPECS: 5m (16.4ft); Color: Aqua (OM3); Supports 40 Gbps data transfer; MTP(F)/PC to 4x Duplex LC/PC breakout; Operates at 850nm or 1300nm with VCSEL technology; Modal bandwidth of 2000MHz/km at 850nm; Cable outer diameter of 3.0mm (MTP) and 2.0mm (LC); Insertion loss of 0.5dB (MTP) and 0.2dB (LC)

• Compatibility: Supports high-density network applications including SANs, data servers, and QSFP+ transceivers; Connects a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers for versatile fiber deployment

• Ratings and Reliability: Individually tested for optimal signal integrity; Includes test reports; Rated for plenum and in-wall installations; Low insertion loss maintained by PC-polished MTP and LC connectors

• Quality Construction: OFNP jacket emits low smoke and fumes if combusted; 50/125 micron fiber core/cladding immune to EMI; MTP push-pull tabs with flexible extensions for easy installation and removal

• OM3 Fiber Cable: MTP(F)/PC to 4x LC/PC duplex multimode fiber cable supporting 40Gbps; Designed for efficient fan-out and high-speed data transmission
