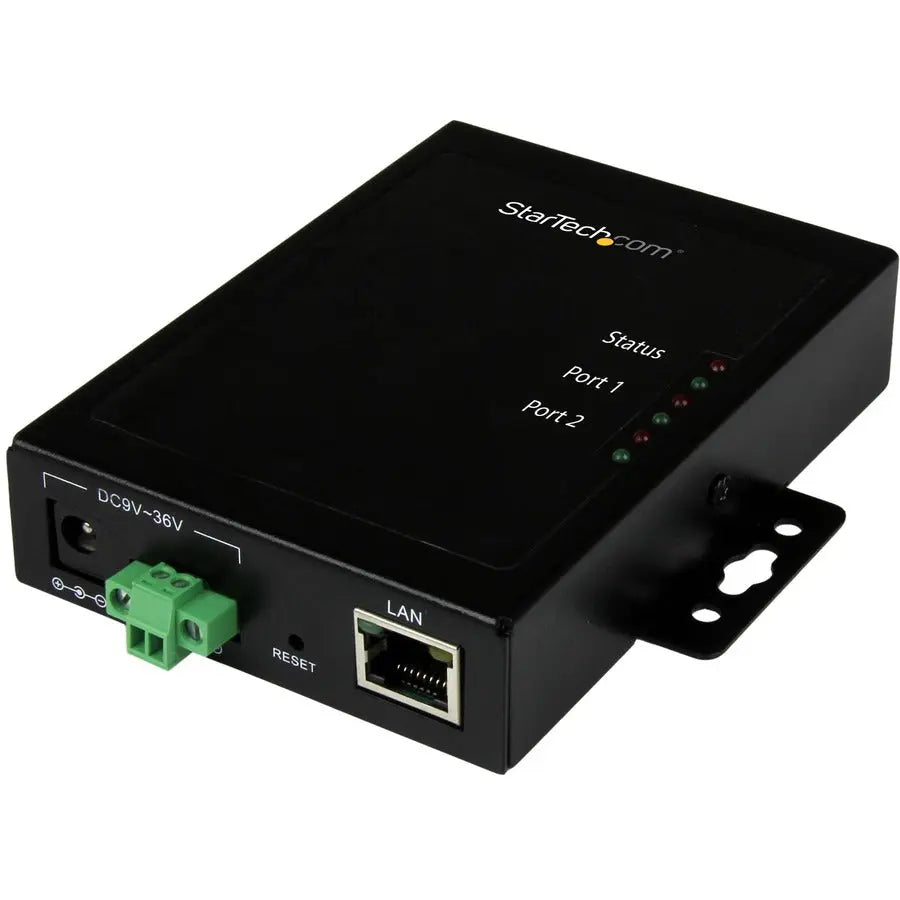

StarTech.com NETRS2322P 2-Port Serial-to-IP Ethernet Device Server - RS232, Metal, Wall Mountable

StarTech 2 Port Serial-to-IP Ethernet Device Server, RS232, Metal and Mountable, Serial Device Server, TAA

The StarTech.com NETRS2322P is a robust 2-port serial device server designed for industrial and factory environments, enabling remote connection and management of two RS232 serial devices over IP networks. Encased in a durable metal housing, this device server supports extended operating temperatures from 0°F to 185°F, ensuring reliable performance even under harsh conditions. Its rugged construction, combined with built-in mounting brackets, allows flexible installation on walls or surfaces, making it suitable for various industrial settings. The device features two serial ports with DB9 connectors, capable of supporting baud rates up to 460.8Kbps, providing high-speed data transfer for serial communication applications. It supports 10/100Mbps Ethernet connectivity via an RJ45 port that complies with IEEE 802.3 and IEEE 802.3u standards, ensuring seamless integration into existing network infrastructure. Additionally, the NETRS2322P offers comprehensive electrostatic discharge protection (15kV air, 8kV contact), safeguarding sensitive electronics during operation. The device supports multiple protocols including Telnet, ICMP, IP, TCP, UDP, DHCP, HTTP, and BOOTP, offering versatile remote management options. It includes redundant power inputs—either through the provided universal power adapter or via a 9-36V DC terminal block—ensuring continuous operation during power fluctuations or failures. Easy configuration is facilitated through a Windows-based Virtual COM port software or a web-based interface, enabling quick setup and customization across Windows, Mac, and Linux environments (though Virtual COM software is Windows-only). The device’s environmental resilience and flexible management capabilities make it ideal for industrial control, automation, and remote device management applications. Backed by a two-year warranty and lifetime technical support from StarTech.com, the NETRS2322P provides a reliable, versatile solution for serial device networking needs.

Features:

• 10/100Mbps RJ45 port supports IEEE 802.3 and IEEE 802.3u protocols

• 15kV Air and 8kV contact electrostatic discharge (ESD) protection

• Supports Telnet, ICMP, IP, TCP, UDP, DHCP, HTTP, and BOOTP protocols

• Remote management and configuration via Windows VCOM software or web interface

• Serial baud rate up to 460.8Kbps for high-speed data transfer

• Extended operating temperature range from 0°F to 185°F (0°C to 85°C)

• Redundant power inputs supporting universal adapter or 9-36V DC terminal block

• Built-in mounting brackets allow easy wall or surface installation

• Dual RS232 serial ports with durable metal housing suitable for industrial environments
